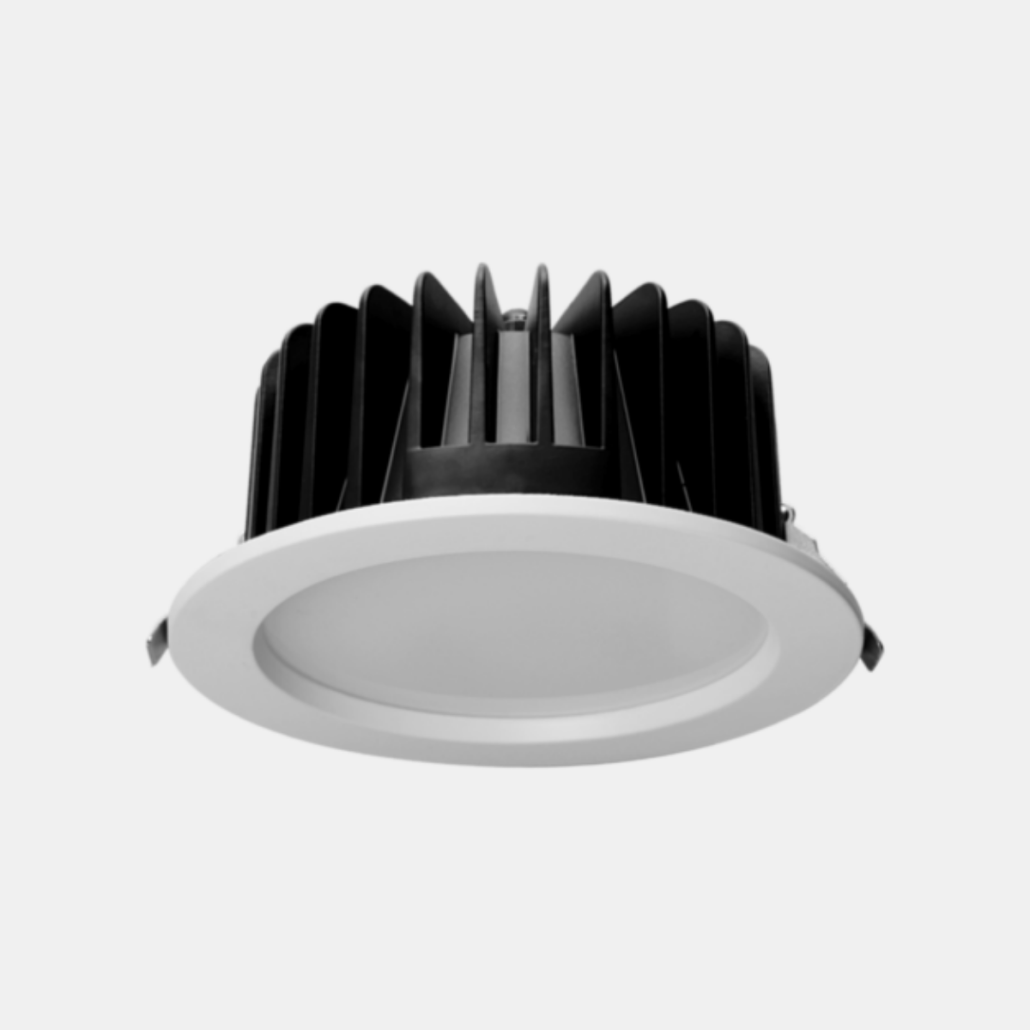

DLD Commercial Die-Cast Aluminum Recessed Downlight 16-45W
Product Number: DLD04-A/DLD06-A/DLD08-A
Product Details
Description
The KWT DLD Commercial Series is engineered for maximum operational efficiency across diverse commercial environments. Covering 16W to 45W across three models (DLD04-A, DLD06-A, DLD08-A) with large Ø125-215mm cutouts, this commercial downlight uses a durable die-cast aluminum frame for extended lifespan. Its fixed 87-degree beam angle and deep anti-glare optics provide uniform illumination in high-traffic retail environments. With a high efficacy exceeding 120lm/W and universal AC100-240V input, it significantly lowers installation labor, inventory complexity, and long-term electricity costs for large commercial complexes.
Contact us for project pricing or OEM samples.
Specification
| DLD Commercial Die-Cast Aluminum Recessed Downlight 16-45W | |||
| Product code | DLD04-A | DLD06-A | DLD08-A |
| Power | 16/20/25W | 18/25/32W | 25/32/45W |
| Size | D145*H92mm | D200*H110mm | D230*H118mm |
| Cut out | 125mm | 175mm | 215mm |
| Beam angle | 87° | 87° | 87° |
| Voltage | 220-240VAC | ||
| Lumen output | Lamp lumen 120Lm/W | ||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee | ||
| Optics | Reflector | ||
| LED brand | CITIZEN / CREE | ||
| CRI | CRI90+ | ||
| Color Saturation | Rg=99 | ||
| SDCM | <3 | ||
| Materials | Die cast Aluminum | ||
| Installation | Recessed | ||
| Protection | IP20 | ||
| Finish | White / Black (Customizable) | ||
| Warranty | 3 years | ||
Size and drawing
Accessories
Datasheet
