BDL IP65 Trimmed Anti-glare Downlight Series 10-30W

Product Number: BDL5510/BDL7512/BDL7520/BDL9530

Product Details

Description

The KWT Circular IP65 Trimmed Commercial Series is engineered for high-density commercial lighting layouts. Covering 10W to 30W across four models, this commercial downlight uses a durable die-cast aluminum trimmed frame for quick, fault-tolerant installation. Its deep anti-glare design (UGR<11) ensures visual comfort in high-traffic retail environments, while the IP65 waterproof structure allows safe deployment in demanding wet zones like parking garages and food courts. With modular onsite interchangeable 15/24/38/50-degree lenses and >90Lm/W efficacy, it significantly lowers installation labor, inventory costs, and long-term maintenance expenses.

Specification

BDL IP65 Trimmed Anti-glare Downlight Series 7-30W
Product code	BDL5510	BDL7512	BDL7520	BDL9530
Power	10W	12W	20W	30W

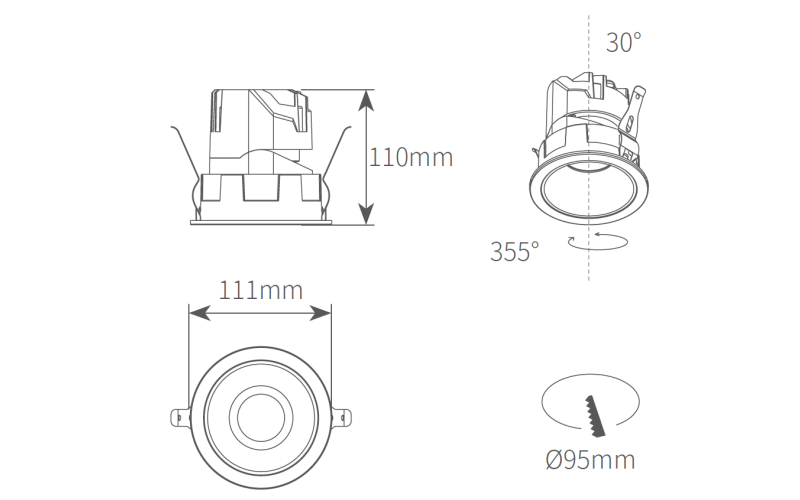

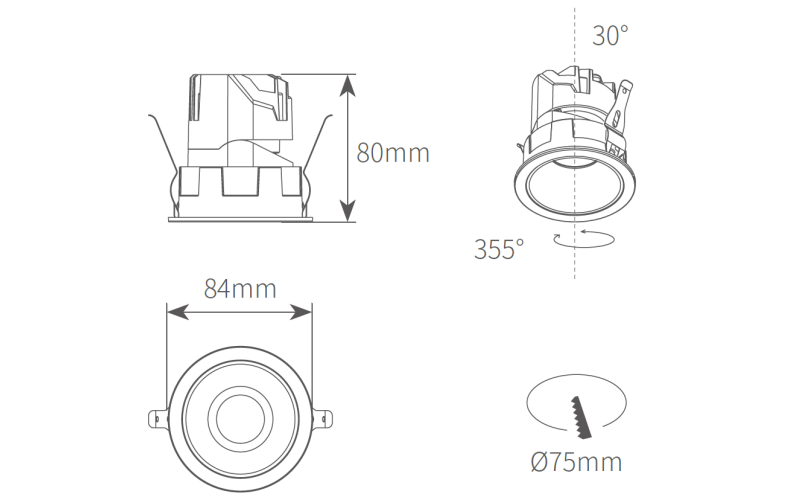

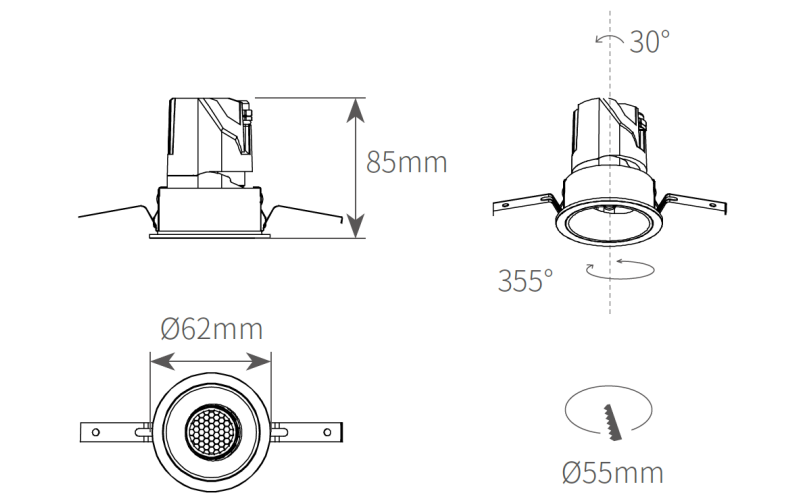

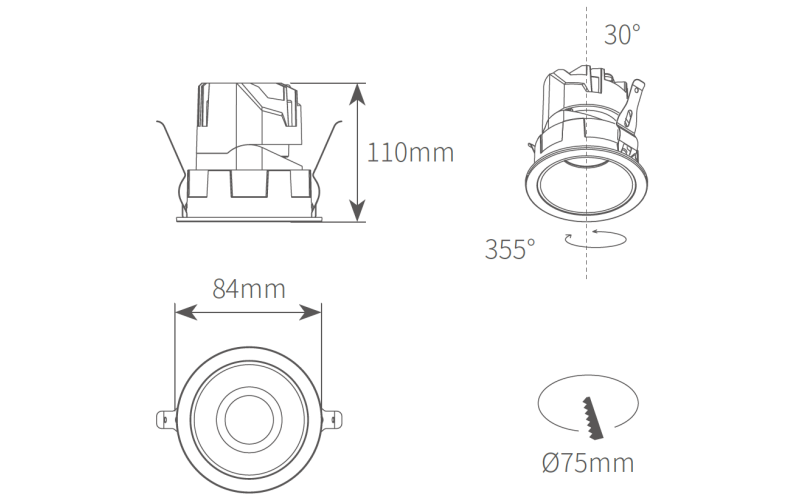

Size	D62**H85mm	D84*H80mm	D84*H110mm	D111*H110mm
Cut out	55mm	75mm	75mm	95mm
Beam angle	15°/24°/38°/50°	15°/24°/38°/50°	15°/24°/38°/50°	15°/24°/38°/60°
Voltage	220-240VAC
Lumen output	Lamp lumen 100Lm/W
CCT	2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
Dimmable	ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee
Optics	Reflector / Lens
LED brand	CITIZEN / CREE
CRI	CRI90+, CRI97+
Color Saturation	Rg=99
SDCM	<3
Materials	Die cast Aluminum
Installation	Recessed
Protection	IP65
Finish	White / Black (Customizable)
Warranty	5 years
