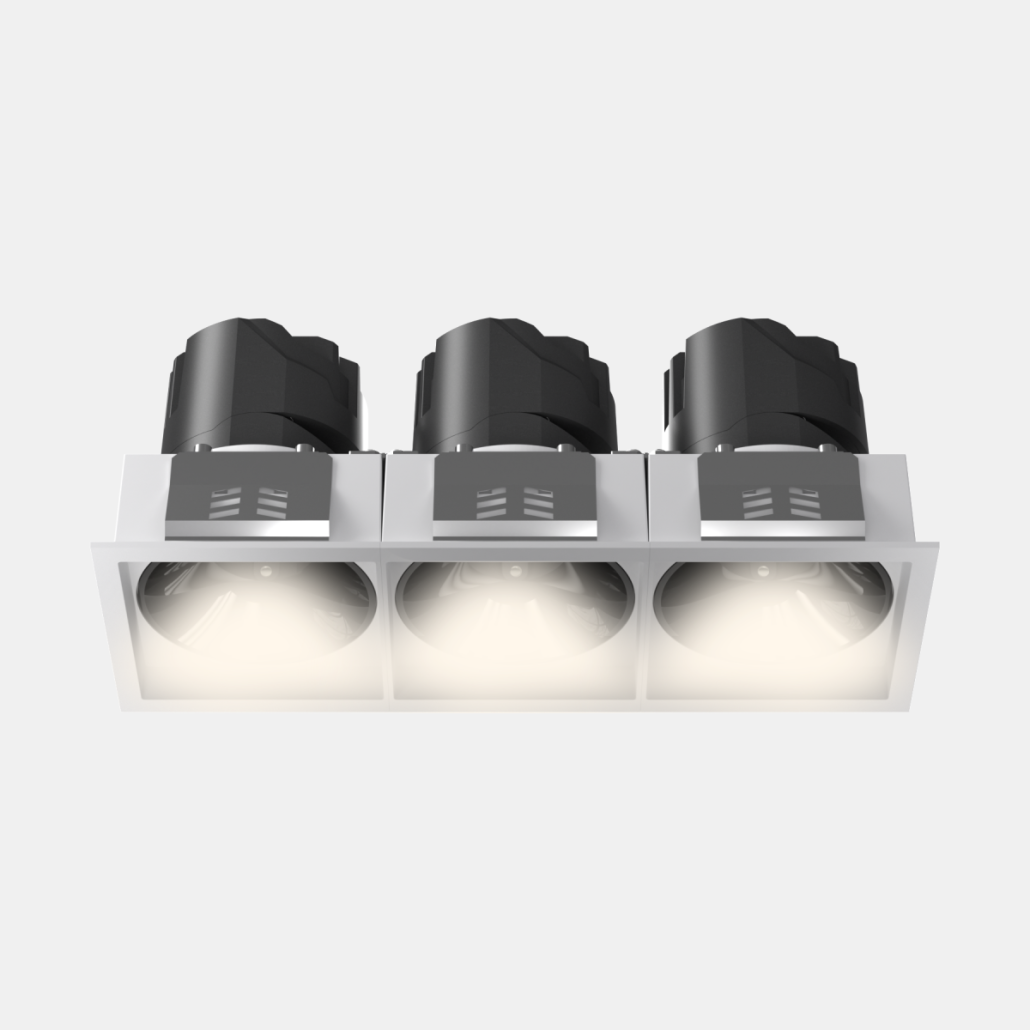

3-Head IP65 Modular Commercial Linear Downlight Series


Product Number:   BDL1655530 /BDLS2257560 /BDLS2859590


Product Details

Description

The KWT 3-Head IP65 Modular Commercial Series is engineered for the most demanding commercial and industrial environments. Covering 30W to 90W across three models, this heavy-duty linear downlight combines three high-output engines within a single IP65 waterproof platform. It delivers exceptional resilience against dust, moisture, and high-pressure washdowns, making it ideal for cold storage, food processing areas, and underground parking garages. The modular optical system allows rapid onsite swapping of 18/25/36/50-degree lenses, streamlining inventory management. With high efficacy >90Lm/W and AC200-240V input, it minimizes energy consumption and dramatically reduces maintenance costs in hard-to-reach industrial ceilings.

Contact us for project pricing or OEM samples.

Specification

3-Head IP65 Modular Commercial Linear Downlight Series
Product codeBDL1655530BDLS2257560BDLS2859590
Power3*10W3*20W3*30W
SizeL171*W64*H78mmL232*W85*H91mmL292*W105*H146mm
Cut out55*170mm75*230mm95*285mm
Beam angle18°/25°/36°/50°18°/25°/36°/50°15°/24°/38°/60°
Voltage220-240VAC
Lumen outputLamp lumen 100Lm/W
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
DimmableON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsReflector / Lens
LED brandCITIZEN / CREE
CRICRI90+, CRI97+
Color SaturationRg=99
SDCM<3
MaterialsDie cast Aluminum
InstallationRecessed
ProtectionIP65
FinishWhite / Black (Customizable)
Warranty5 years

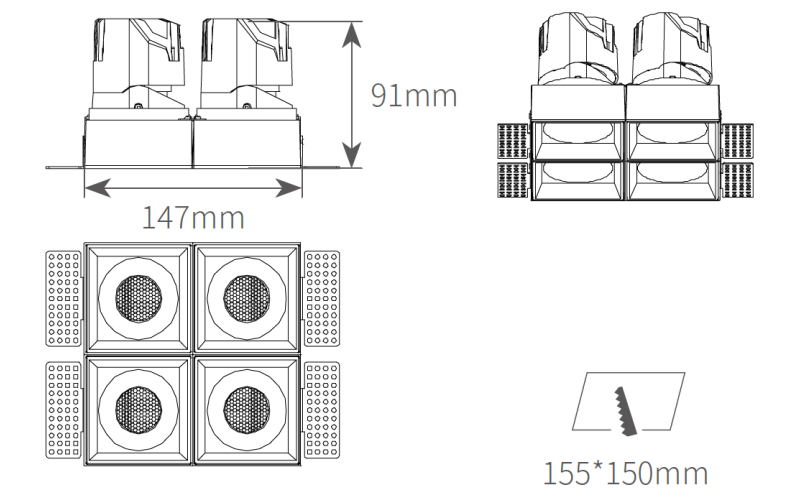

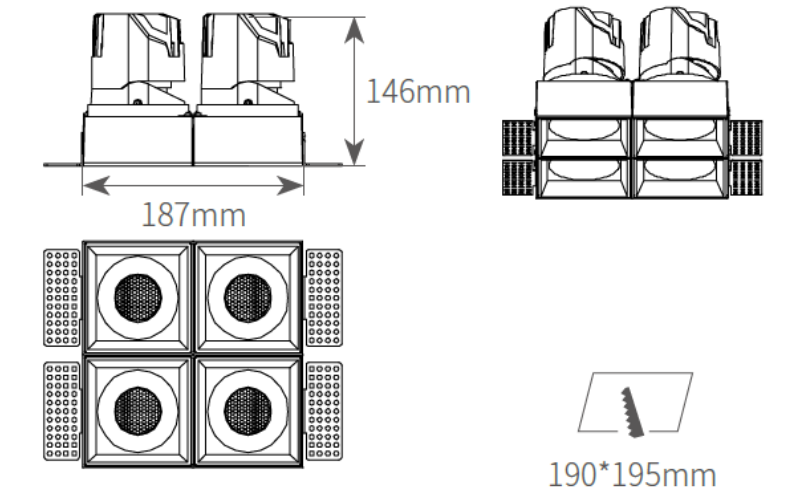

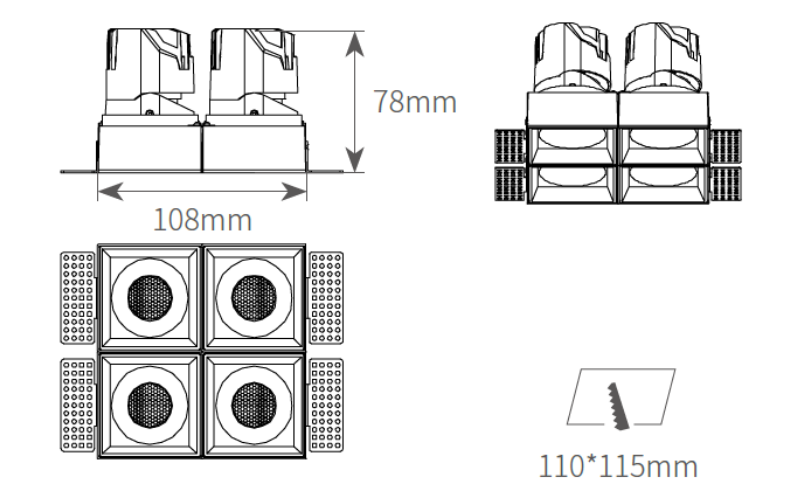

Size and drawing

Accessories

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
