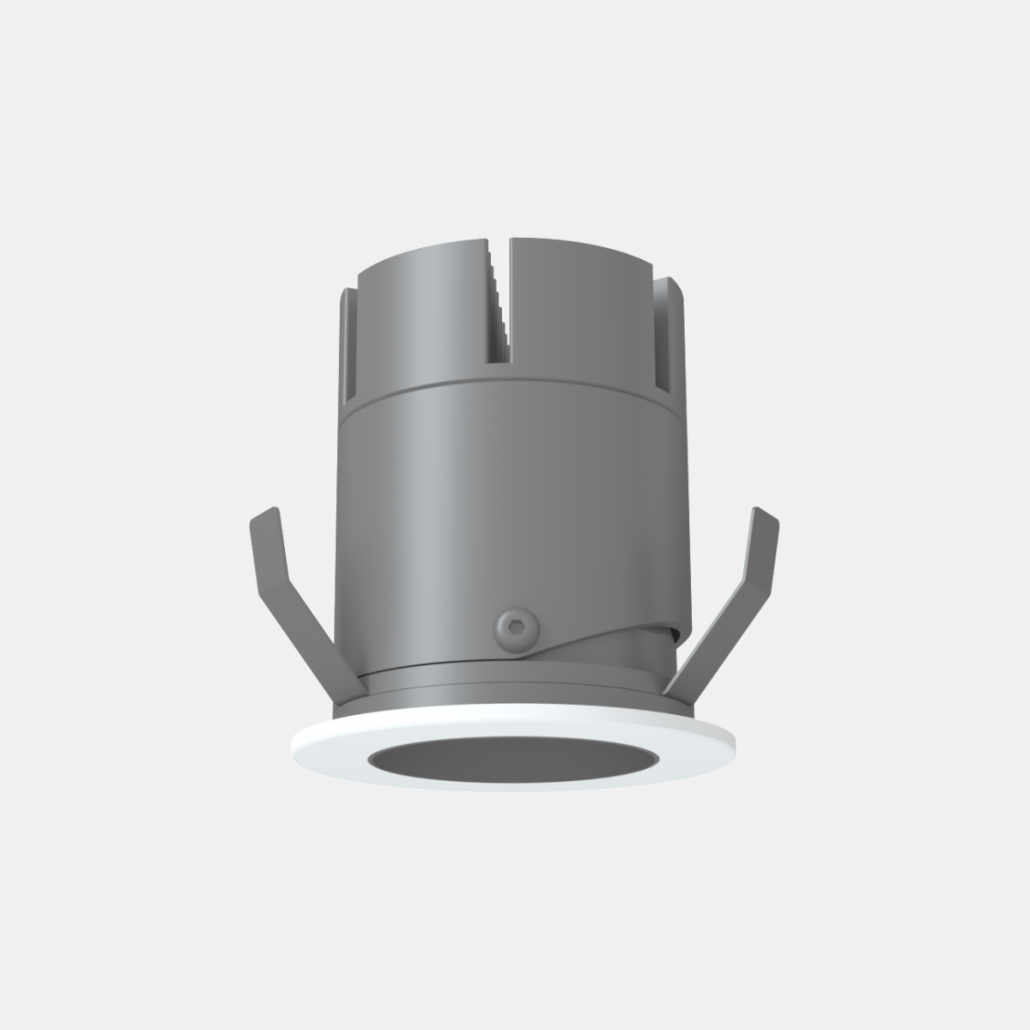

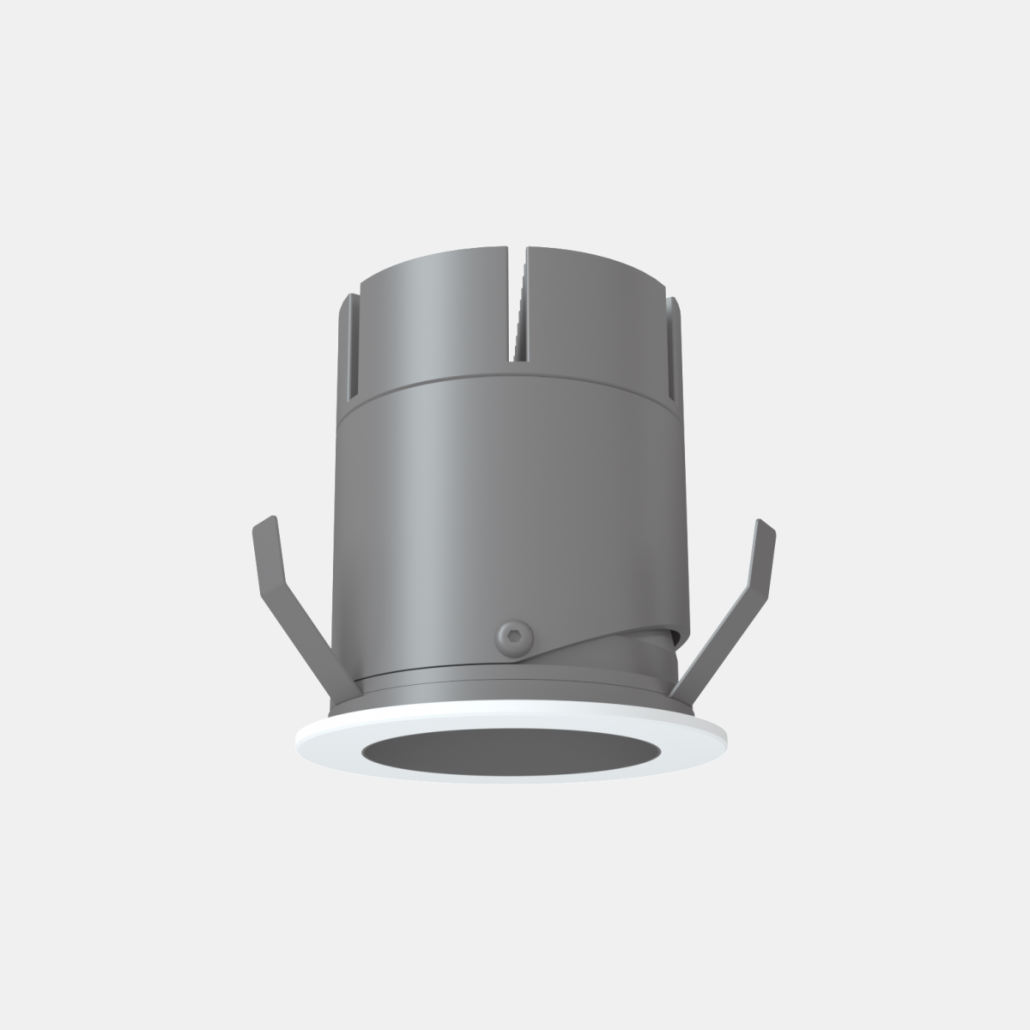

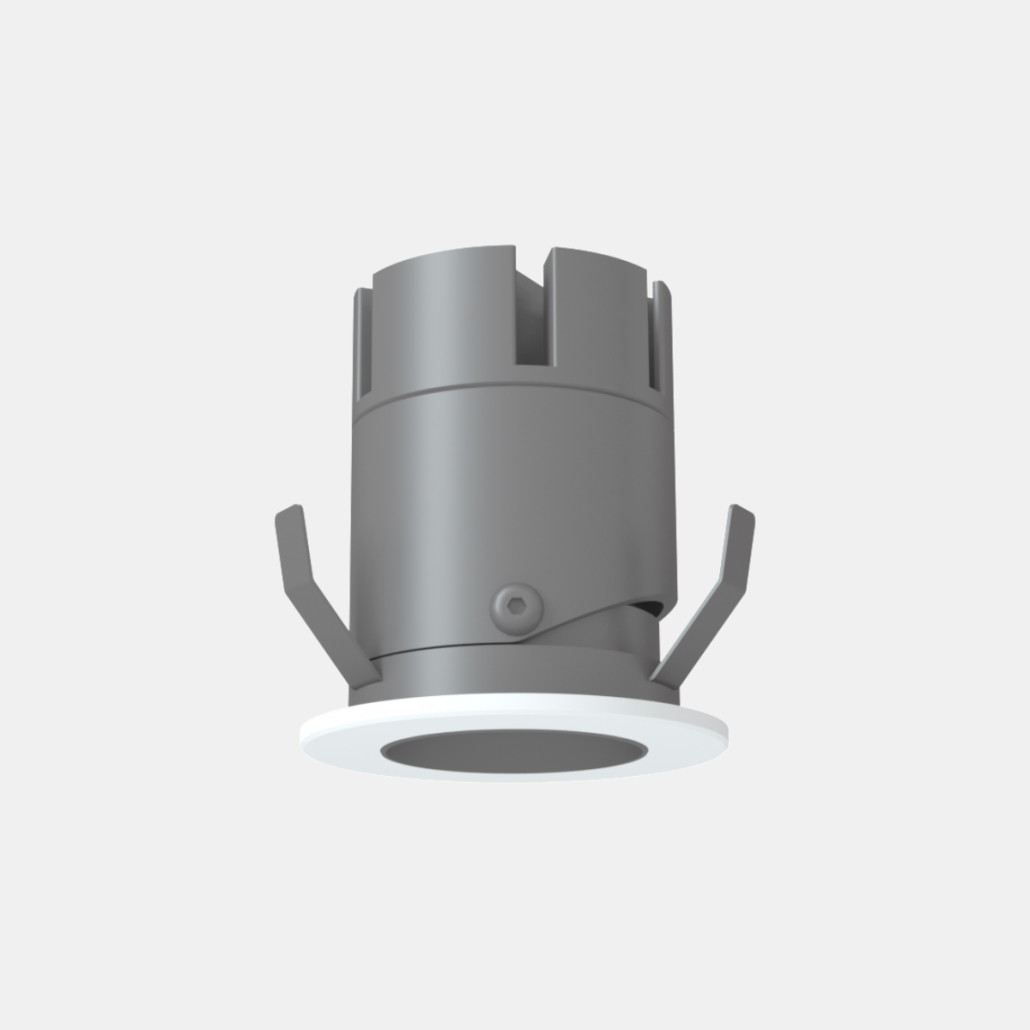

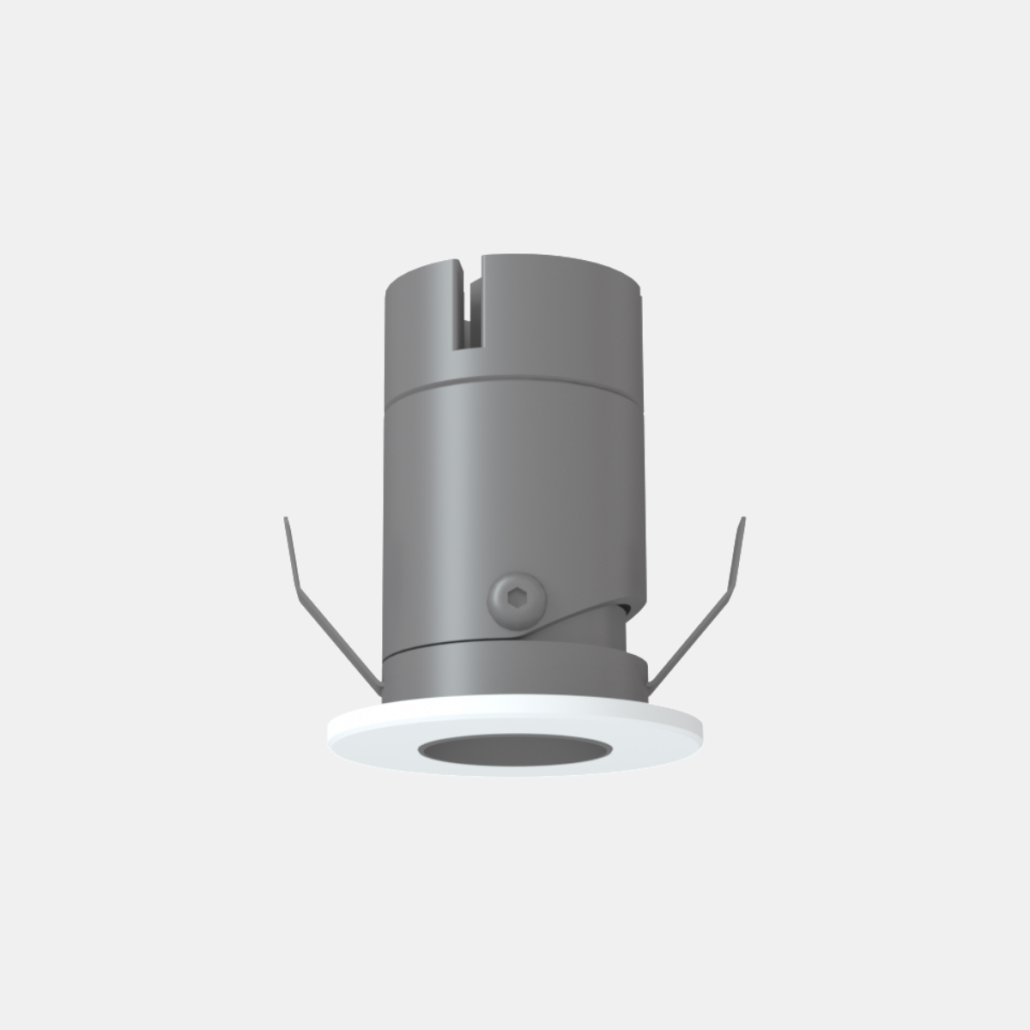

HDM Commercial Mini Recessed Downlight 1-18W

Product Number: HDM3007G/HDM4010G/HDM5012G/HDM6018G

Product Details

Description

The KWT HDM Mini Commercial Series is engineered for maximum operational efficiency and precise lighting control in dense commercial layouts. Covering 1W to 18W across four models (HDM3007G to HDM6018G), this commercial downlight uses ultra-compact Ø30-60mm cutouts to minimize ceiling disruption. Its UGR<11 deep anti-glare optics ensure visual comfort in high-traffic retail environments, while the die-cast aluminum structure allows for high-density installation without thermal issues. With >80lm/W efficacy and AC200-240V input, it significantly lowers installation labor, inventory complexity, and long-term electricity costs for large commercial chains.

Specification

HDM Commercial Mini Recessed Downlight 1-18W
Product code	HDM3007G	HDM4010G	HDM5012G	HDM6018G
Power	1W/3W/4W/5W/7W	10W	12W	15W/18W

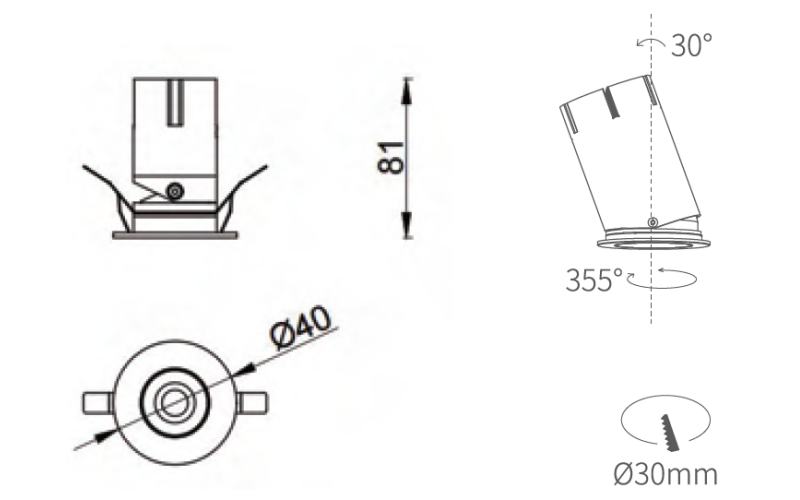

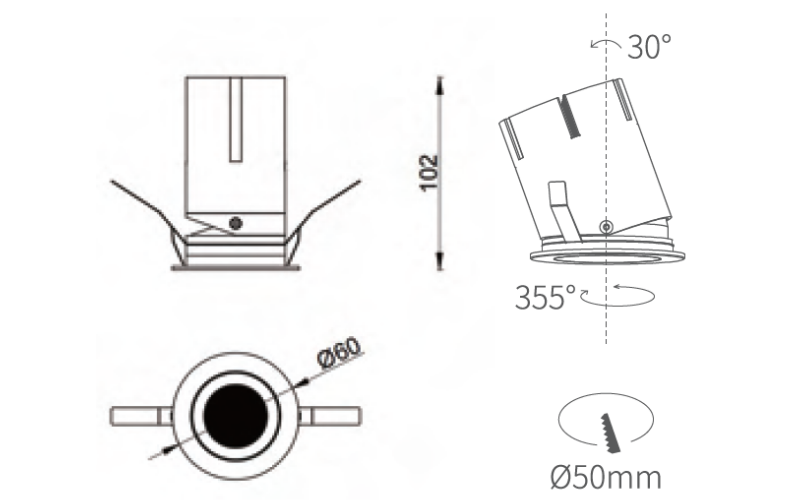

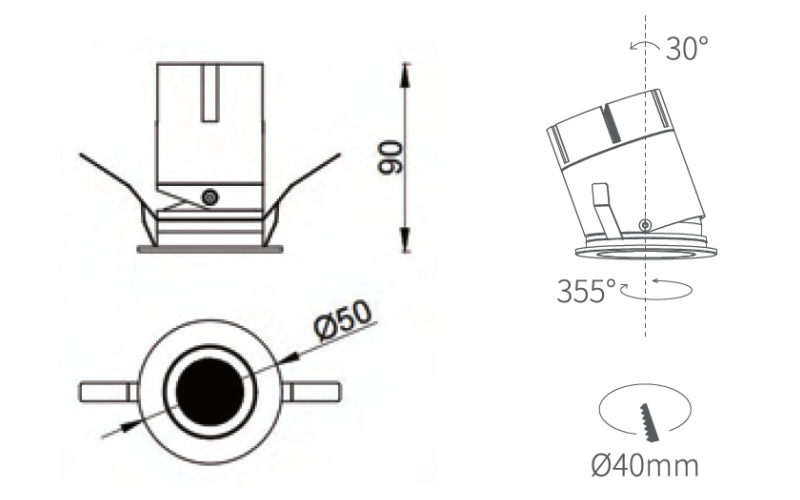

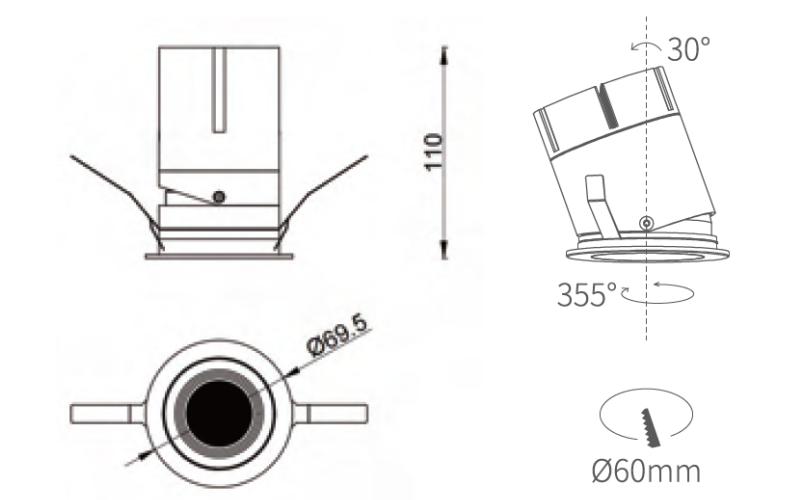

Size	D40*H81mm	D50*H90mm	D60*H102mm	D70*H110mm
Cut out	30mm	40mm	50mm	60mm
Beam angle	24°/36°	15°/24°/36°	15°/24°/36°	15°/24°/36°
Voltage	220-240VAC
Lumen output	Lamp lumen 80Lm/W
CCT	2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
Dimmable	ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee
Unified Glare Rating	UGR<11
LED brand	CITIZEN / CREE
CRI	CRI90+, CRI97+
Color Saturation	Rg=99
SDCM	<3
Materials	Die cast Aluminum
Installation	Recessed
Protection	IP20
Finish	White / Black (Customizable)
Warranty	5 years
