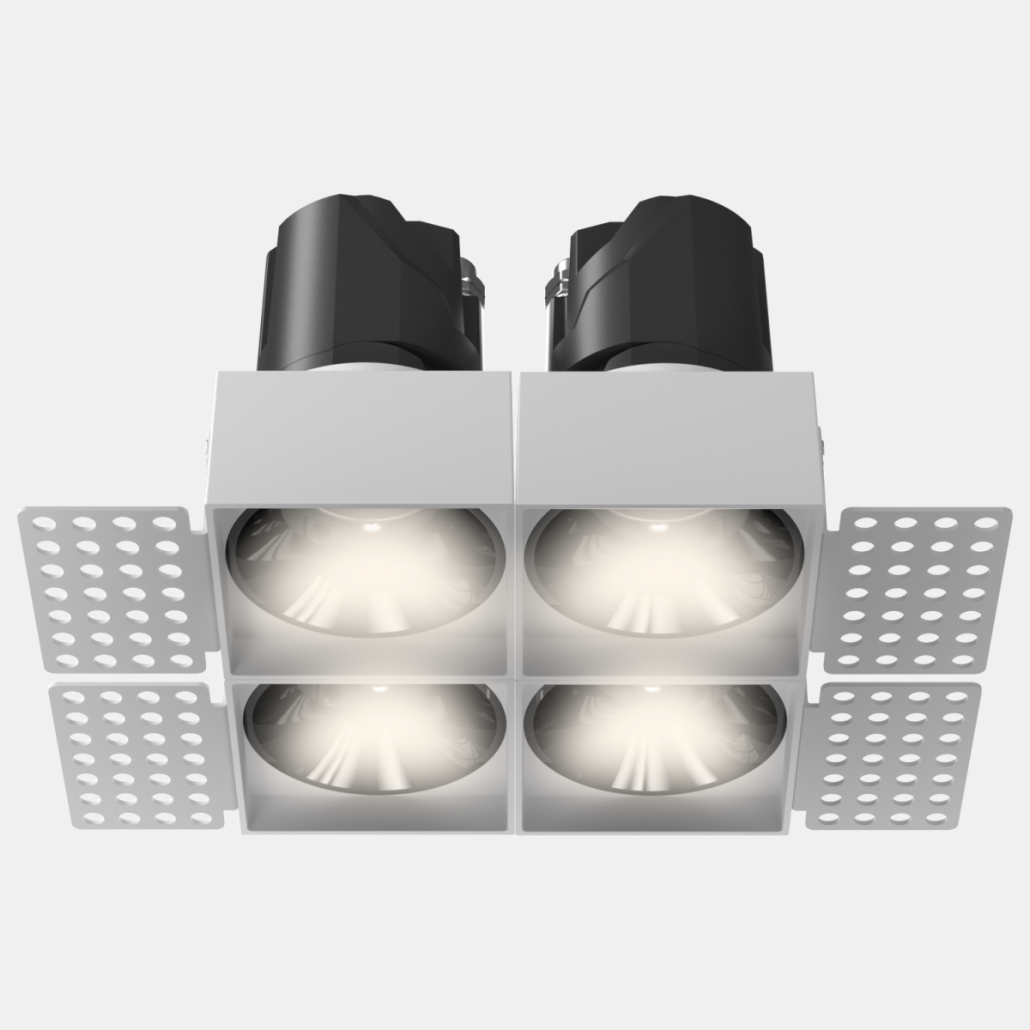

4-Head Trimless IP65 Modular Recessed Downlight Series 40-120W
Product Number: BDL11011040-TR/BDLS15015080-TR/BDLS19191120-TR
Product Details
Description
The KWT 4-Head Trimless IP65 Modular Series is a high-efficiency commercial downlight family designed for large-scale deployment. Spanning the 40W BDL11011040-TR, 80W BDLS15015080-TR, and 120W BDLS19191120-TR models, this commercial downlight series utilizes a modular optical system that supports 15, 24, 36, and 50 degree lenses. Its die-cast aluminum structure is fully sealed to an IP65 waterproof rating, effectively preventing moisture damage in wet commercial environments. With high efficacy >90Lm/W, Ra>90/97, and standard AC200-240V input, it dramatically reduces long-term electricity and maintenance costs for commercial retailers, supermarkets, and high-traffic commercial zones.
Contact us for project pricing or OEM samples.
Specification
| 4-Head Commercial Modular IP65 Recessed Downlight 40-120W | |||
| Product code | BDL11011040-TR | BDLS15015080-TR | BDLS19191120-TR |
| Power | 4*10W | 4*20W | 4*30W |
| Size | L108*W108*H78mm | L147*W147*H91mm | L187*W187*H146mm |
| Cut out | 110*115mm | 150*150mm | 190*195mm |
| Beam angle | 18°/25°/36°/50° | 18°/25°/36°/50° | 18°/24°/38°/60° |
| Voltage | 220-240VAC | ||
| Lumen output | Lamp lumen 100Lm/W | ||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee | ||
| Optics | Reflector / Lens | ||
| LED brand | CITIZEN / CREE | ||
| CRI | CRI90+, CRI97+ | ||
| Color Saturation | Rg=99 | ||
| SDCM | <3 | ||
| Materials | Die cast Aluminum | ||
| Installation | Recessed | ||
| Protection | IP65 | ||
| Finish | White / Black (Customizable) | ||
| Warranty | 5 years | ||
