BDLS9530-TR 30W Waterproof Commercial Trimless Light
Product Number: BDLS9530-TR
Product Details
Description
The KWT BDLS9530-TR is a 30W commercial trimless downlight engineered for a seamless fit in high-end buildings. This commercial downlight features a waterproof sealed design that prevents condensation, paired with a modular optical system (15/24/36/60 degree). The modular structure allows for rapid onsite interchangeability and standardized production. With high efficacy (>100lm/W) and Ra>90, this downlight provides an energy-efficient, elegant lighting solution for demanding corporate environments prone to moisture.
Contact us for project pricing or OEM samples.
Specification
| BDLS9530-TR 30W Waterproof Commercial Trimless Light | |
| Product code | BDLS9530-TR |
| Power | 30W |
| Voltage | 220-240VAC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |
| Cut-out | 95*100mm |
| Size | 94*94*146mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 15°/25°/35°/60° |
| CRI | CRI90+, CRI97+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Lens/Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 100lm/W |
| Materials | Die cast aluminum |
| Installation | Recessed Mounted |
| Protection | IP65 |
| Finish | White/Black |
| Warranty | 5 years |

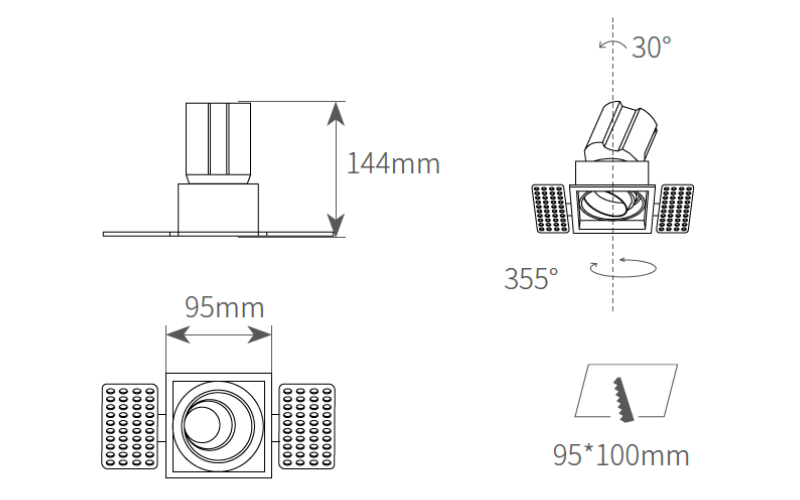

Size and drawing
