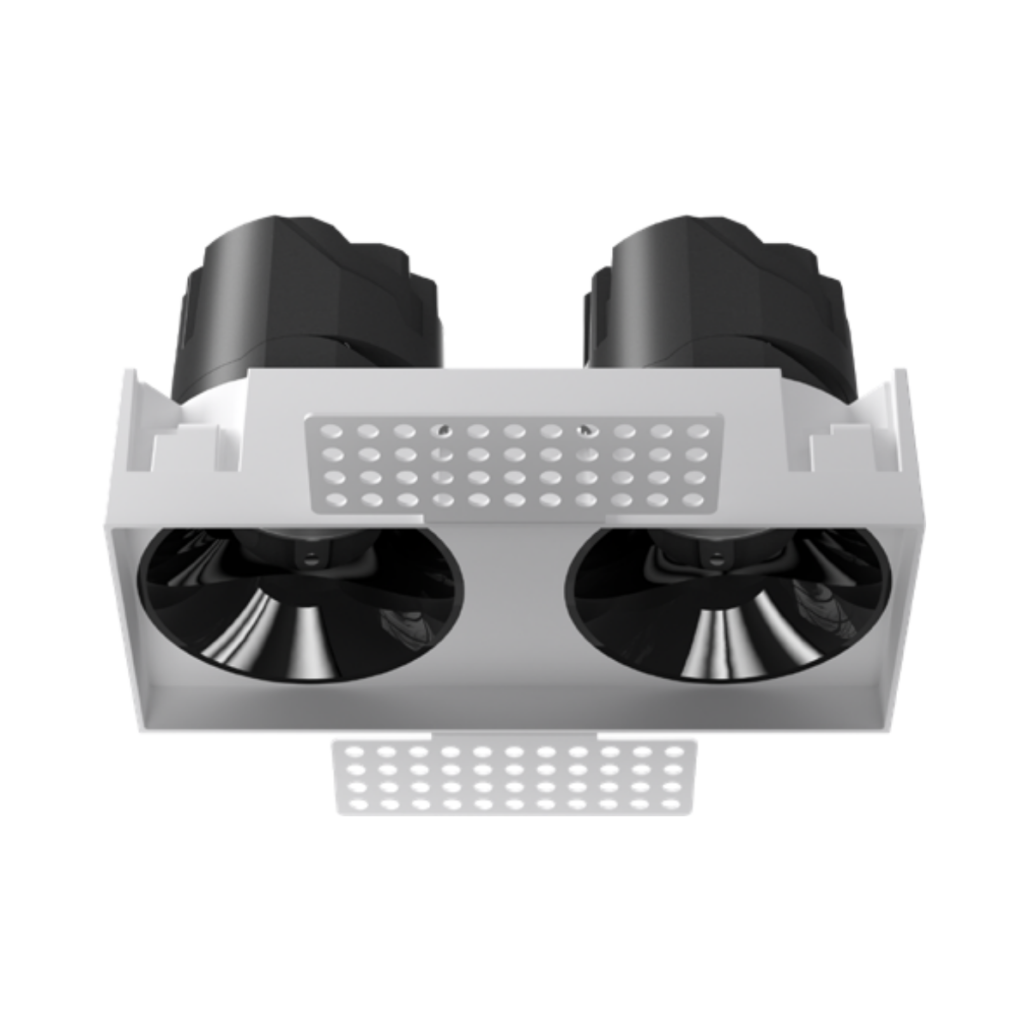

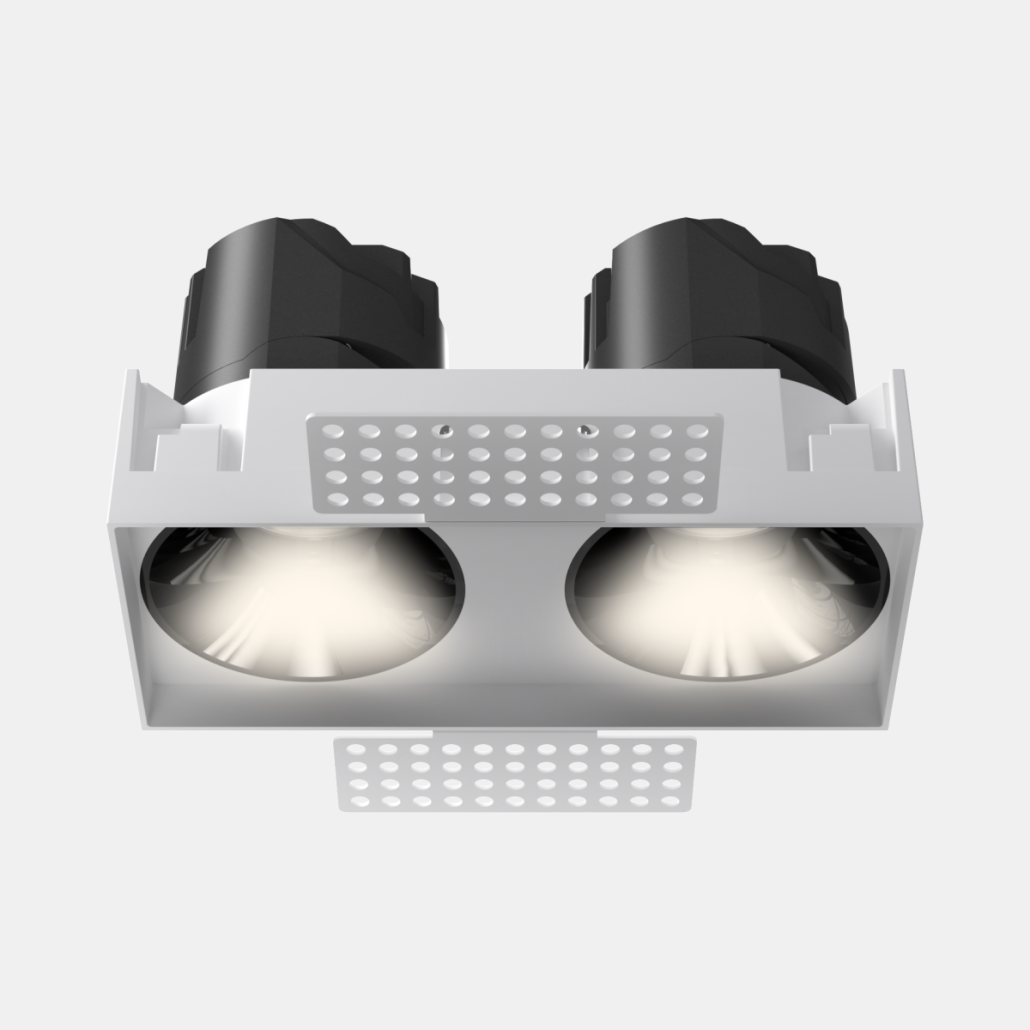

2-Head IP65 Trimmed Commercial Downlight Series 20-60W
Product Number: BDL1105520-TR/ BDLS1507540-TR/ BDLS1909560-TR
Product Details
Description
The KWT 2-Head IP65 Trimmed Commercial Series is engineered for robust performance in demanding commercial facilities. Covering 20W to 60W across three models, this heavy-duty downlight uses a secure trimmed frame for quick, fault-tolerant installation in standard cutouts. The fully sealed IP65 structure resists moisture, dust, and high-pressure washdowns, making it perfect for parking garages, cold storage, and food processing zones. The modular optical platform allows rapid onsite swapping of 18/25/36/50-degree lenses, simplifying inventory management. With high efficacy >90Lm/W and DALI/Triac dimming, it delivers significant energy savings and reduces long-term maintenance costs.
Contact us for project pricing or OEM samples.
Specification
| 2-Head IP65 Trimmed Commercial Downlight Series 20-60W | |||
| Product code | BDL1105520-TR | BDLS1507540-TR | BDLS1909560-TR |
| Power | 2*10W | 2*20W | 3*30W |
| Size | L116*W65*H75mm | L163*W81*H91mm | L207*W93*H142mm |
| Cut out | 60*125mm | 75*155mm | 100*210mm |
| Beam angle | 18°/25°/36°/50° | 18°/25°/36°/50° | 15°/24°/38°/60° |
| Voltage | 220-240VAC | ||
| Lumen output | Lamp lumen 100Lm/W | ||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee | ||
| Optics | Reflector / Lens | ||
| LED brand | CITIZEN / CREE | ||
| CRI | CRI90+, CRI97+ | ||
| Color Saturation | Rg=99 | ||
| SDCM | <3 | ||
| Materials | Die cast Aluminum | ||
| Installation | Recessed | ||
| Protection | IP65 | ||
| Finish | White / Black (Customizable) | ||
| Warranty | 5 years | ||

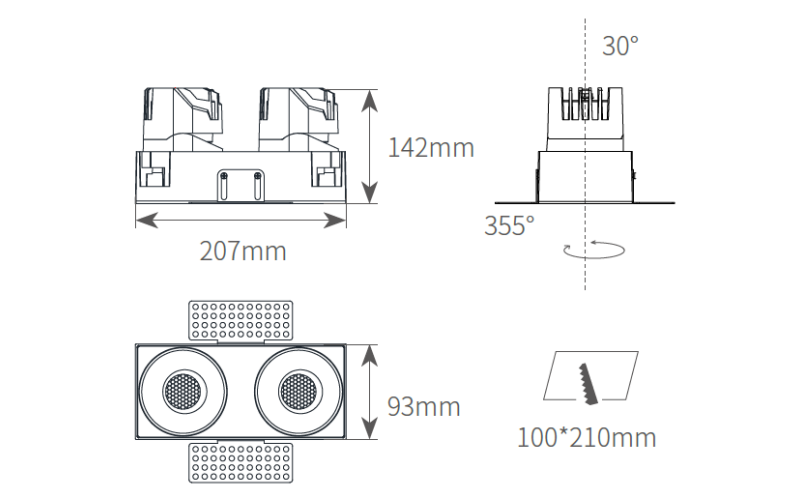

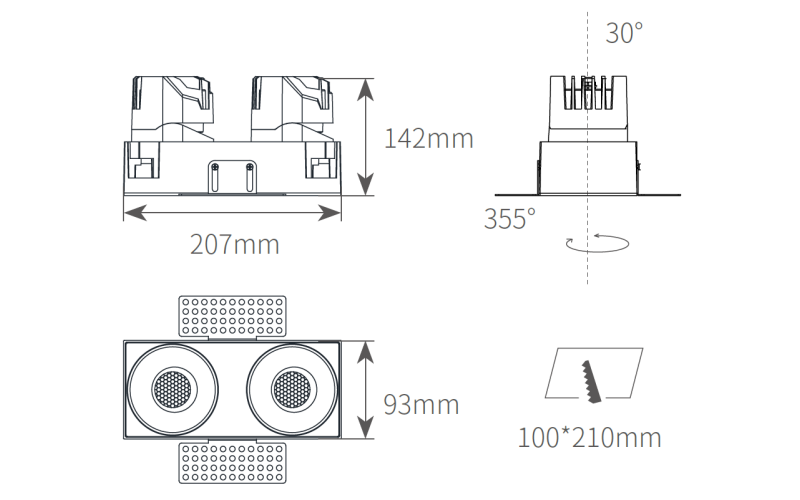

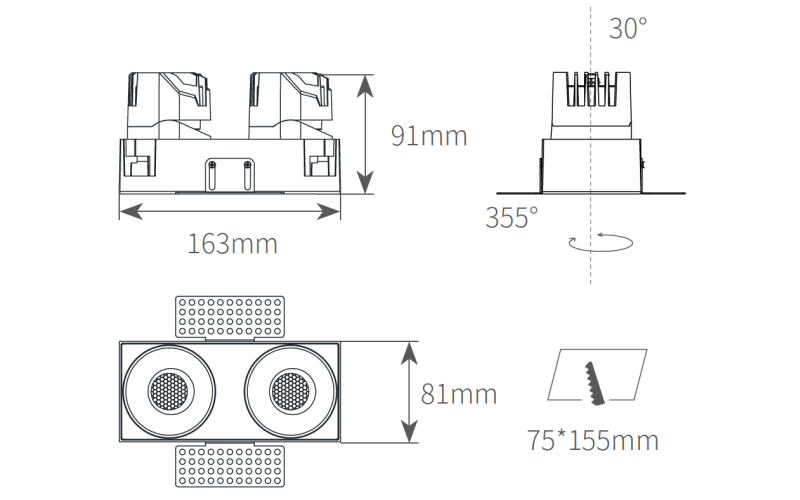

Size and drawing
