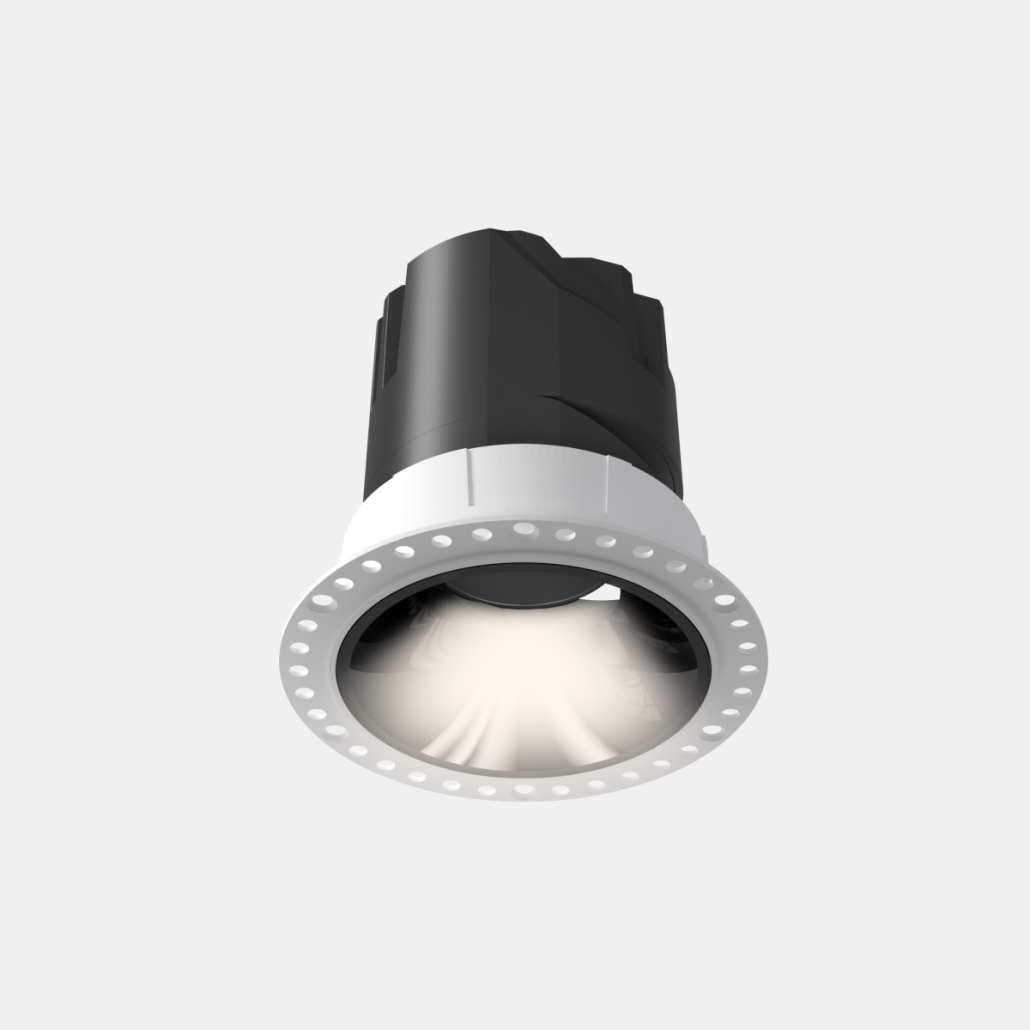

BDL Circular IP65 Trimless Commercial Downlight 10-30W

Product Number: BDL5510-TR/BDL7512-TR/BDL7520-TR/BDL9530-TR

Product Details

Description

The KWT Circular IP65 Integrated Commercial Series is engineered for demanding wet environments requiring a seamless aesthetic. Covering 10W to 30W across four models, this commercial downlight utilizes a robust integrated trimmed housing to minimize ceiling cutouts while delivering powerful illumination. Its deep anti-glare design (UGR<11) ensures visual comfort in high-traffic commercial environments, while the IP65 waterproof structure allows deployment in demanding wet zones. With modular onsite interchangeable 15/24/38/50-degree lenses and >90Lm/W efficacy, it significantly lowers installation labor, inventory costs, and long-term maintenance expenses for large commercial projects.

Specification

BDL Circular IP65 Trimless Commercial Downlight 10-30W
Product code	BDL5510-TR	BDL7512-TR	BDL7520-TR	BDL9530-TR
Power	10W	12W	20W	30W

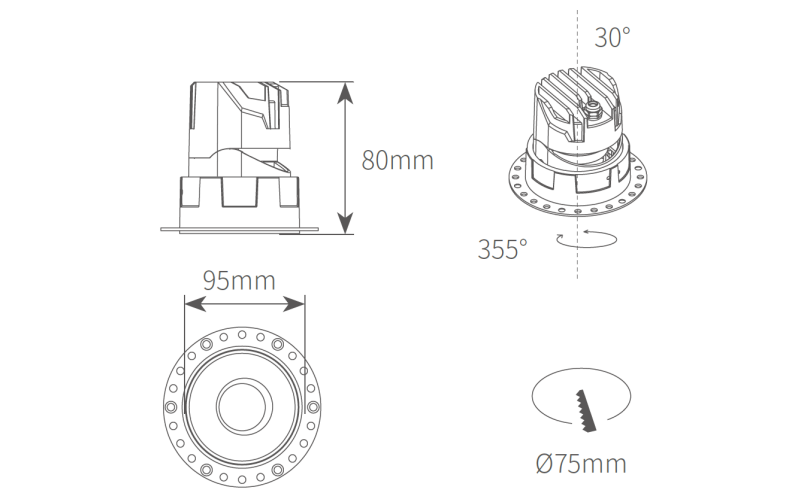

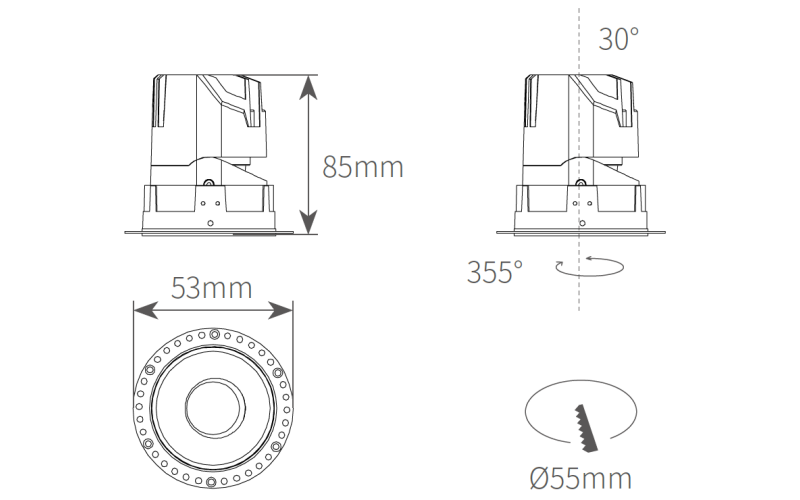

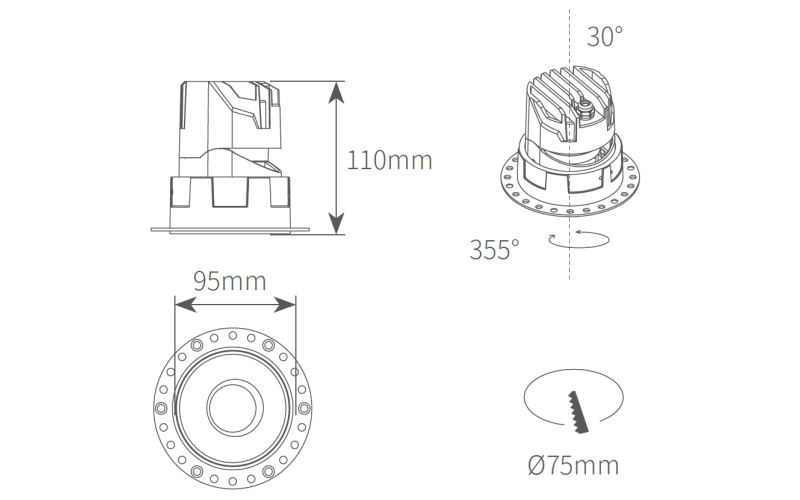

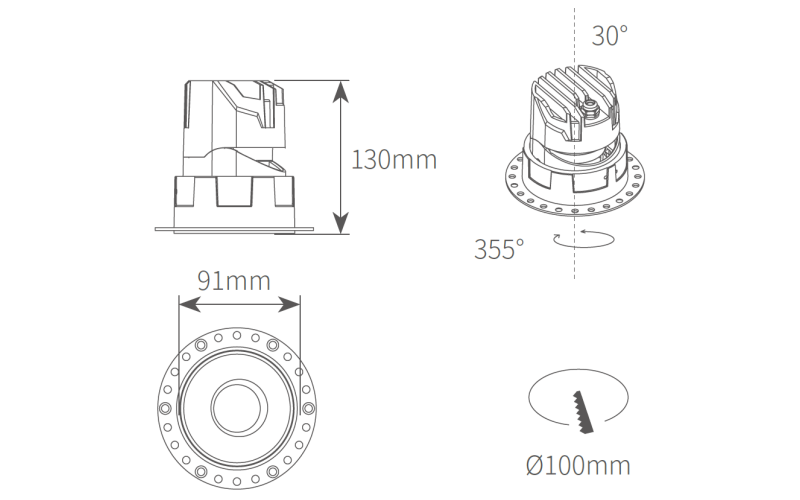

Size	D53*H85mm	D95*H80mm	D95*H110mm	D91*H130mm
Cut out	55mm	75mm	75mm	100mm
Beam angle	15°/24°/38°/50°	15°/24°/36°/50°	15°/25°/36°/50°	15°/24°/38°/60°
Voltage	220-240VAC
Lumen output	Lamp lumen 100Lm/W
CCT	2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
Dimmable	ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee
Optics	Reflector / Lens
LED brand	CITIZEN / CREE
CRI	CRI90+, CRI97+
Color Saturation	Rg=99
SDCM	<3
Materials	Die cast Aluminum
Installation	Recessed
Protection	IP65
Finish	White / Black (Customizable)
Warranty	5 years
