BDLS9530 30W Waterproof Commercial Modular Downlight
Product Number: BDLS9530
Product Details
Description
The KWT BDLS9530 is a 30W commercial modular downlight engineered for high-lumen wet zones. With a modular lens system, this commercial downlight allows contractors to swap between 15/24/36/60 degree beams onsite, drastically reducing inventory SKUs. Enhanced sealing protects against moisture intrusion in wet commercial zones. The integrated design supports a wide range of optional accessories including colored anti-glare covers and honeycomb louvers. Featuring Ra>90 and >100lm/W efficacy, it offers a highly cost-effective lighting solution for supermarkets and commercial complexes.
Contact us for project pricing or OEM samples.
Specification
| BDLS9530 30W Waterproof Commercial Modular Downlight | |
| Product code | BDLS9530 |
| Power | 30W |
| Voltage | 220-240VAC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |
| Cut-out | 95*95mm |
| Size | 105*105*146mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 15°/25°/35°/60° |
| CRI | CRI90+, CRI97+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Lens/Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 100lm/W |
| Materials | Die cast aluminum |
| Installation | Recessed Mounted |
| Protection | IP65 |
| Finish | White/Black |
| Warranty | 5 years |

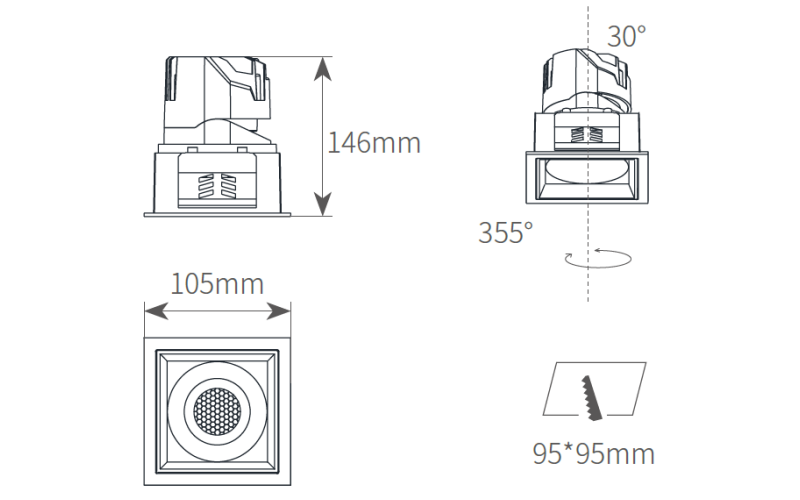

Size and drawing
Accessories
Datasheet
