2-Head IP65 Trimmed Commercial Downlight Series 20-60W


Product Number:   BDL1105520/ BDLS1507540/ BDLS1909560


Product Details

Description

The KWT 2-Head IP65 Trimmed Commercial Series is engineered for robust performance and cost efficiency in demanding commercial facilities. Covering 20W to 60W across three models, this heavy-duty downlight combines two high-output engines into a compact housing, drastically reducing ceiling cutouts compared to single fixtures. The fully sealed IP65 structure resists moisture, dust, and high-pressure washdowns, making it perfect for parking garages, cold storage, and food processing zones. The modular optical platform allows rapid onsite swapping of 18/25/36/50-degree lenses, simplifying inventory management. With high efficacy >90Lm/W and DALI/Triac dimming, it delivers significant energy savings and reduces long-term maintenance costs.

Specification

2-Head IP65 Trimmed Commercial Downlight Series 20-60W
Product codeBDL1105520BDLS1507540BDLS1909560
Power2*10W2*20W2*30W
SizeL130*W69*H75mmL180*W91*H91mmL224*W110*H142mm
Cut out60*125mm85*165mm106*210mm
Beam angle18°/25°/36°/50°18°/25°/36°/50°15°/24°/38°/60°
Voltage220-240VAC
Lumen outputLamp lumen 100Lm/W
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
DimmableON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsReflector / Lens
LED brandCITIZEN / CREE
CRICRI90+, CRI97+
Color SaturationRg=99
SDCM<3
MaterialsDie cast Aluminum
InstallationRecessed
ProtectionIP65
FinishWhite / Black (Customizable)
Warranty5 years

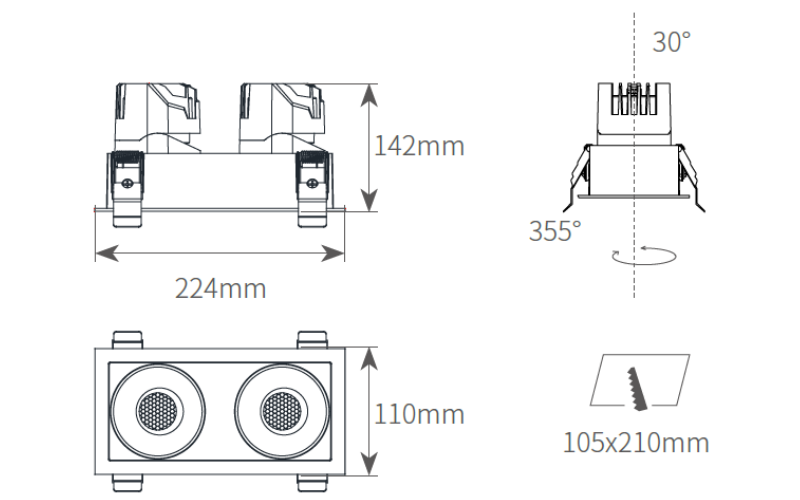

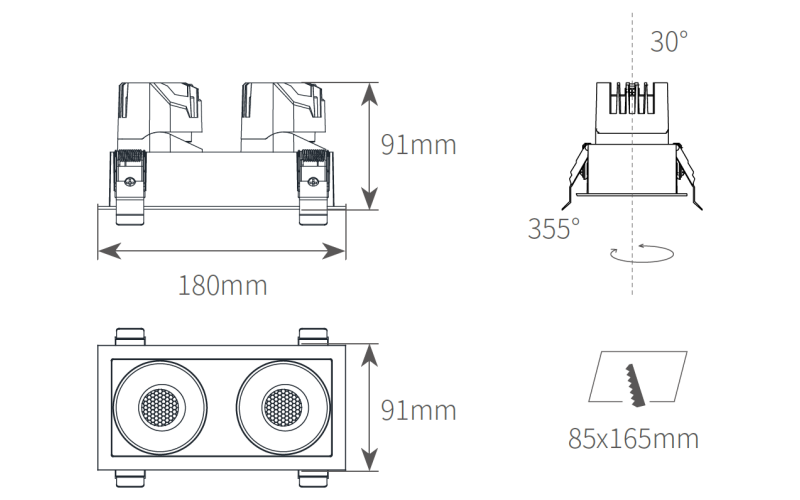

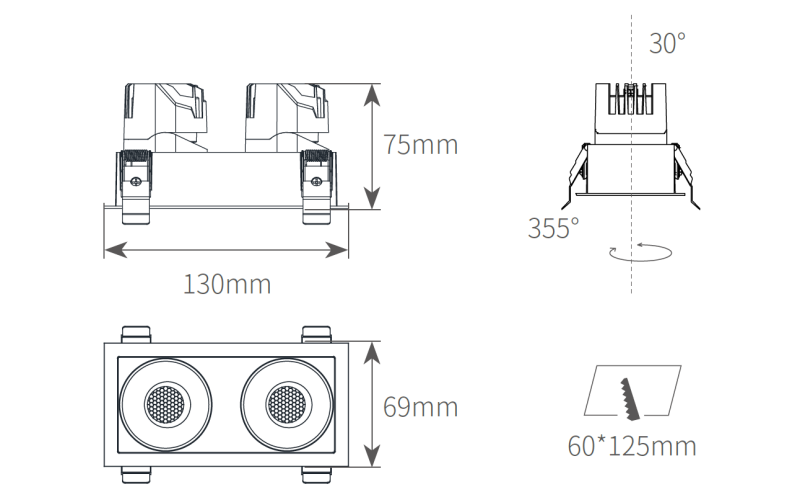

Size and drawing

Accessories

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
