HDL IP54 Waterproof Architectural Recessed Downlight 12W
Product Number: HDL7512-FR/HDL7512-FL
Product Details
Description
The Moluce IP54 Waterproof Architectural Series is engineered for interiors requiring durable moisture protection and precise optical control. Comprising HDL7512FR (fixed 80-degree) and HDL7512FL (adjustable 15-50 degree), both models share a unified Ø81mm cutout and 12W power. The die-cast aluminum housing ensures superior thermal management, while deep anti-glare UGR<11 optics provide exceptional visual comfort. Featuring an IP54 waterproof seal and high CRI (Ra>90/97), it guarantees reliable operation in humid environments. This dual-form series perfectly adapts to bathroom vanity lighting, covered patios, and high-end wellness spaces.
Contact us for project pricing or OEM samples.
Specification
| HDL IP54 Waterproof Architectural Recessed Downlight 12W | ||
| Product code | HDL7512FR | HDL7512FL |
| Power | 12W | 12W |
| Size | D81*H62mm | D81*H62mm |
| Cut out | 75mm | 75mm |
| Beam angle | 80° | 16°/25°/35°/50° |
| Voltage | 220-240VAC | |
| Lumen output | Lamp lumen 100Lm/W | |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | |
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee | |
| Optics | PMMA | Lens |
| LED brand | CITIZEN / CREE | |
| CRI | CRI90+, CRI97+ | |
| Unified Glare Rating | UGR<11 | |
| SDCM | <3 | |
| Materials | Die cast Aluminum | |
| Installation | Recessed | |
| Protection | IP65 | IP20 |
| Finish | White (Customizable) | |
| Warranty | 5 years | |

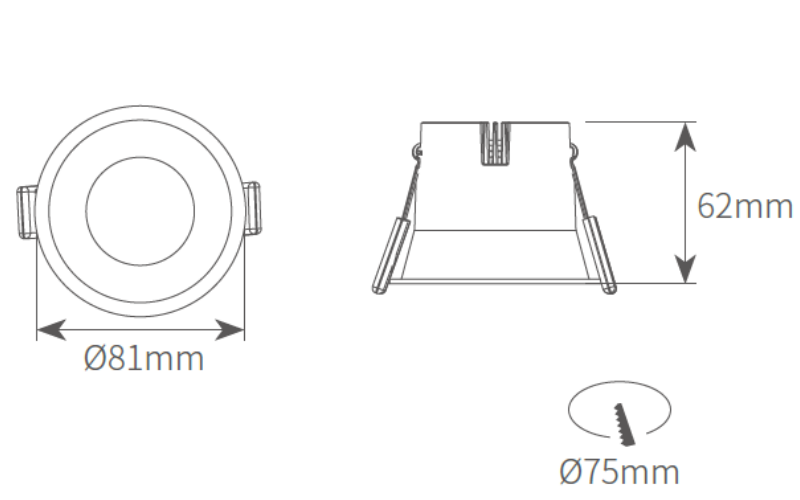

Size and drawing
Datasheet
