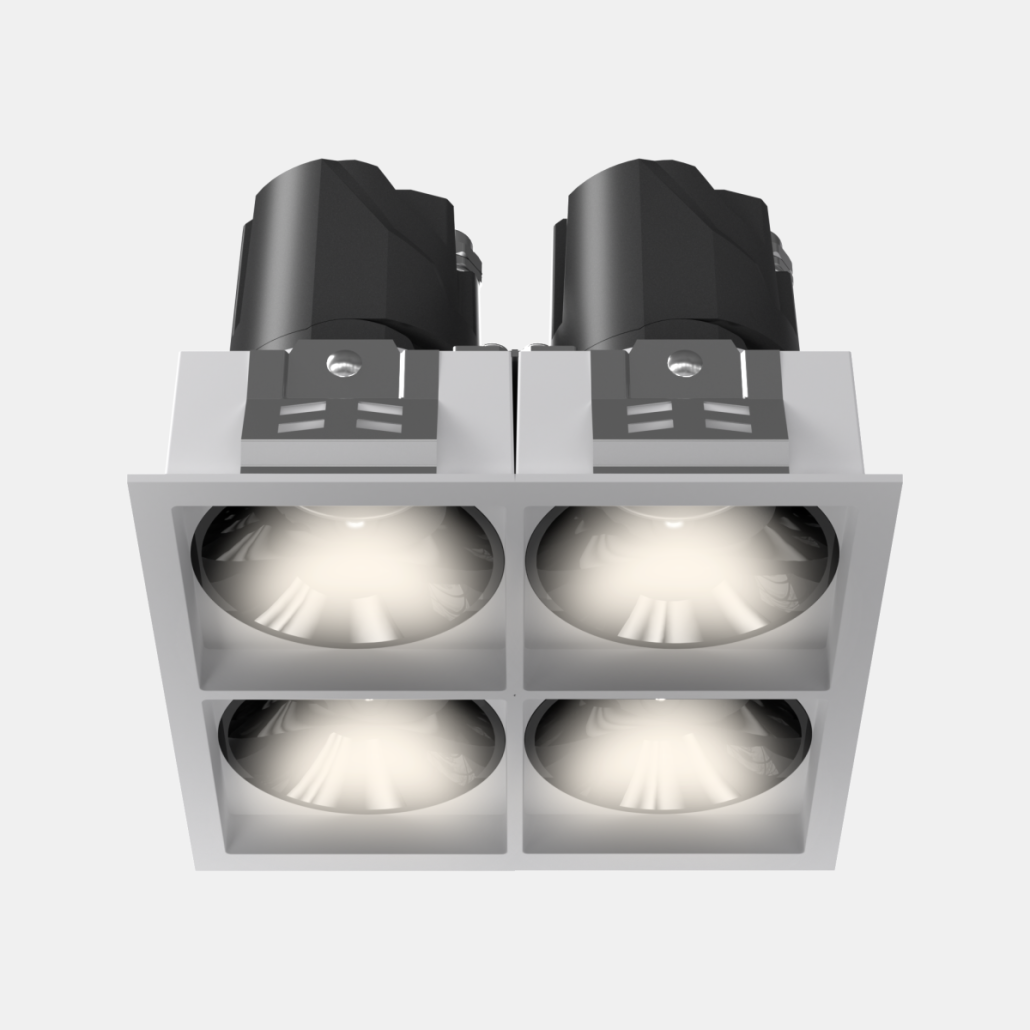

4-Head IP65 Modular Commercial Downlight Series
Product Number: BDL11011040/BDLS15015080/BDLS19191120
The KWT 4-Head IP65 Modular Commercial Series is engineered for high-impact, large-scale commercial installations. Covering 40W to 120W across three models, this commercial-grade downlight combines four LED engines into one unit, drastically reducing ceiling cutouts and wiring labor by over 50%. The modular design allows contractors to interchange 15/24/36/50 degree optics and anti-glare accessories on-site, simplifying inventory and accelerating project deployment. Built with a robust IP65 waterproof housing and offering >90lm/W efficacy, it ensures exceptional durability in moisture-prone areas like supermarkets and garages, delivering long-term energy savings and reduced maintenance costs for commercial facility managers.
Contact us for project pricing or OEM samples.
| 4-Head IP65 Modular Commercial Downlight Series | |||
| Product code | BDL11011040 | BDLS15015080 | BDLS19191120 |
| Power | 4*10W | 4*20W | 4*30W |

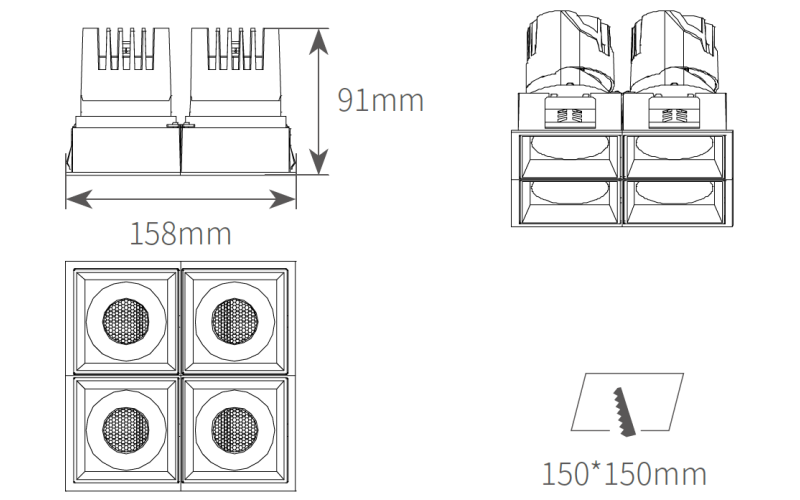

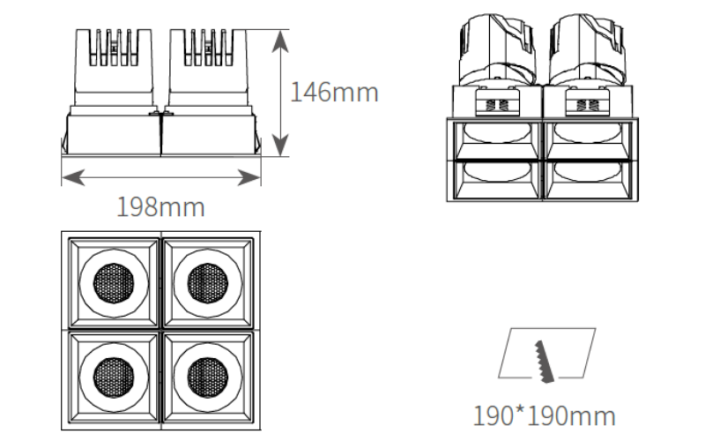

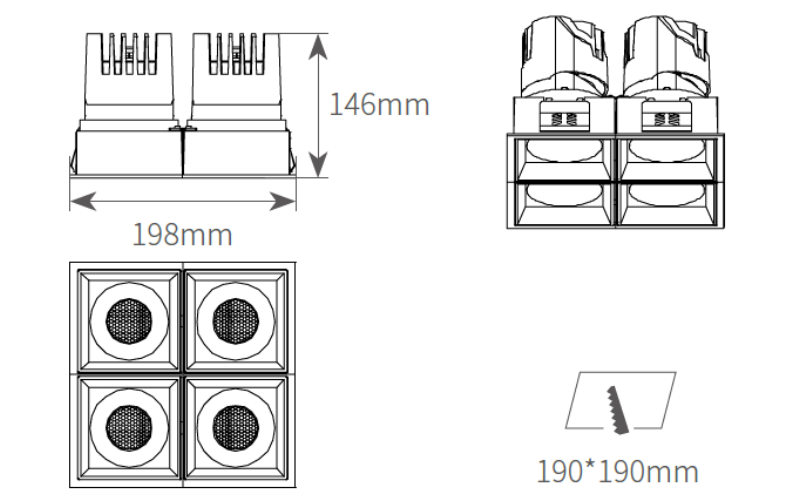

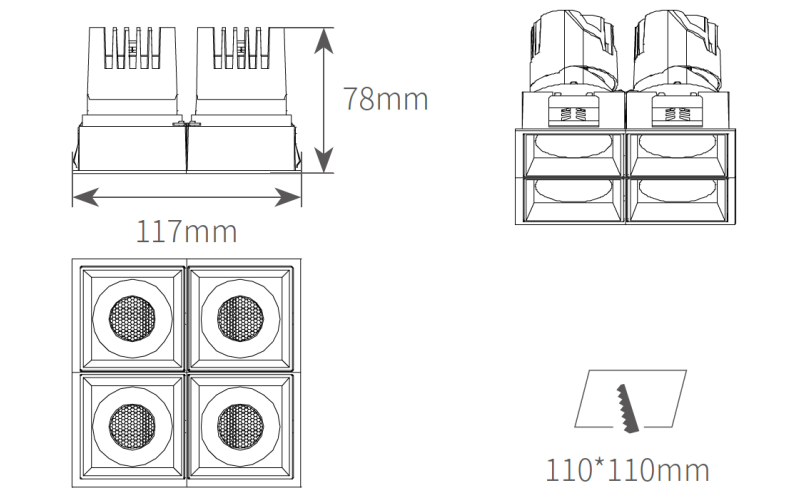

| Size | L108*W108*H78mm | L158*W158*H91mm | L198*W198*H146mm |
| Cut out | 110*110mm | 150*150mm | 190*195mm |
| Beam angle | 18°/25°/36°/50° | 18°/25°/36°/50° | 18°/25°/36°/50° |
| Voltage | 220-240VAC | ||
| Lumen output | Lamp lumen 100Lm/W | ||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee | ||
| Optics | Reflector / Lens | ||
| LED brand | CITIZEN / CREE | ||
| CRI | CRI90+, CRI97+ | ||
| Color Saturation | Rg=99 | ||
| SDCM | <3 | ||
| Materials | Die cast Aluminum | ||
| Installation | Recessed | ||
| Protection | IP65 | ||
| Finish | White / Black (Customizable) | ||
| Warranty | 5 years | ||



3-Head IP65 Modular Commercial Linear Downlight Series
