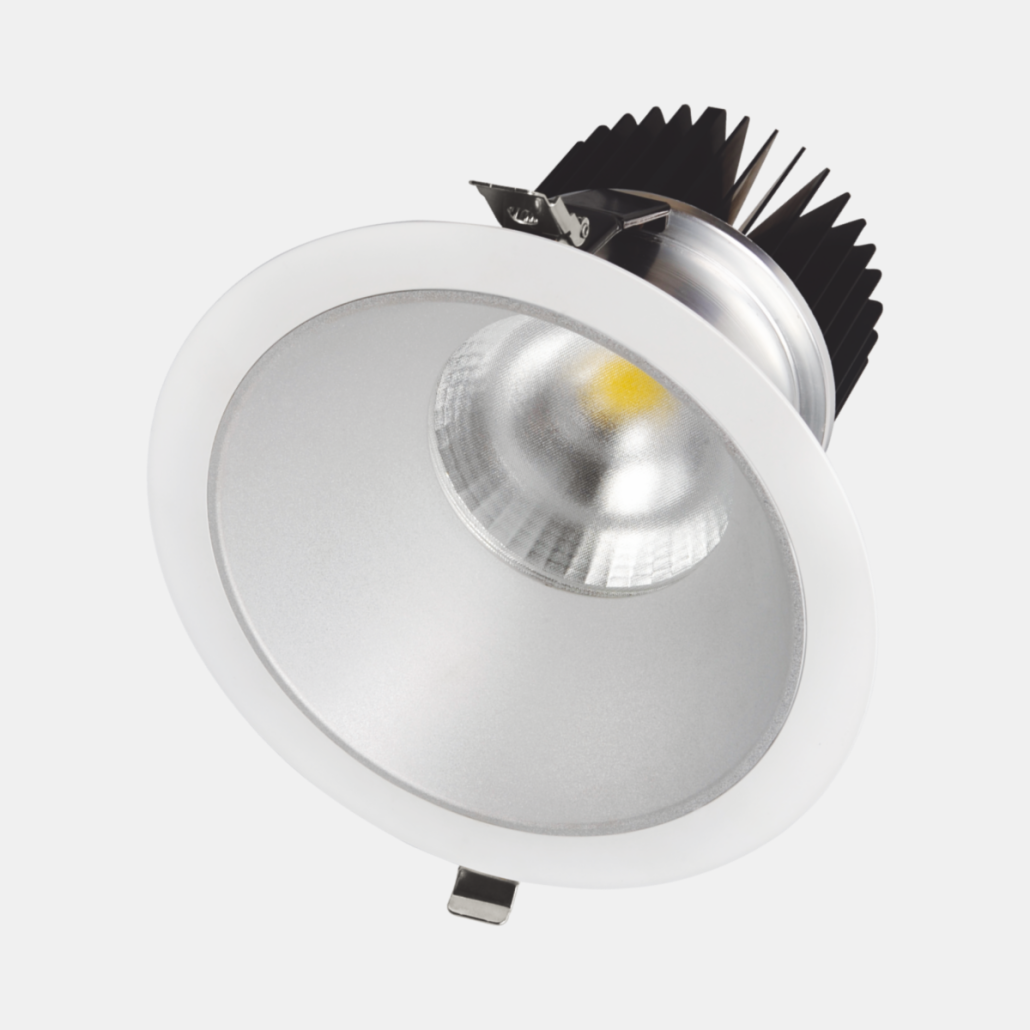

DLC10-D Series Commercial High Power Downlight 22-100W


Product Number:   DLC10-D


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>90
Full Beam Angle:     25°/45°/80°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        110Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

Engineered specifically for the rigorous demands of large-scale commercial and industrial applications, the KWT DLC10-D Series is a robust recessed downlight collection featuring eight powerful models with an impressive 22W to 100W output spectrum. Its unmatched 100W maximum power capacity makes it the definitive solution for high-ceiling retail warehouses, large supermarkets, and expansive exhibition centers. Featuring selectable 25, 45, and 80-degree beam angles alongside a superior UGR<17 anti-glare driver, it delivers both powerful, comfortable illumination and adaptable light distribution. Achieving a high CRI>90 and an impressive luminous efficacy of over 110lm/W, this series ensures vibrant merchandise display while drastically lowering long-term energy overheads. The heavy-duty aluminum heat sink guarantees excellent thermal management, ensuring long-term reliability even under 24/7 commercial operation. Supporting a wide AC100-240V input and comprehensive DALI, ZigBee, and Triac dimming compatibility, this commercial downlight series provides facility managers with a highly reliable, cost-effective, and globally adaptable lighting solution.

Specification

DLC10-D Series Commercial High Power Downlight 22-100W
Product codeDLC10-D
Power22W/28W/38W/50W/60W/70W/80W/100W
VoltageAC220-240V
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
Cut-outØ255mm
SizeD280mm
Color toleranceSDCM3
Beam angle25°/45°/80°
CRICRI90+
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsReflector
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 110lm/W
MaterialsDie cast aluminum
InstallationRecessed Mounted
ProtectionIP20
FinishWhite/Black
Warranty3 years

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
