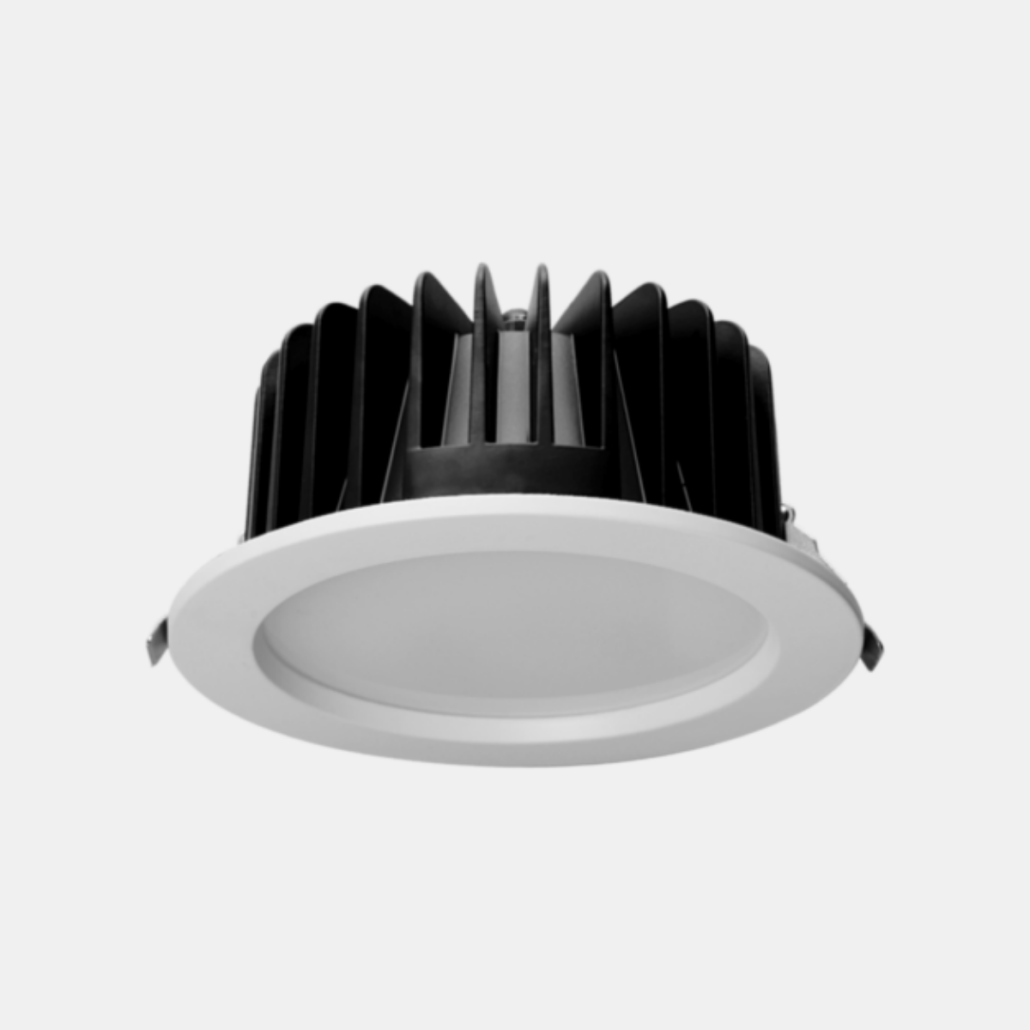

DLD-A Series 87-Degree Commercial Recessed Downlight 16-45W


Product Number: DLD-A


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>90
Full Beam Angle:     87°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        120Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

Engineered specifically for high-traffic commercial retail spaces and expansive open-plan offices, this KWT DLD-A Series is a versatile recessed downlight collection spanning the DLD04-A, DLD06-A, and DLD08-A models with a broad 16W to 45W power spectrum. Its distinctive 87-degree extra-wide beam angle significantly reduces the number of fixtures required to illuminate expansive store aisles and high-warehouse ceilings, delivering impressively uniform coverage. Achieving a high efficacy of over 120lm/W and a superior CRI>90, this series presents merchandise with vivid accuracy while drastically lowering long-term energy bills. The industrial-grade die-cast aluminum heat sink ensures excellent thermal conduction, guaranteeing long-lasting operational durability even under 24/7 commercial usage. Supporting universal AC100-240V input and comprehensive DALI, Triac, ZigBee, and Bluetooth dimming compatibility, this commercial downlight series provides facility managers with a highly reliable, cost-effective, and globally adaptable lighting solution.

Contact us for project pricing or OEM samples.

Specification

DLD-A Series 87-Degree Commercial Recessed Downlight 16-45W
Product codeDLD04-ADLD06-ADLD08-A
Power16W/20W/25W18W/25W/32W25W/32W/45W
SizeD145*H92mmD200*H110mmD230*H118mm
Cut outØ125mmØ175mmØ215mm
Beam angle87°87°87°
Voltage220-240VAC
Lumen outputLamp lumen 120Lm/W
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
DimmableON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsReflector
LED brandCREE / OSRAM
CRICRI90+
Color SaturationRg=99
SDCM<3
MaterialsDie cast Aluminum
InstallationRecessed
ProtectionIP20
FinishWhite / Black (Customizable)
Warranty3 years

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
