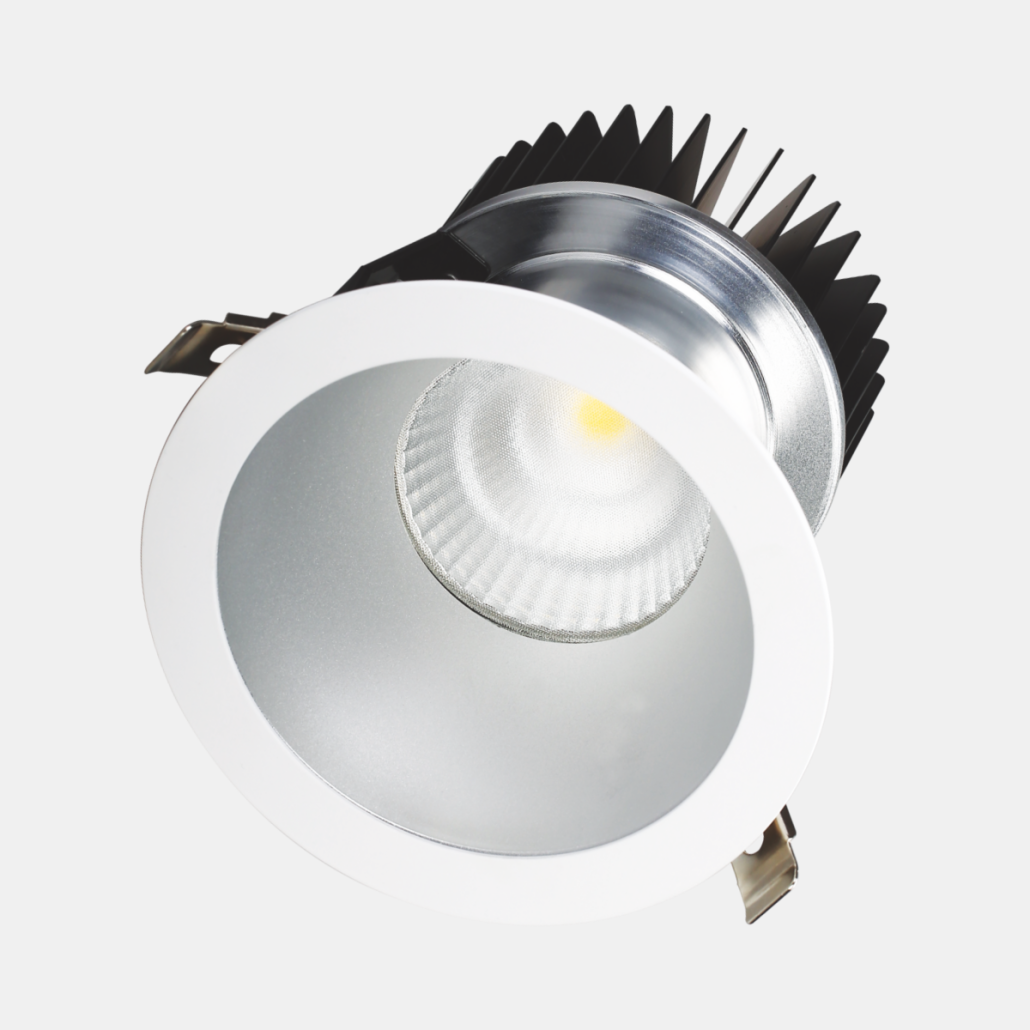

DLC10-B Series Commercial High Power Downlight 22-100W


Product Number:   DLC10-B


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>90
Full Beam Angle:     25°/32°/40°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        100Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

Engineered to meet the rigorous demands of large-scale commercial environments, this KWT DLC10-B Series is a robust recessed downlight family offering eight powerful models with a wide 22W to 100W output range. Ideal for high-ceiling retail warehouses and large supermarkets, it features selectable 23, 32, and 40-degree beams and a superior UGR<17 rating for both comfort and flexibility. Achieving a high CRI>90 and an efficient luminous efficacy of over 100lm/W, this series ensures vivid merchandise presentation while significantly lowering energy consumption. The heavy-duty aluminum heat sink provides excellent thermal management, ensuring long-term reliability under 24/7 commercial use. Supporting universal AC100-240V input and comprehensive DALI, Triac, and ZigBee dimming compatibility, this downlight collection offers facility managers a durable, cost-effective, and globally adaptable lighting solution.

Specification

DLC10-B Series Commercial High Power Downlight 22-100W
Product codeDLC10-B
Power22W/28W/38W/50W/60W/70W/80W/100W
Voltage100-240VAC, 220-240VAC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
Cut-outØ240mm
SizeD280mm
Color toleranceSDCM3
Beam angle25°/32°/40°
CRICRI90+
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsReflector
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 100lm/W
MaterialsDie cast aluminum
InstallationRecessed Mounted
ProtectionIP20
FinishWhite/Black
Warranty3 years

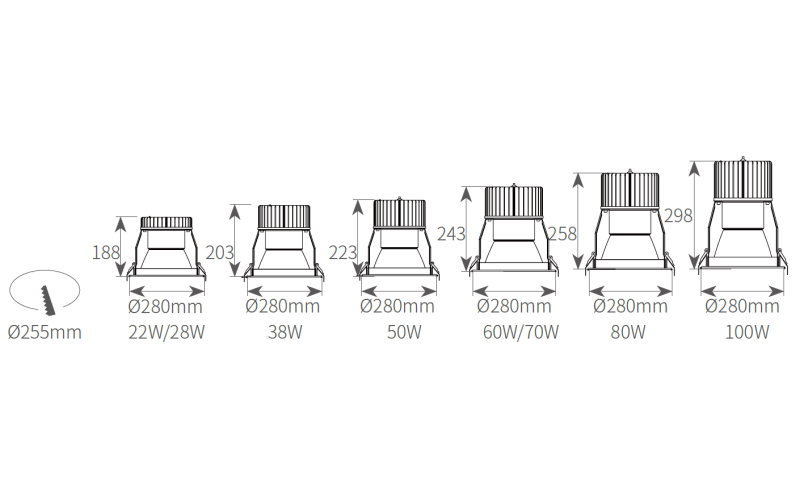

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

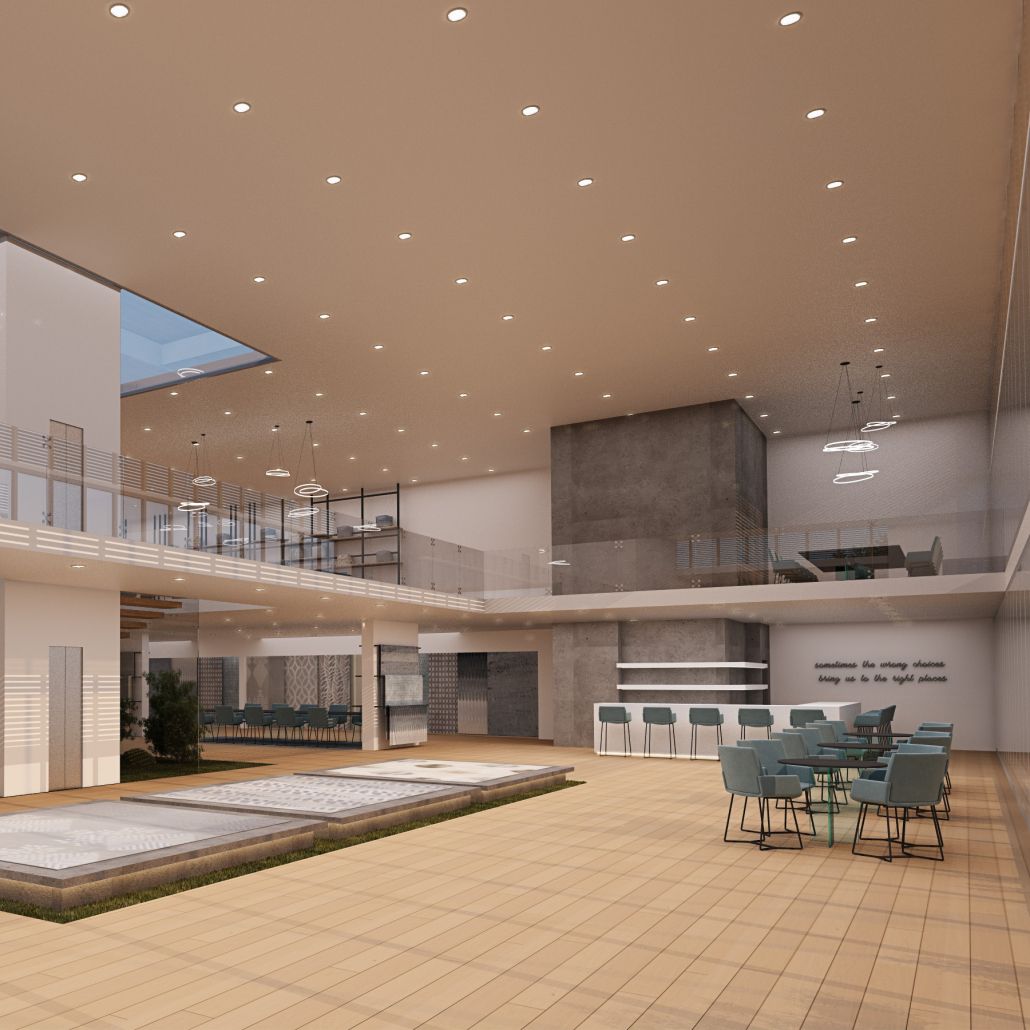

Application Scenarios
