Product Number: DLE
Quick Info:
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 50°/60°/75°/80°/85°/95°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 120Lm/W
Protection: IP20
Warranty: 3 years
The DLE Series is a versatile commercial downlight family comprising 6 models covering a broad 10W to 36W power range. Engineered to deliver reliable and efficient lighting for retail chain stores, modern office spaces, and commercial showrooms, this series offers an impressive >120lm/W luminous efficacy. Its adjustable optical system, offering selectable 15, 24, 38, and 60-degree beam angles, allows contractors to easily tailor the lighting to various ceiling heights and display layouts. With a high CRI>90 and a 16KHz advanced flicker-free driver, it ensures consistent, eye-friendly performance for everyday commercial operations. Fully compatible with DALI, Triac, 0-10V, ZigBee, and Bluetooth controls, the DLE Series provides seamless integration into smart building systems, making it a practical, cost-effective, and high-performance solution for large-scale commercial projects.
10W to 36W Wide Power Range for Versatile Projects: Including 6 distinct models, the DLE Series offers a comprehensive power output from 10W to 36W, allowing facility managers and contractors to select the perfect brightness level for diverse commercial environments, from small meeting rooms to large retail aisles.
Adjustable 15 to 60-Degree Optics for Flexible Layouts: With selectable 15, 24, 38, and 60-degree beam angles, this series easily switches from narrow, concentrated accent lighting for product display to wide, uniform wash lighting for office corridors, eliminating the need to buy multiple fixture types.
High CRI>90 and Flicker-Free Performance: Built with a high-performance CRI>90 optical engine and a 16KHz flicker-free driver, this downlight series ensures vivid color rendering for merchandise while protecting employees and customers from visual fatigue during long hours in commercial spaces.
Multi-Protocol Smart Dimming Controls: Featuring DALI, 0-10V, Triac, ZigBee, and Bluetooth compatibility, this series seamlessly connects to commercial building automation systems, enabling easy scheduling, energy-saving dimming, and dynamic scene management for large facility operations.
Contact us for project pricing or OEM samples.
| KWT LED DLE Series 10-36W Commercial Recessed Downlight | ||||||
| Product code | DLE07510 | DLE09515 | DLE12020 | DLE14025 | DLE16030 | DLE20036 |
| Power | 10W | 15W | 20W | 25W | 30W | 36W |

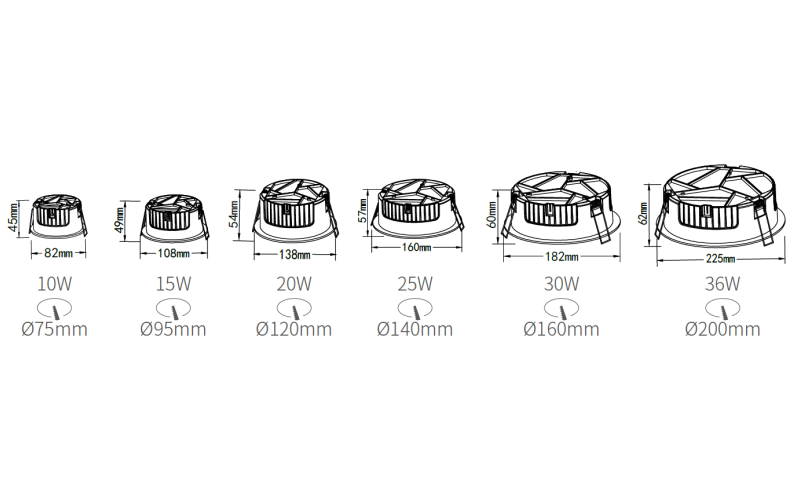

| Size | D82*H45mm | D108*H49mm | D138*H54mm | D160*H57mm | D182*H60mm | D225*H62mm |
| Cut out | Ø75mm | Ø95mm | Ø120mm | Ø140mm | Ø160mm | Ø200mm |
| Beam angle | 50°/60° | 60°/75° | 60°/80° | 60°/80° | 60°/85° | 60°/95° |
| Voltage | 220-240VAC | |||||
| Lumen output | Lamp lumen 120Lm/W | |||||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | |||||
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee | |||||
| Optics | Reflector / Lens | |||||
| LED brand | CREE / OSRAM | |||||
| CRI | CRI90+ | |||||
| Color Saturation | Rg=99 | |||||
| SDCM | <3 | |||||
| Materials | Die cast Aluminum | |||||
| Installation | Recessed | |||||
| Protection | IP20 | |||||

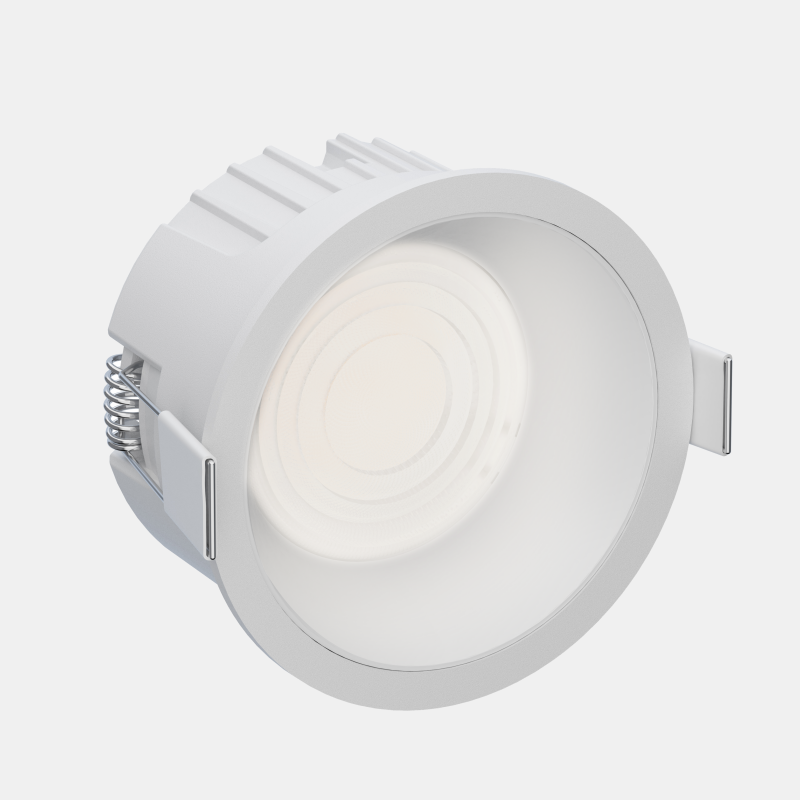

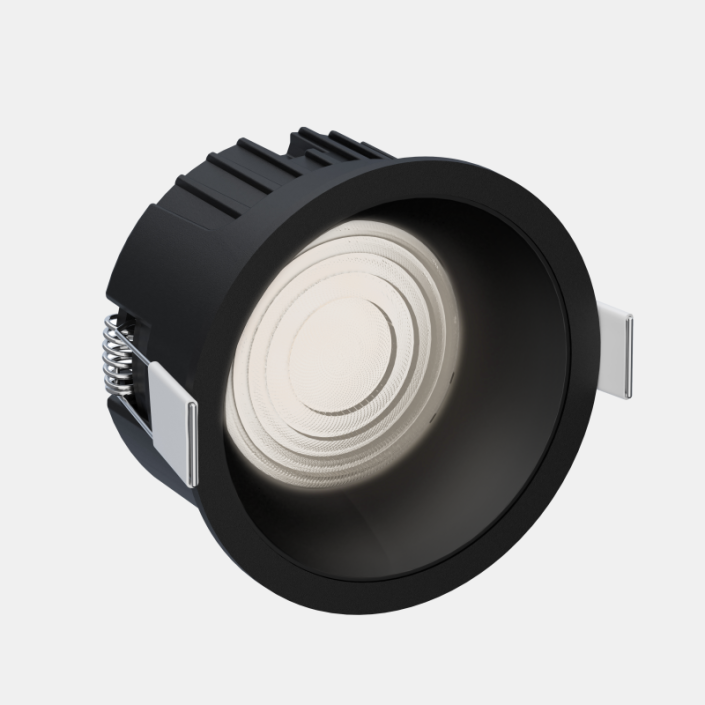

| Finish | White / Black (Customizable) | |||||
| Warranty | 3 years | |||||
