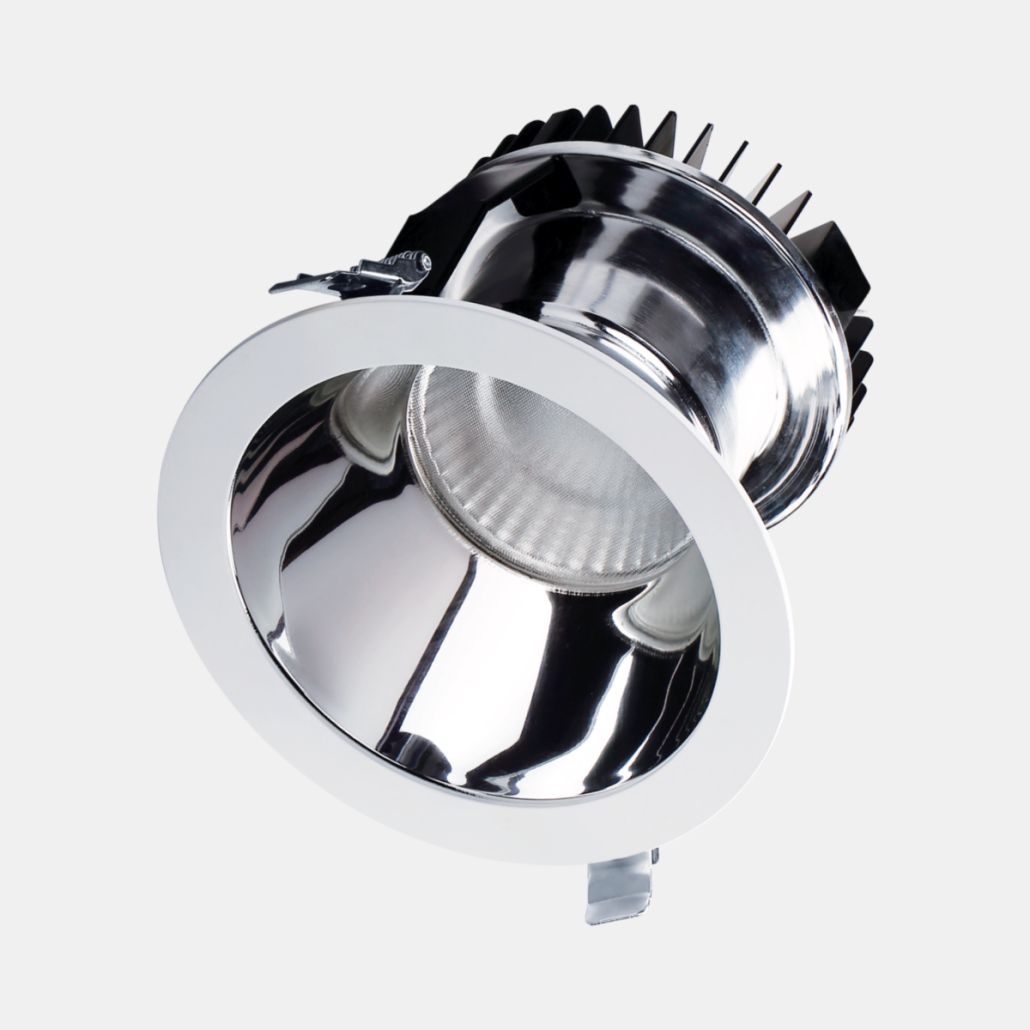

DLC10-A Series 22-100W Commercial Downlight 36-Degree


Product Number:   DLC10-A


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>90
Full Beam Angle:     36°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        100Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

Engineered to meet the rigorous demands of large-scale commercial environments, this KWT DLC10-A Series is a robust recessed downlight collection offering a powerful 22W to 100W output spectrum. Featuring a precise 36-degree beam angle, a superior UGR<17 rating, and a high luminous efficacy exceeding 100lm/W, it delivers bright, uniform, and highly comfortable illumination across expansive supermarket aisles, industrial warehouses, and high-ceiling retail spaces. The heavy-duty die-cast aluminum heat sink ensures exceptional thermal management, guaranteeing long-term reliability even under 24/7 continuous commercial operation. Supporting a wide AC100-240V universal input and comprehensive DALI, Triac, and ZigBee dimming compatibility, this commercial downlight series provides facility managers with a highly cost-effective and globally adaptable lighting solution for large-scale retail chains and commercial complexes.

Specification

DLC10-A Series 22-100W Commercial Downlight 36-Degree
Product codeDLC10-A
Power22W/28W/38W/50W/60W/70W/80W/100W
Voltage100-240VAC, 220-240VAC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
Cut-outØ240mm
SizeD280mm
Color toleranceSDCM3
Beam angle36°
CRICRI90+
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsReflector
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 100lm/W
MaterialsDie cast aluminum
InstallationRecessed Mounted
ProtectionIP20
FinishWhite/Black
Warranty3 years

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
