DLC035 15-20W Architectural Recessed Downlight
Product Number: DLC035
Product Details
Description
The Moluce DLC035 is an architectural recessed light offering 15W and 20W options with a standard Φ95mm cutout. This DLC035 downlight provides selectable 24 to 55 degree beams, achieving UGR<17 for minimal glare and a high Ra>90 color rendering index. Built with die-cast aluminum, it ensures efficient heat dissipation and stable performance for luxury hotel corridors, art exhibitions, and high-end retail environments.
Contact us for project pricing or OEM samples.
Specification
| DLC035 15-20W Architectural Recessed Downlight | |
| Product code | DLC035 |
| Power | 15/20W |
| Voltage | 100-240VAC, 220-240VAC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |
| Cut-out | Ø95mm |
| Size | D105mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 24°/36°/55° |
| CRI | CRI90+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 95lm/W |
| Materials | Die cast aluminum |
| Installation | Recessed Mounted |
| Protection | IP20 |
| Finish | White/Black |
| Warranty | 3 years |

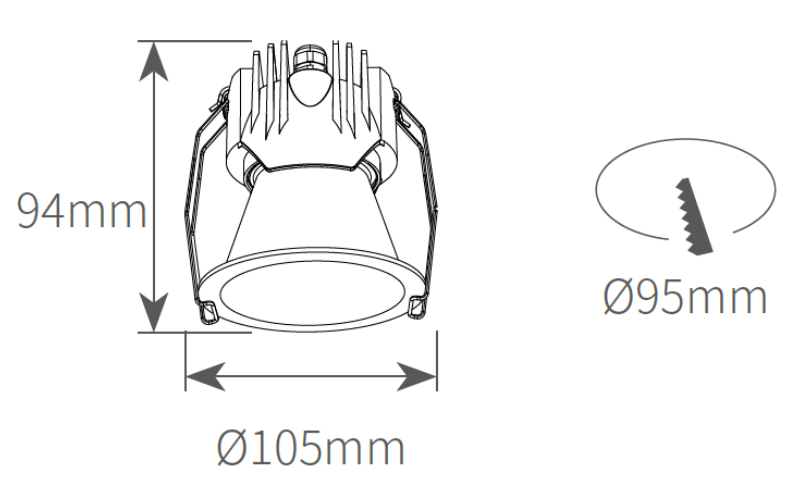

Size and drawing
Dimming control
Datasheet
