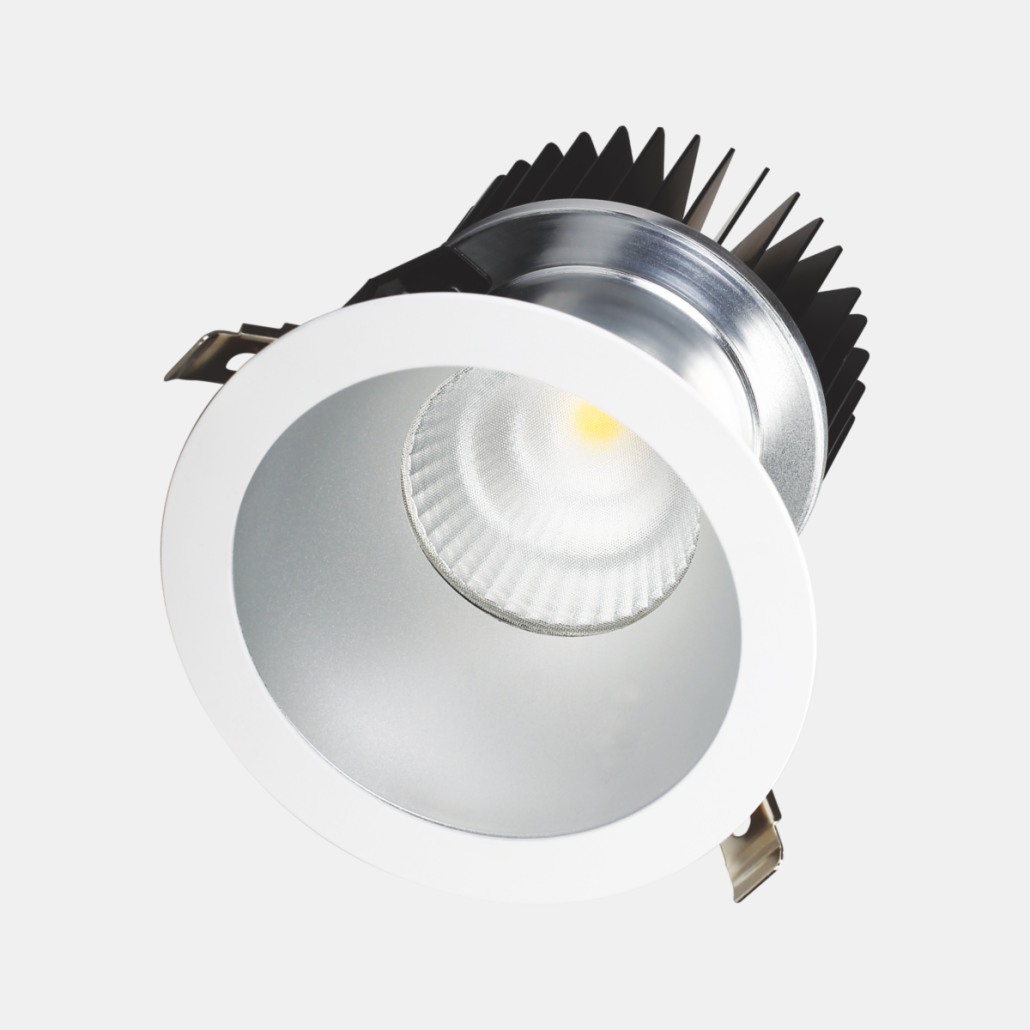

DLC08-B Series UGR<17 Commercial Downlight 22-100W


Product Number:   DLC08-B


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>90
Full Beam Angle:     25°/36°/45°/55°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        100Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

Engineered for high-traffic retail corridors and expansive commercial plazas, this KWT DLC08-B Series delivers versatile power from 22W up to 100W. Constructed with compact 210mm and 230mm bezels, it allows for dense ceiling plans without compromising high-lumen output. Offering switchable 25°/36°/45°/55° optics coupled with a professional UGR<17 rating, this commercial downlight ensures both flexible light distribution and exceptional visual comfort for shoppers. Achieving high CRI>90 and energy-saving >100lm/W efficacy, it effectively reduces daily operating costs. Supporting universal AC100-240V input and smart DALI, Triac, and ZigBee dimming protocols, this 100W recessed light provides facility managers with a globally adaptable, cost-effective, and highly durable lighting solution for large-scale retail environments.

Contact us for project pricing or OEM samples.

Specification

DLC08-B Series UGR<17 Commercial Downlight 22-100W
Product codeDLC08-B
Power22W/28W/38W/50W/60W/70W/80W/100W
Voltage100-240VAC, 220-240VAC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
Cut-outØ210mm
SizeD230mm
Color toleranceSDCM3
Beam angle25°/36°/45°/55°
CRICRI90+
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsReflector
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 100lm/W
MaterialsDie cast aluminum
InstallationRecessed Mounted
ProtectionIP20
FinishWhite/Black
Warranty3 years

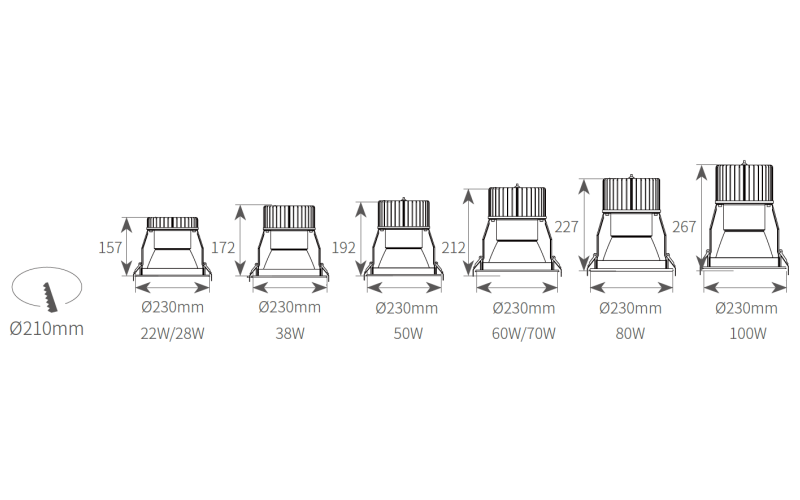

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
