Product Number: DLC04-A
Quick Info:
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 30°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 100Lm/W
Protection: IP20
Warranty: 3 years

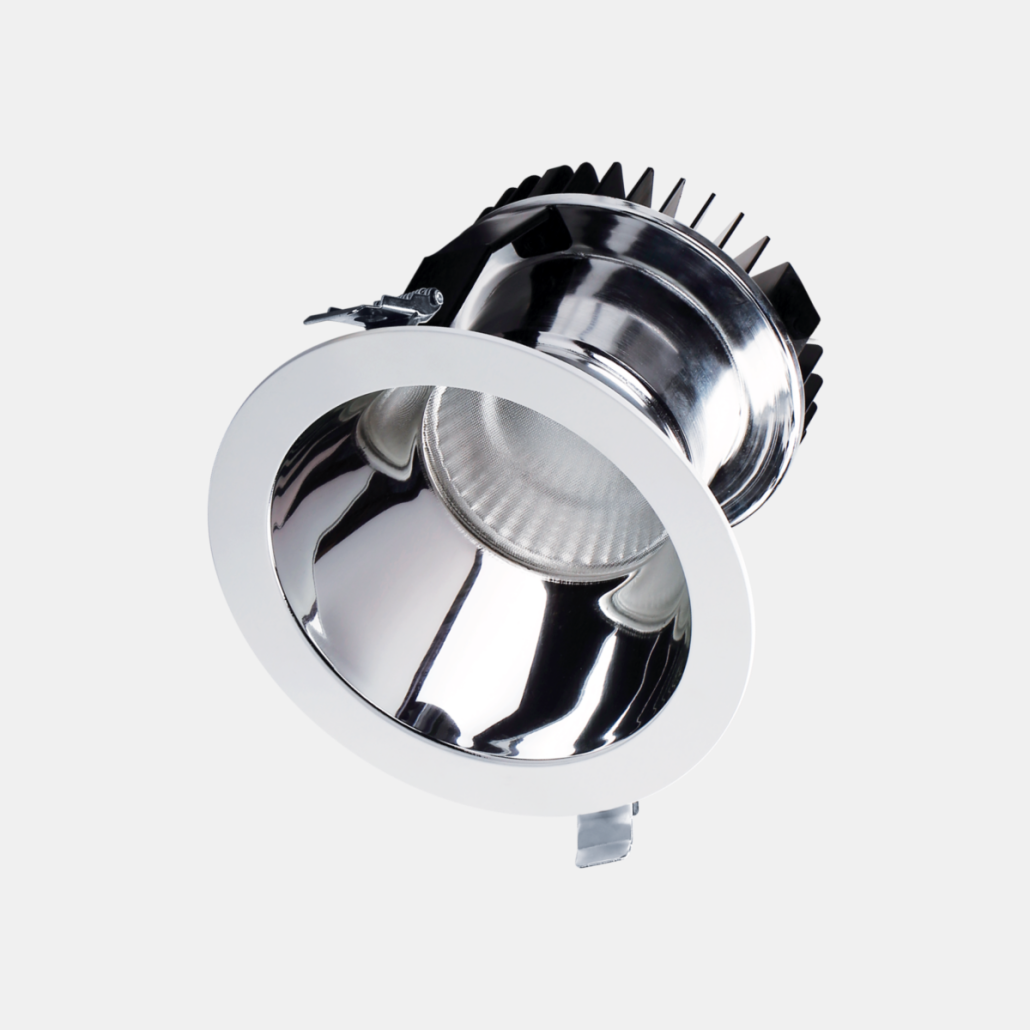

Built for high-traffic commercial environments, the KWT DLC04-A series is a commercial downlight delivering 15W to 55W output with a consistent 30-degree beam spread and AC100-240V universal input. This commercial downlight achieves high CRI (Ra>90) and UGR<17, providing comfortable, vivid illumination for shoppers. With a high system efficacy of >100lm/W and a standardized 125mm cutout, this recessed ceiling light is engineered to lower operating costs and simplify installation across large-scale retail projects.
Contact us for project pricing or OEM samples.
| DLC04-A Series Commercial Recessed Downlight 15-55W | |
| Product code | DLC04-A |
| Power | 15/20/25/30/35/40/55W |
| Voltage | 100-240VAC, 220-240VAC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |

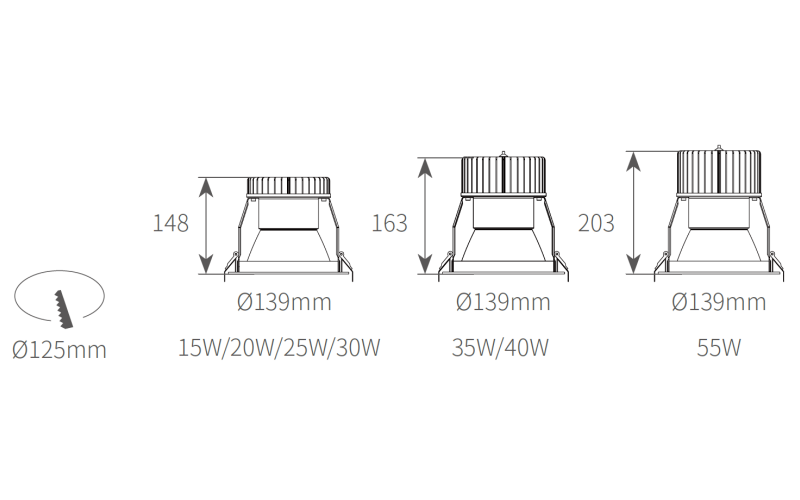

| Cut-out | Ø125mm |
| Size | D139mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 30° |
| CRI | CRI90+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 100lm/W |
| Materials | Die cast aluminum |
| Installation | Recessed Mounted |
| Protection | IP20 |
| Finish | White/Black |
| Warranty | 3 years |
