Product Number: DLC06-B
Quick Info:
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 25°/32°/45°/50°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 110Lm/W
Protection: IP20
Warranty: 3 years

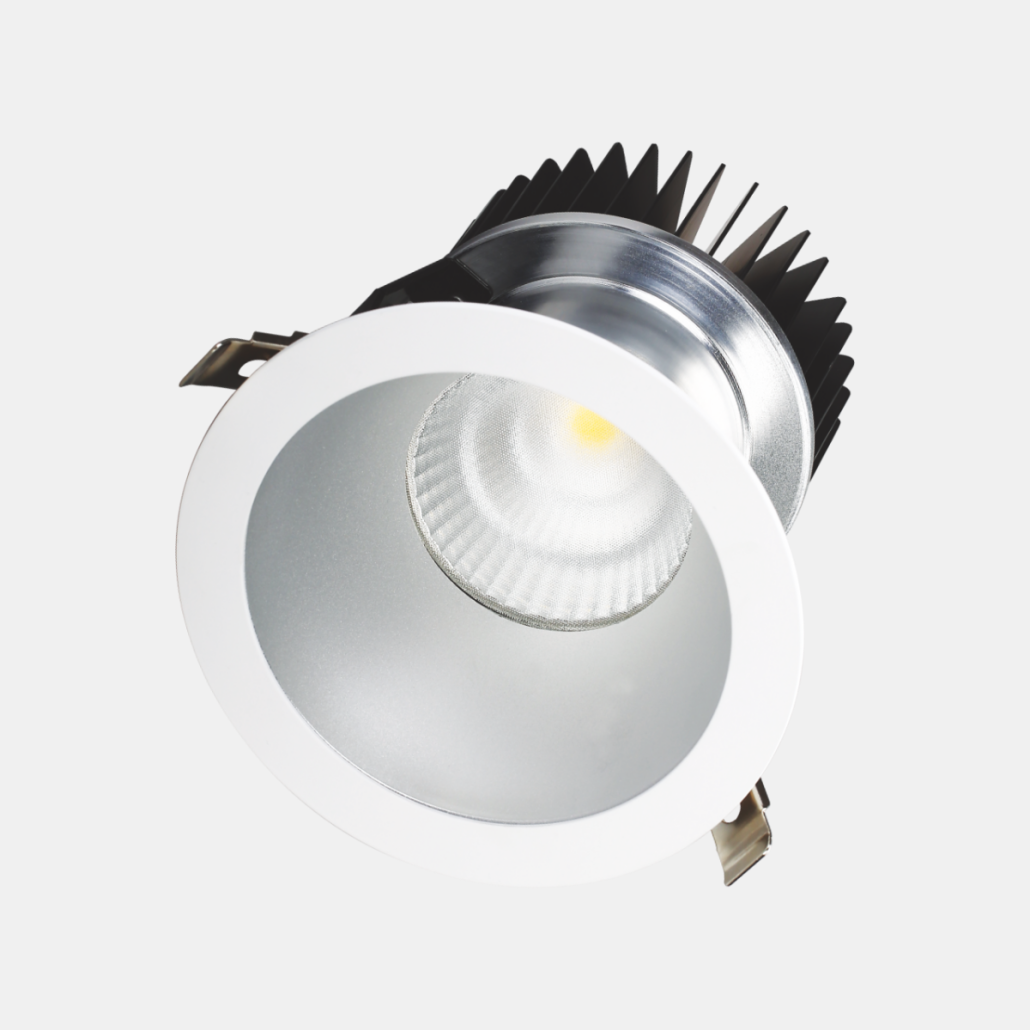

Engineered for widespread commercial use, this KWT DLC06-B series is a powerful commercial downlight providing a complete 22W to 80W output spectrum. It offers versatile 25/32/45/50 degree beam options while maintaining a high >110lm/W system efficacy and Ra>90 color rendering. With a universal AC100-240V input, this recessed ceiling light
Contact us for project pricing or OEM samples.
| DLC06-B Series 22-80W Commercial Downlight 25 to 50 Degree | |
| Product code | DLC06-B |
| Power | 22W/28W/38W/50W/60W/70W/80W |
| Voltage | 100-240VAC, 220-240VAC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |

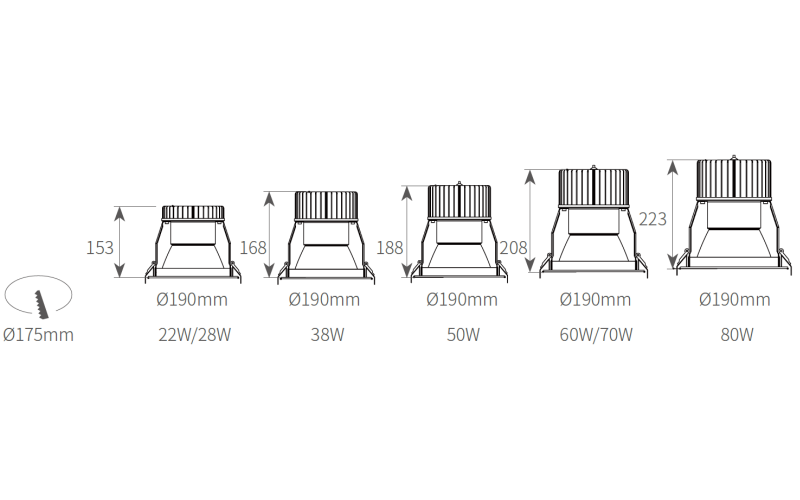

| Cut-out | Ø175mm |
| Size | D190mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 45° |
| CRI | CRI90+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 110lm/W |
| Materials | Die cast aluminum |
| Installation | Recessed Mounted |
| Protection | IP20 |
| Finish | White/Black |
| Warranty | 3 years |

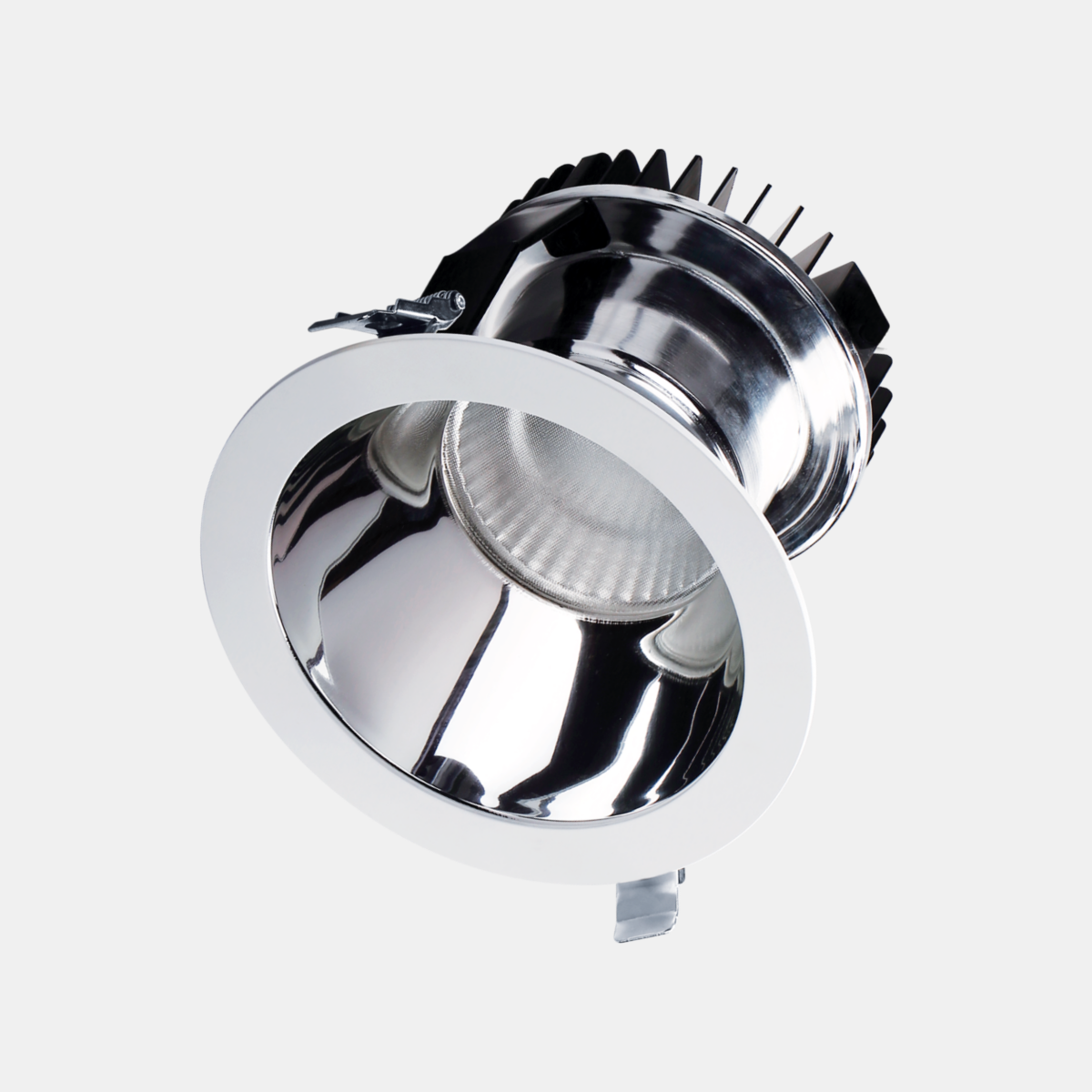

DLC06-A Series Commercial Recessed Downlight 22-100W
