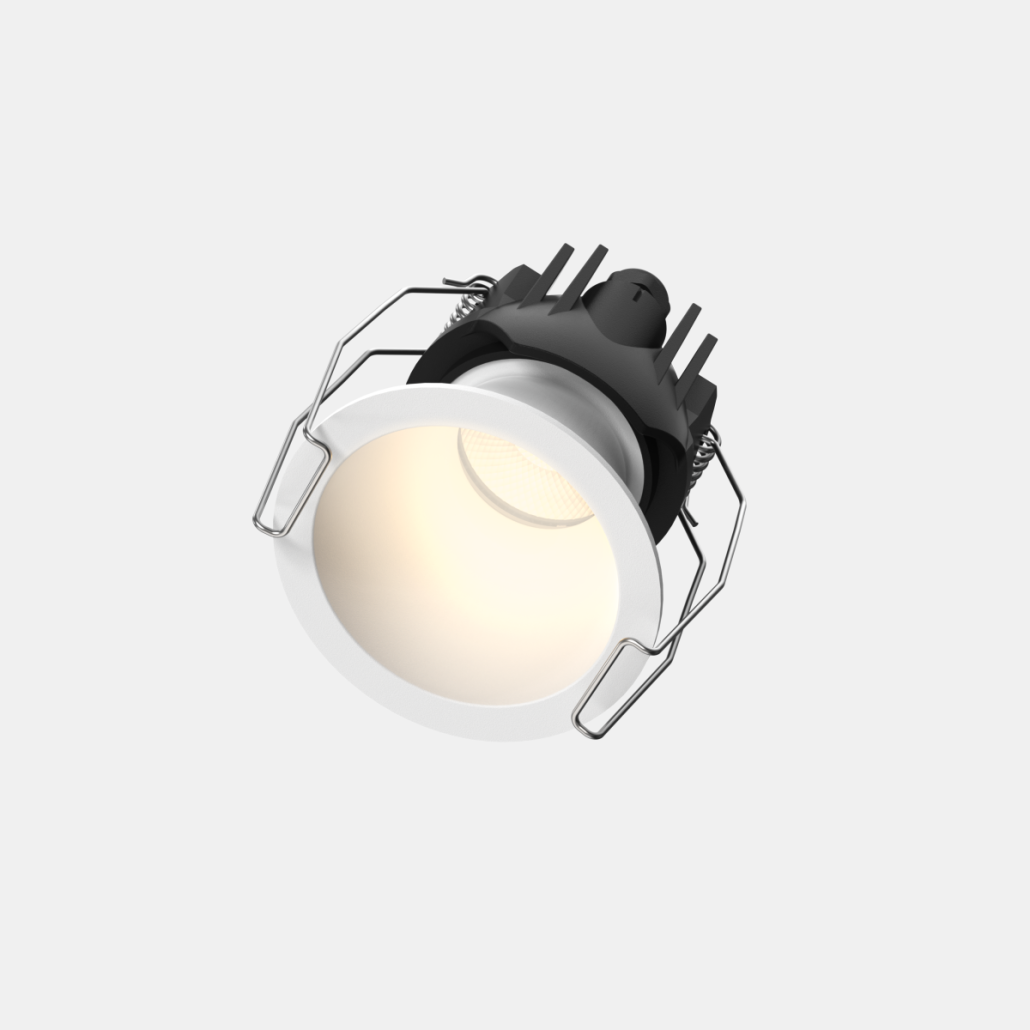

DLC02007 7W Architectural Recessed Downlight
Product Number: DLC02007
Product Details
Description
The Moluce DLC02007 is a compact downlight engineered for precise accent lighting. Featuring a 7W power engine with a 85mm cutout, this DLC02007 downlight provides selectable 24 to 55 degree beams and exceptional Ra>90 color fidelity. Its die-cast aluminum housing and >95lm/W efficacy ensure stable, energy-efficient operation, making it the perfect architectural recessed light for luxury hotel rooms, private villas, and museum display cabinets.
Contact us for project pricing or OEM samples.
Specification
| DLC02007 7W Architectural Recessed Downlight | |
| Product code | DLC02007 |
| Power | 24°/36°/55° |
| Voltage | 100-240VAC, 220-240VAC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |
| Cut-out | Ø55mm |
| Size | D65mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 24°/36°/55° |
| CRI | CRI90+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 95lm/W |
| Materials | Die cast aluminum |
| Installation | Recessed Mounted |
| Protection | IP20 |
| Finish | White/Black |
| Warranty | 3 years |

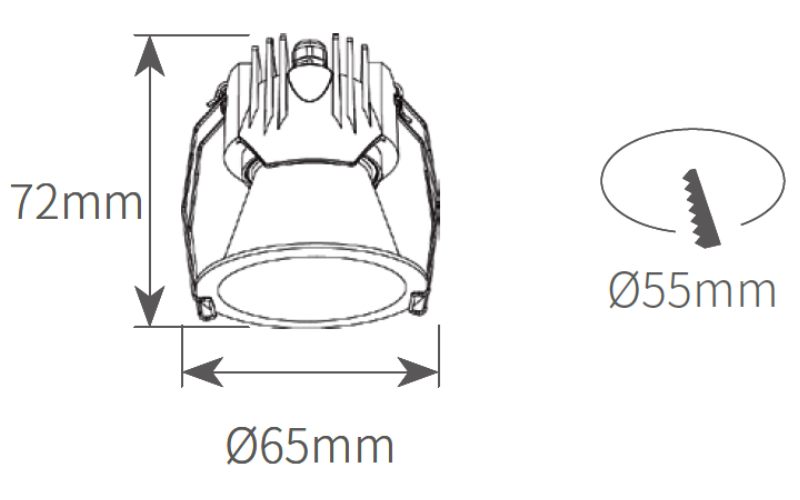

Size and drawing
Dimming control
Datasheet
