DLC02512 12W Architectural Recessed Downlight
Product Number: DLC02512
Product Details
Description
The Moluce DLC02512 is a medium-power architectural downlight providing 12W output with a standard Φ85mm cutout. Offering 24 to 55 degree optical lenses, it achieves >95lm/W efficacy with Ra>90 and SDCM<3 color consistency. This 12W downlight is crafted from robust die-cast aluminum, making it an excellent choice for accent lighting in high-end retail displays, gallery corridors, and luxury hotel reception areas.
Contact us for project pricing or OEM samples.
Specification
| DLC02512 12W Architectural Recessed Downlight | |
| Product code | DLC02512 |
| Power | 12W |
| Voltage | 100-240VAC, 220-240VAC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |
| Cut-out | Ø75mm |
| Size | D85mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 24°/36°/55° |
| CRI | CRI90+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 95lm/W |
| Materials | Die cast aluminum |
| Installation | Recessed Mounted |
| Protection | IP20 |
| Finish | White/Black |
| Warranty | 3 years |

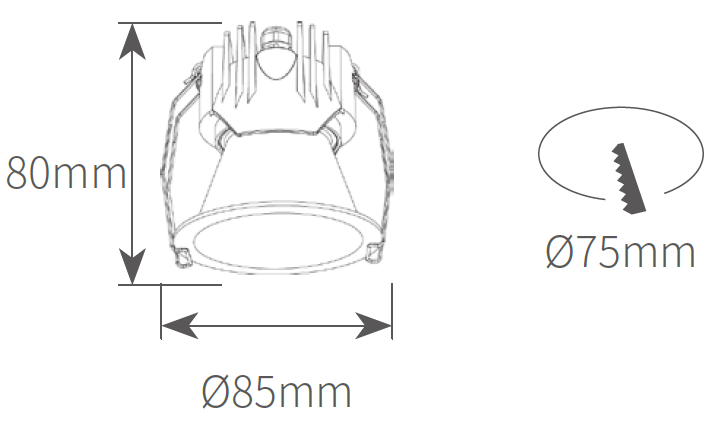

Size and drawing
Dimming control
Datasheet
