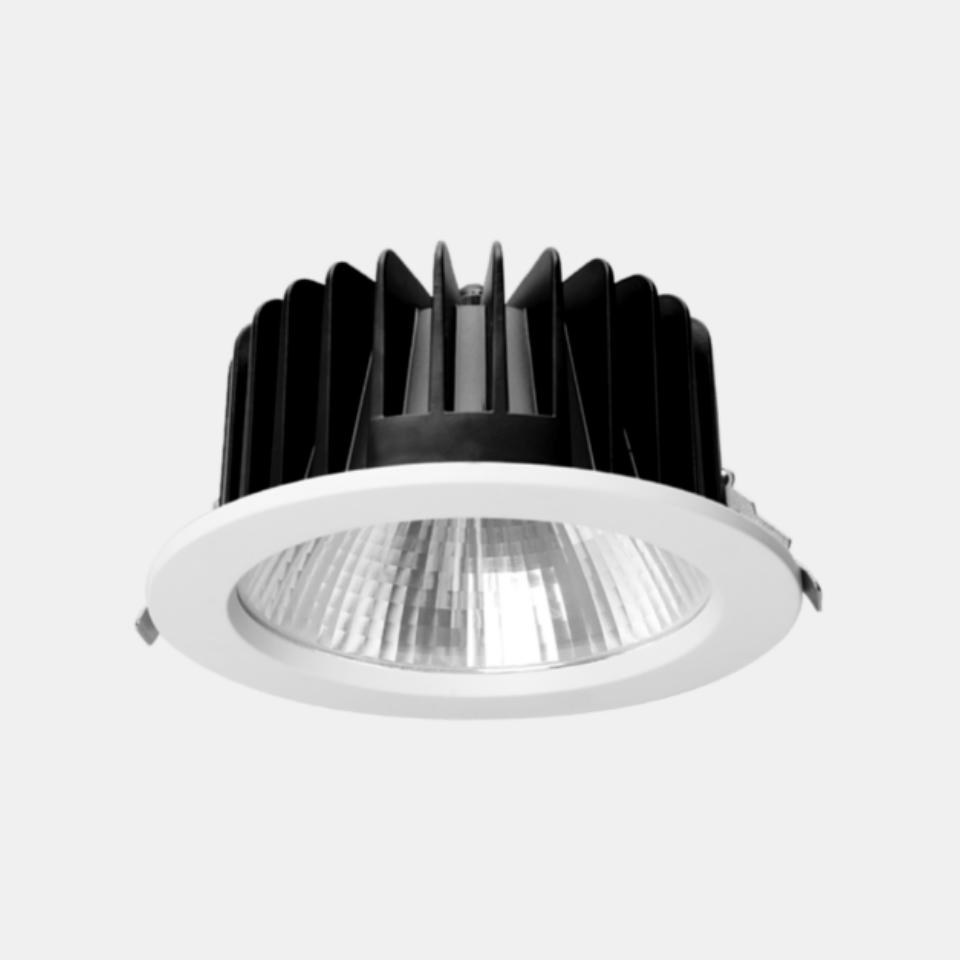

DLD-C Architectural Die-Cast Aluminum Narrow Beam Downlight 15-55W
Product Number: DLD04-C/DLD06-C/DLD08-C
Product Details
Description
The KWT DLD-C Commercial Narrow-Beam Series is engineered to solve high-ceiling lighting challenges in commercial environments. Covering 15W to 55W across three models (DLD04-C, DLD06-C, DLD08-C) with large cutouts, this commercial downlight uses a durable die-cast aluminum frame for extended lifespan. Its fixed 27-degree narrow beam provides intense, targeted illumination that penetrates long distances without scattering. With a high efficacy exceeding 120lm/W and universal AC100-240V input, it significantly lowers energy costs while ensuring merchandise and displays are vividly highlighted.
Contact us for project pricing or OEM samples.
Specification
| DLD-C Architectural Die-Cast Aluminum Narrow Beam Downlight 15-55W | |||
| Product code | DLD04-C | DLD04-C | DLD04-C |
| Power | 15/20/25W | 25/35W | 25/35/50/55W |
| Size | D145*H92mm | D200*H110mm | D230*H118mm |
| Cut out | 125mm | 175mm | 215mm |
| Beam angle | 27° | 27°/45° | 27° |
| Voltage | 220-240VAC | ||
| Lumen output | Lamp lumen 120Lm/W | ||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee | ||
| Optics | Reflector | ||
| LED brand | CITIZEN / CREE | ||
| CRI | CRI90+ | ||
| Color Saturation | Rg=99 | ||
| SDCM | <3 | ||
| Materials | Die cast Aluminum | ||
| Installation | Recessed | ||
| Protection | IP20 | ||
| Finish | White / Black (Customizable) | ||
| Warranty | 3 years | ||

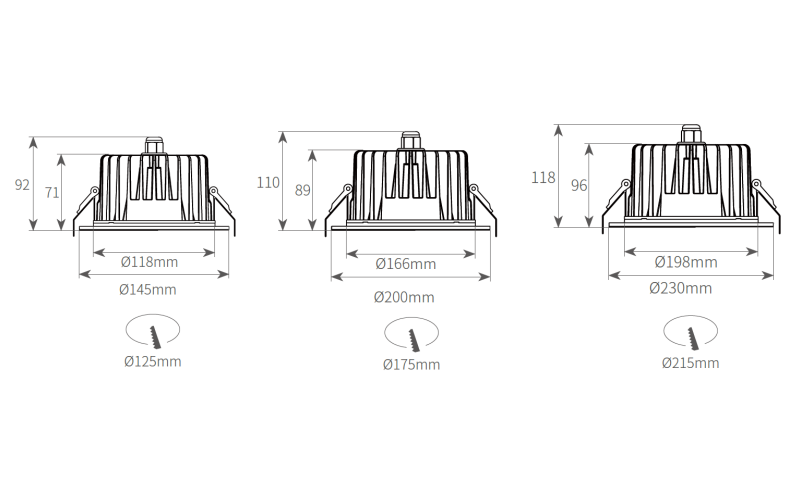

Size and drawing
