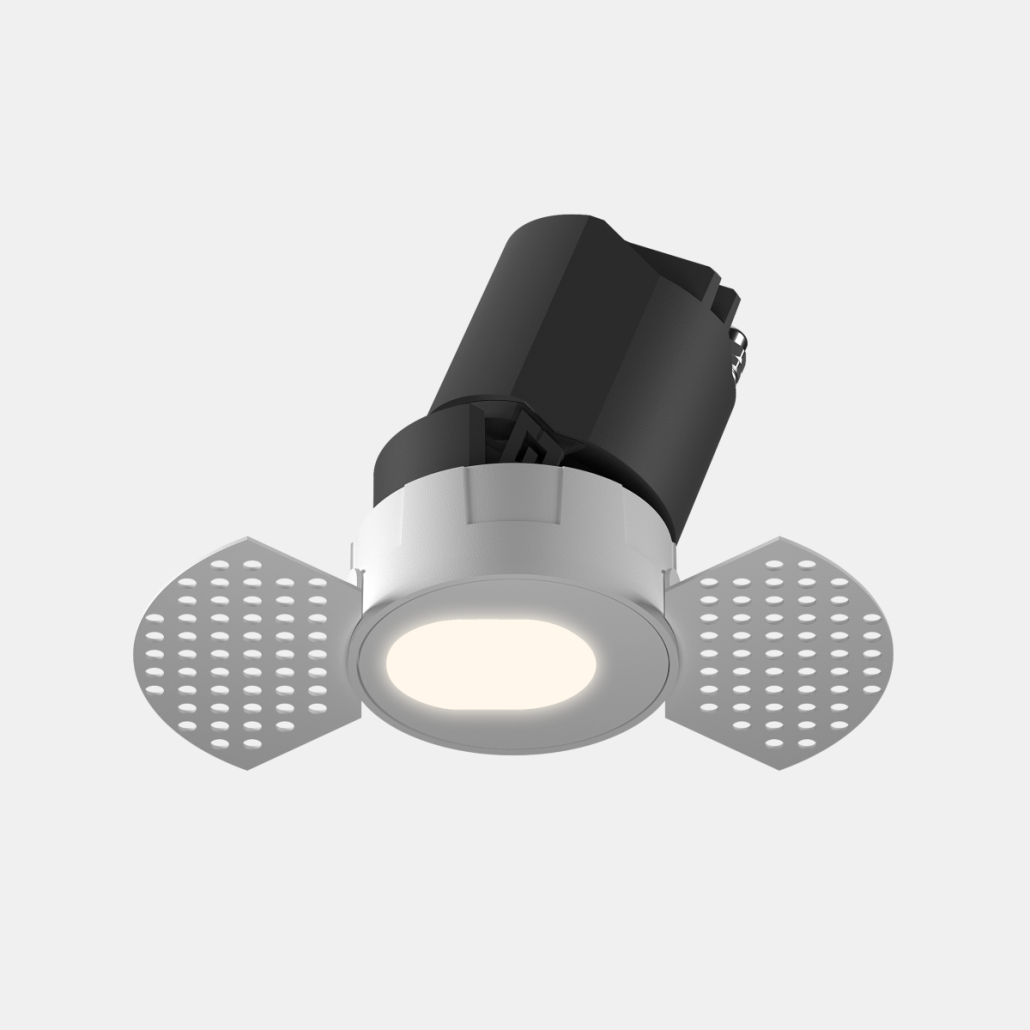

Circular IP65 Trimless Customizable Optical Downlight 12-20W
Product Number: BDL7512-TR-D, BDL7520-TR-D
Product Details
Description
The KWT Circular IP65 Trimless Customizable Optics Series is engineered to optimize commercial procurement and deployment. Covering 12W and 20W across two models (BDL7512-TR-D and BDL7520-TR-D), this commercial downlight uses a unified 80mm ultra-slim die-cast aluminum frame, allowing contractors to stock one fixture base for varying power needs. Its deep anti-glare design (UGR<11) ensures visual comfort in high-traffic retail environments, while the IP65 waterproof structure allows safe deployment in demanding wet zones. With modular onsite interchangeable 15/24/38/50-degree lenses and >90Lm/W efficacy, it significantly lowers installation labor, inventory costs, and long-term maintenance expenses.
Contact us for project pricing or OEM samples.
Specification
| Circular IP65 Trimless Customizable Optical Downlight 12-20W | ||
| Product code | BDL7512-TR-D | BDL7520-TR-D |
| Power | 12W | 20W |
| Size | D95*H80mm | D95*H80mm |
| Cut out | 75mm | 75mm |
| Beam angle | 15°/24°/38°/50° | 15°/25°/36°/50° |
| Voltage | 220-240VAC | |
| Lumen output | Lamp lumen 100Lm/W | |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | |
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee | |
| Optics | Reflector / Lens | |
| LED brand | CITIZEN / CREE | |
| CRI | CRI90+, CRI97+ | |
| Color Saturation | Rg=99 | |
| SDCM | <3 | |
| Materials | Die cast Aluminum | |
| Installation | Recessed | |
| Protection | IP65 | |
| Finish | White / Black (Customizable) | |
| Warranty | 5 years | |

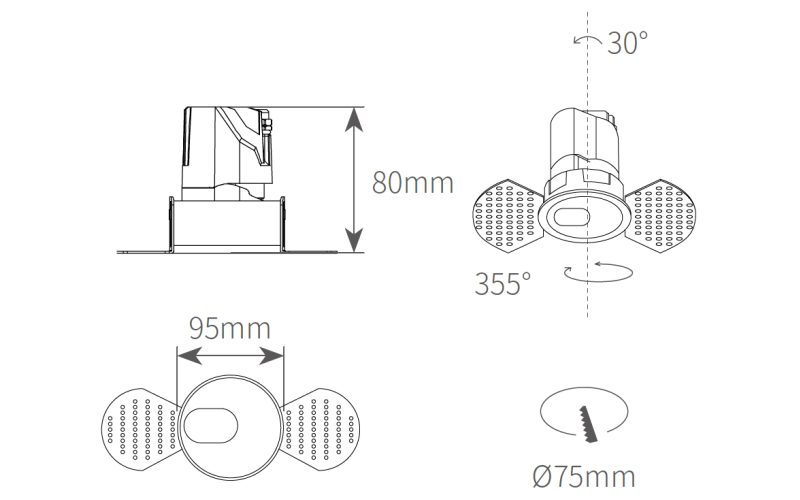

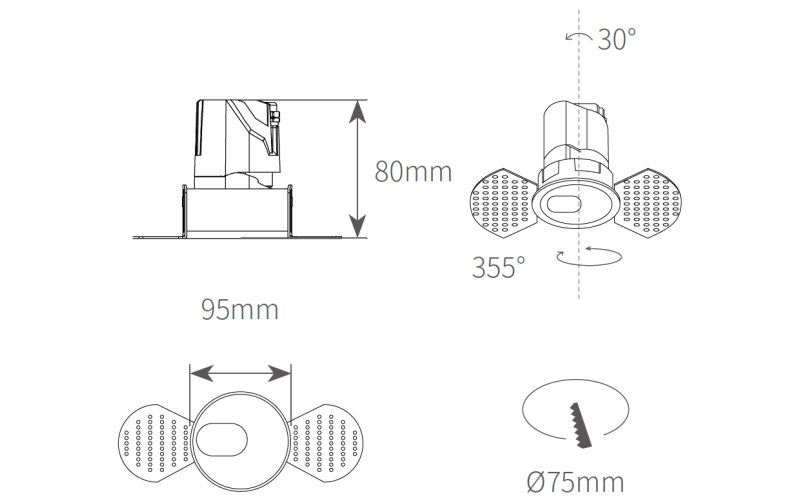

Size and drawing
Accessories
Datasheet
