Circular IP65 Trimless Commercial Downlight Series 20-30W
Product Number: BDLS7520-TR-A, BDLS9535-TR-A
Product Details
Description
The KWT Square IP65 Trimless Commercial Series is engineered for demanding wet environments requiring a seamless aesthetic. Covering 20W to 30W across two models, this commercial downlight utilizes a robust trimless square housing to minimize ceiling cutouts while delivering powerful illumination. Its deep anti-glare design (UGR<11) ensures visual comfort in high-traffic commercial environments, while the IP65 waterproof structure allows deployment in demanding wet zones. With modular onsite interchangeable 15/24/38/50-degree lenses and >90Lm/W efficacy, it significantly lowers installation labor, inventory costs, and long-term maintenance expenses.
Contact us for project pricing or OEM samples.
Specification
| Circular IP65 Trimless Commercial Downlight Series 20-30W | ||
| Product code | BDLS7520-TR-A | BDLS9535-TR-A |
| Power | 20W | 30W |
| Size | L75*W75*H116mm | L95*W95*H144mm |
| Cut out | 77.5*77.5mm | 95*100mm |
| Beam angle | 15°/24°/38°/50° | 15°/24°/38°/50° |
| Voltage | 220-240VAC | |
| Lumen output | Lamp lumen 100Lm/W | |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | |
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee | |
| Optics | Reflector / Lens | |
| LED brand | CITIZEN / CREE | |
| CRI | CRI90+, CRI97+ | |
| Color Saturation | Rg=99 | |
| SDCM | <3 | |
| Materials | Die cast Aluminum | |
| Installation | Recessed | |
| Protection | IP65 | |
| Finish | White / Black (Customizable) | |
| Warranty | 5 years | |

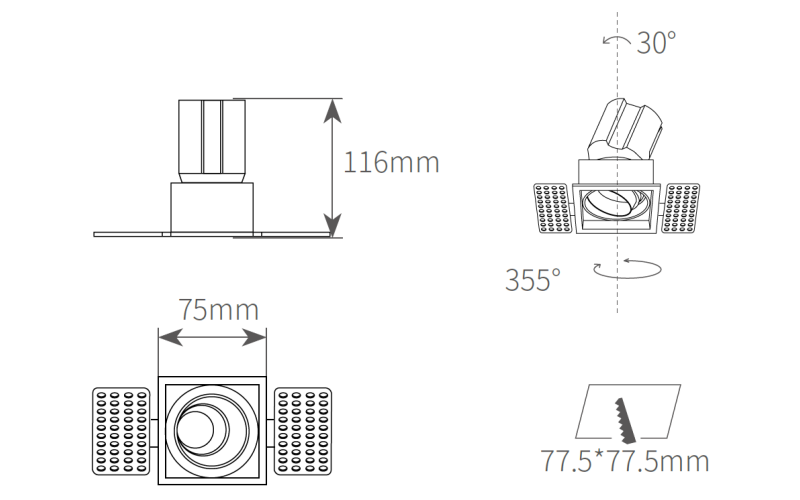

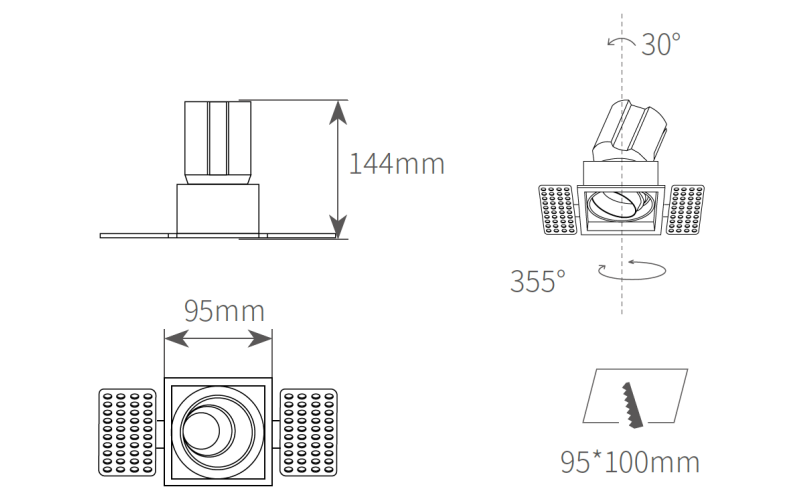

Size and drawing
