3-Head IP65 Modular Commercial Linear Downlight Series
Product Number: BDL1655530-TR/BDLS2257560-TR/BDLS2859590-TR
Product Details
Description
The Moluce 3-Head Trimless IP65 Architectural Linear Series introduces a refined horizontal lighting solution for premium architectural spaces. Unifying BDL1655530-TR (3x10W), BDLS2257560-TR (3x20W), and BDLS2859590-TR (3x30W), this series configures three adjustable light engines in a single linear frame, delivering 30W to 90W. Its modular optical system permits interchangeable 15/24/36/50-degree lenses and various anti-glare accessories. Featuring an IP65 waterproof seal, UGR<11, and Ra>90/97 color accuracy, it provides flawless, shadow-free illumination for art gallery corridors, luxury retail walls, and semi-outdoor architectural atriums. Integrated with DALI and ZigBee, it creates dynamic, seamless linear lighting without visual interruptions.
Contact us for project pricing or OEM samples.
Specification
| 3-Head Trimless IP65 Architectural Linear Downlight Series | |||
| Product code | BDL1655530-TR | BDLS2257560-TR | BDLS2859590-TR |
| Power | 3*10W | 3*20W | 3*30W |
| Size | L161*W54*H78mm | L221*W74*H91mm | L281*W94*H146mm |
| Cut out | 54*161mm | 75*230mm | 95*290mm |
| Beam angle | 18°/25°/36°/50° | 18°/25°/36°/50° | 18°/24°/38°/60° |
| Voltage | 220-240VAC | ||
| Lumen output | Lamp lumen 100Lm/W | ||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee | ||
| Optics | Reflector / Lens | ||
| LED brand | CITIZEN / CREE | ||
| CRI | CRI90+, CRI97+ | ||
| Color Saturation | Rg=99 | ||
| SDCM | <3 | ||
| Materials | Die cast Aluminum | ||
| Installation | Recessed | ||
| Protection | IP65 | ||
| Finish | White / Black (Customizable) | ||
| Warranty | 5 years | ||

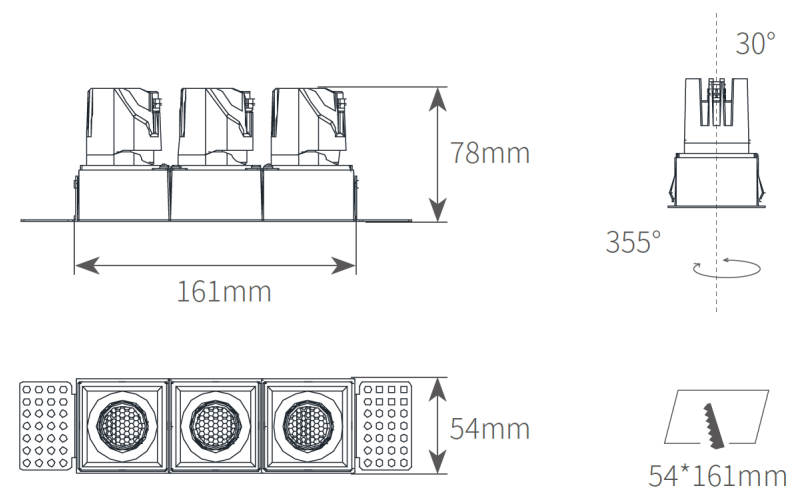

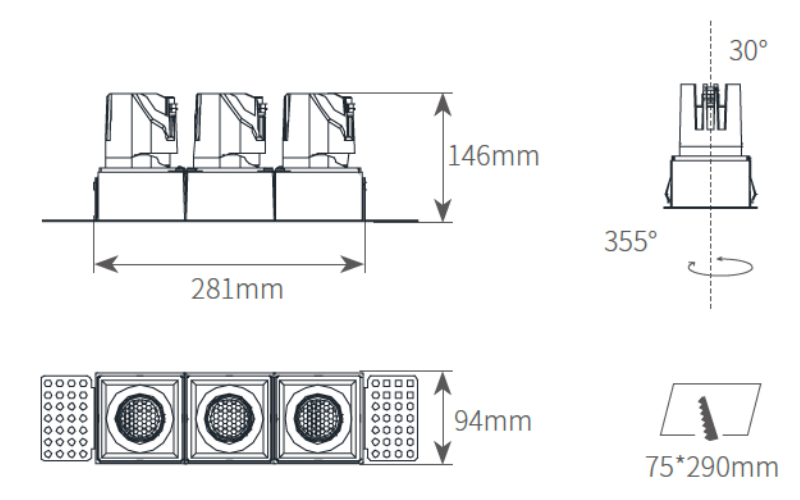

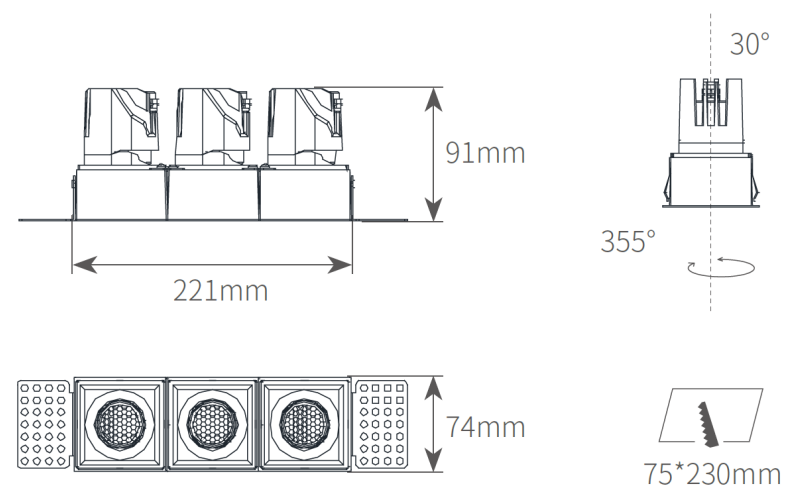

Size and drawing
