BDL9530-TR 30W Modular Waterproof Trimless Downlight
Product Number: BDL9530-TR
Product Details
Description
The Moluce BDL9530-TR is a 30W trimless modular recessed downlight created for seamless integration into high-end drywall ceilings. Its frameless design ensures a flawless flush finish, strictly hiding cutout imperfections. The waterproof sealed housing provides reliable, moisture-proof performance for luxurious spa-like bathrooms and humid locations. Its modular optical core offers 15/24/36/60 degree interchangeable beams. Supporting various optional accessories including honeycomb louvers and colored anti-glare covers, it delivers a perfect blend of precision, functionality, and minimalist aesthetics.
Contact us for project pricing or OEM samples.
Specification
| BDL9530-TR 30W Modular Waterproof Trimless Downlight | |
| Product code | BDL9530-TR |
| Power | 30W |
| Voltage | 220-240VAC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |
| Cut-out | D100mm |
| Size | 91*130mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 15°/24°/38°/60° |
| CRI | CRI90+, CRI97+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Lens/Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 100lm/W |
| Materials | Die cast aluminum |
| Installation | Recessed Mounted |
| Protection | IP65 |
| Finish | White/Black |
| Warranty | 5 years |

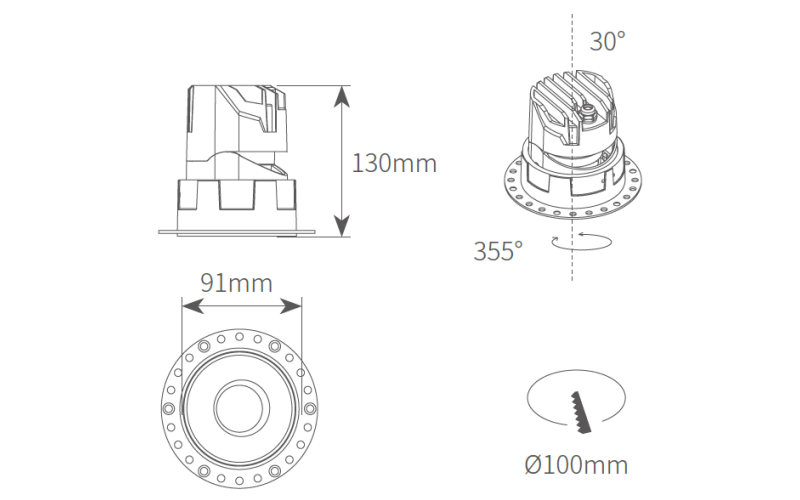

Size and drawing
Accessories
Datasheet
