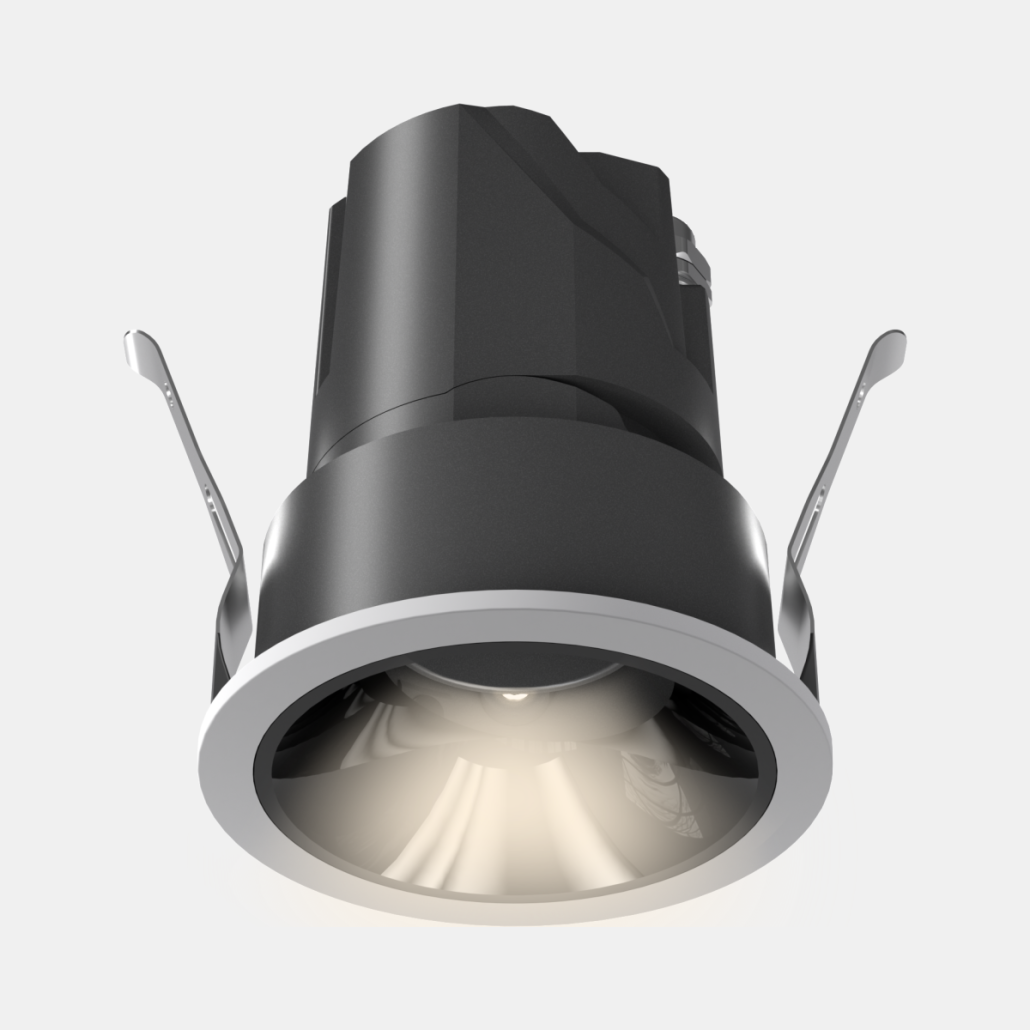

BDL9530 30W Modular Waterproof High CRI Downlight
Product Number: BDL9530
Product Details
Description
The Moluce BDL9530 is a 30W modular recessed downlight featuring an elegant 95mm cutout. Offering interchangeable 15/24/36/60 degree optical modules, this downlight provides seamless flexibility for accent lighting. The waterproof sealed housing allows for safe installation in high-humidity residential or premium retail locations. The modular architecture supports various optional accessories, including honeycomb louvers and multiple anti-glare cover colors. Achieving Ra>90/97, it ensures superior color fidelity for luxury merchandise, making it an ideal choice for high-end applications.
Contact us for project pricing or OEM samples.
Specification
| BDL9530 30W Modular Waterproof High CRI Downlight | |
| Product code | BDL9530 |
| Power | 30W |
| Voltage | 220-240VAC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |
| Cut-out | D95mm |
| Size | 111*110mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 15°/24°/38°/60° |
| CRI | CRI90+, CRI97+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Lens/Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 100lm/W |
| Materials | Die cast aluminum |
| Installation | Recessed Mounted |
| Protection | IP65 |
| Finish | White/Black |
| Warranty | 5 years |

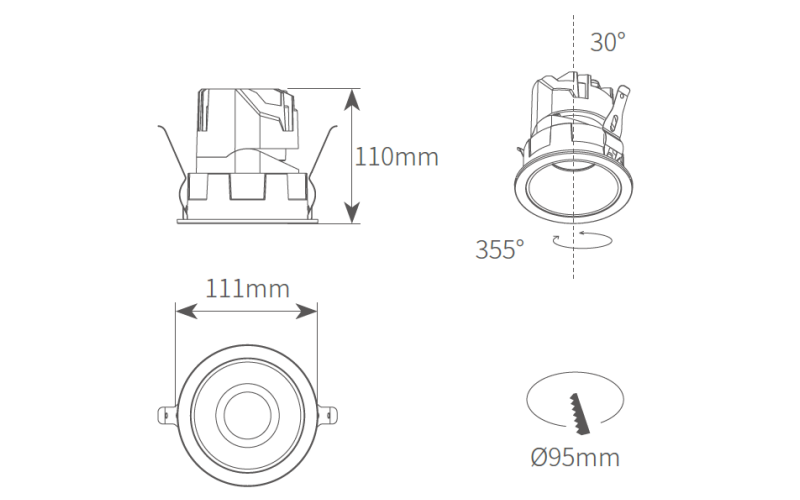

Size and drawing

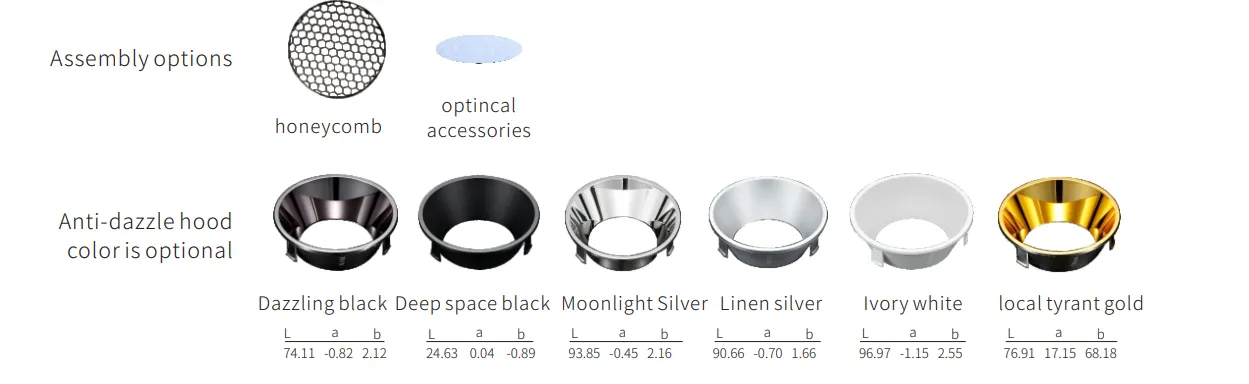

Accessories
Datasheet
