Circular IP65 Trimmed Architectural Downlight Series 20-35W

Product Number: BDL7520-A, BDL9535-A

Product Details

Description

The KWT Circular IP65 Trimmed Commercial Series is engineered for high-density commercial lighting layouts. Covering 20W to 35W across two models, this commercial downlight uses a durable die-cast aluminum frame for quick, fault-tolerant installation. Its deep anti-glare design (UGR<11) ensures visual comfort in high-traffic retail environments, while the IP65 waterproof structure allows safe deployment in demanding wet zones. With modular onsite interchangeable 15/24/38/50-degree lenses and >90Lm/W efficacy, it significantly lowers installation labor, inventory costs, and long-term maintenance expenses.

Specification

Circular IP65 Trimmed Architectural Downlight Series 20-35W
Product code	BDL7520-A	BDL9535-A
Power	20W	35W

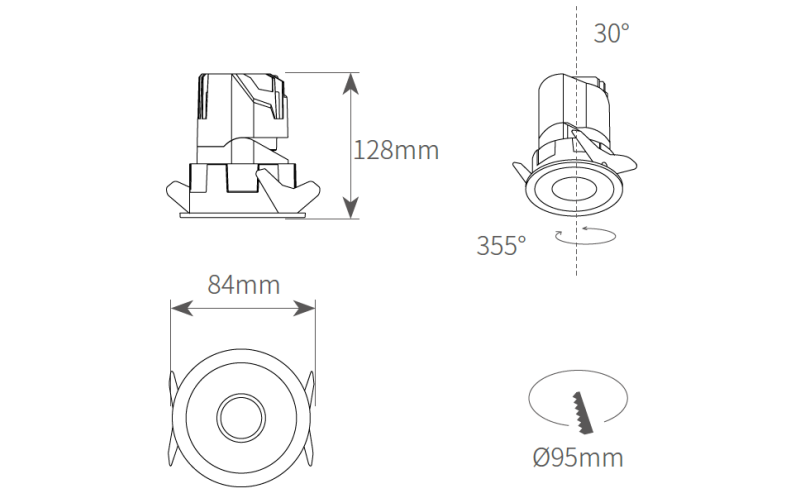

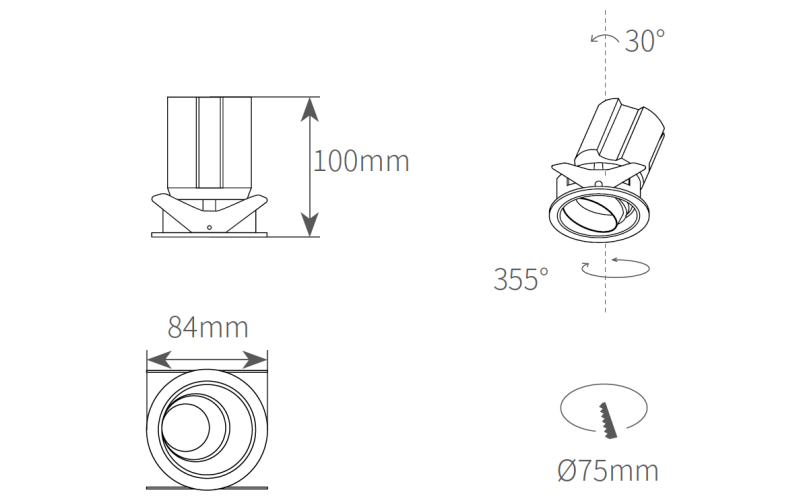

Size	D84*H100mm	D95*H128mm
Cut out	75mm	95mm
Beam angle	15°/24°/38°/50°	15°/24°/38°/50°
Voltage	220-240VAC
Lumen output	Lamp lumen 100Lm/W
CCT	2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
Dimmable	ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee
Optics	Reflector / Lens
LED brand	CITIZEN / CREE
CRI	CRI90+, CRI97+
Color Saturation	Rg=99
SDCM	<3
Materials	Die cast Aluminum
Installation	Recessed
Protection	IP65
Finish	White / Black (Customizable)
Warranty	5 years
