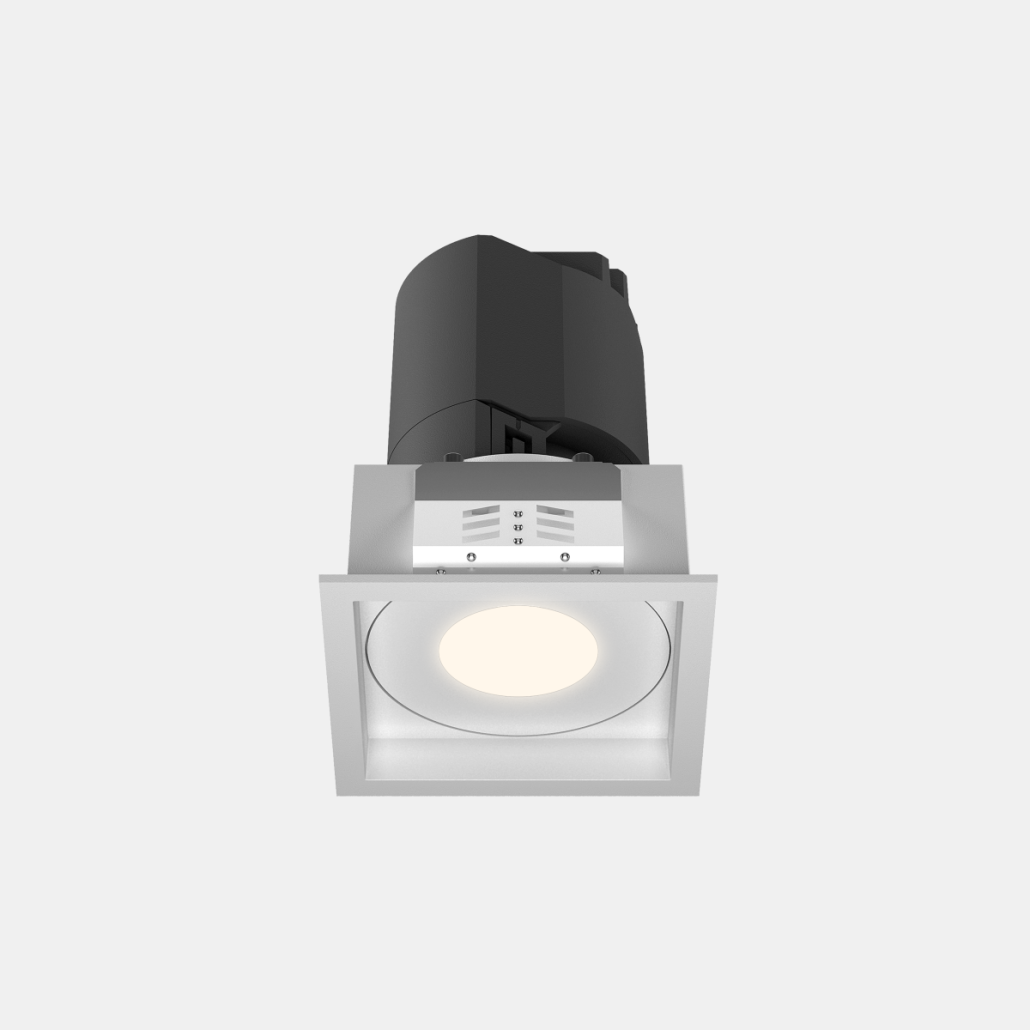

Square IP65 Trimmed Architectural Downlight 12-20W
Product Number: BDLS7512-C, BDLS7520-C
Product Details
Description
The Moluce Square IP65 Trimmed Architectural Series is engineered for high-performance architectural ceilings. Combining BDLS7512-C (12W) and BDLS7520-C (20W), it delivers a dual-power matrix within a unified 85x85mm square frame. The die-cast aluminum housing ensures superior thermal management, while deep anti-glare UGR<11 optics provide exceptional visual comfort. Featuring an IP65 waterproof seal and interchangeable 15/25/35/60-degree lenses, it guarantees reliable operation in humid environments. Multiple optical accessories (honeycomb louver, soft light diffuser, colored anti-glare covers) allow customized light control for premium retail and hospitality spaces.Contact us for project pricing or OEM samples.
Specification
| Square IP65 Trimmed Architectural Downlight 12-20W | ||
| Product code | DLS7512-C | BDLS7520-C |
| Power | 12W | 20W |
| Size | L85*W85*H91mm | L85*W85*H121mm |
| Cut out | 76*76mm | 76*76mm |
| Beam angle | 15°/25°/35°/60° | 15°/25°/35°/60° |
| Voltage | 220-240VAC | |
| Lumen output | Lamp lumen 100Lm/W | |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | |
| Dimmable | ON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee | |
| Optics | Reflector / Lens | |
| LED brand | CITIZEN / CREE | |
| CRI | CRI90+, CRI97+ | |
| Color Saturation | Rg=99 | |
| SDCM | <3 | |
| Materials | Die cast Aluminum | |
| Installation | Recessed | |
| Protection | IP65 | |
| Finish | White / Black (Customizable) | |
| Warranty | 5 years | |

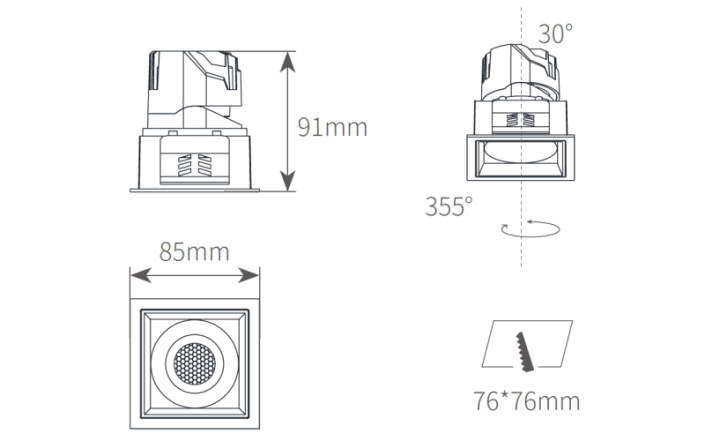

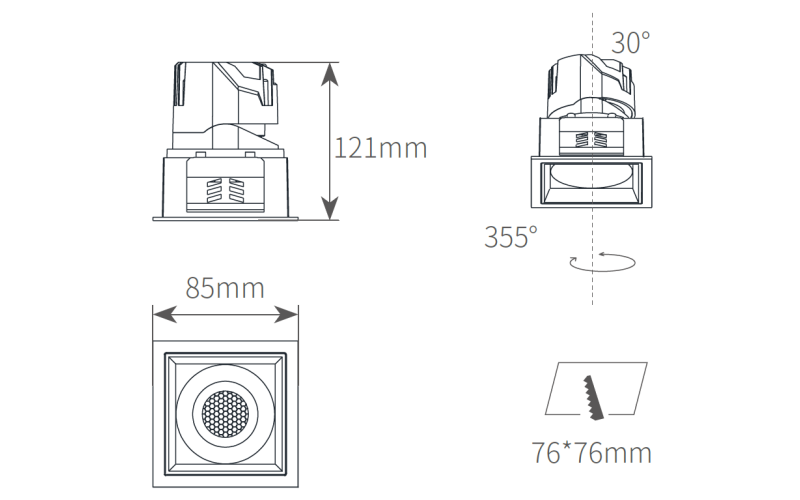

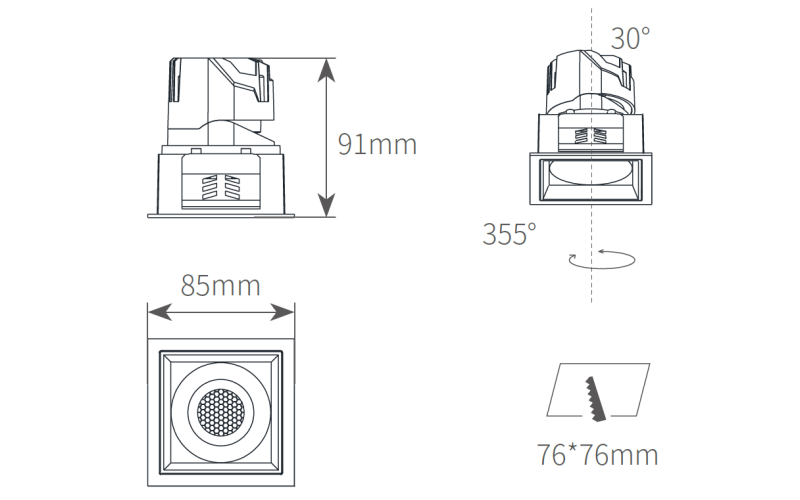

Size and drawing
Accessories
Datasheet
