Product Number: UMS4005F
Quick Info:
CCT: 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
CRI: CRI90+, CRI95+
Full Beam Angle: 15° – 60°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Lamp Efficiency: Lamp lumen 100lm/W
Protection: IP20
Warranty: 3 years

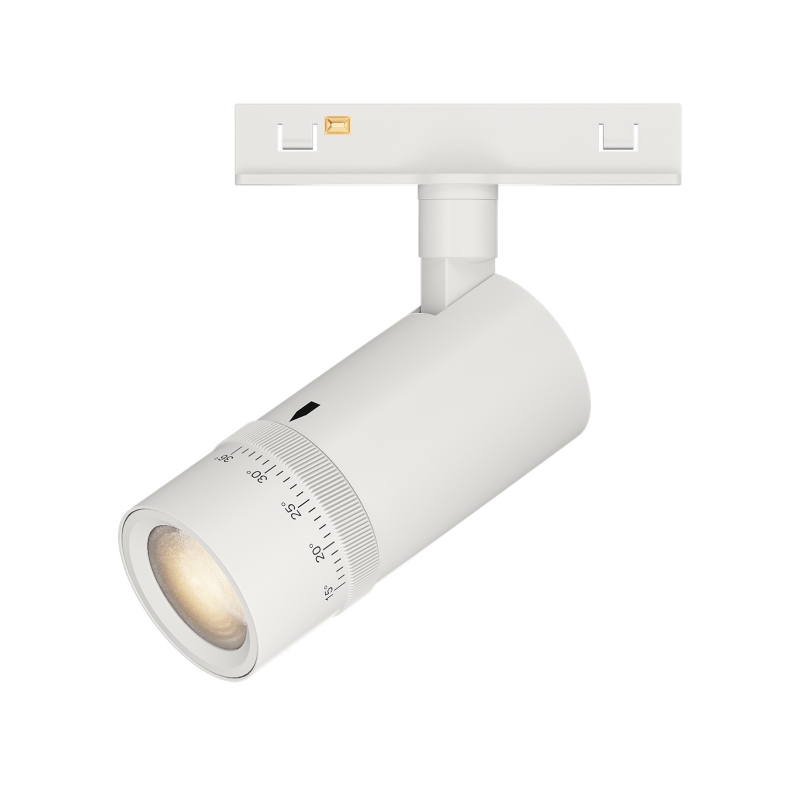

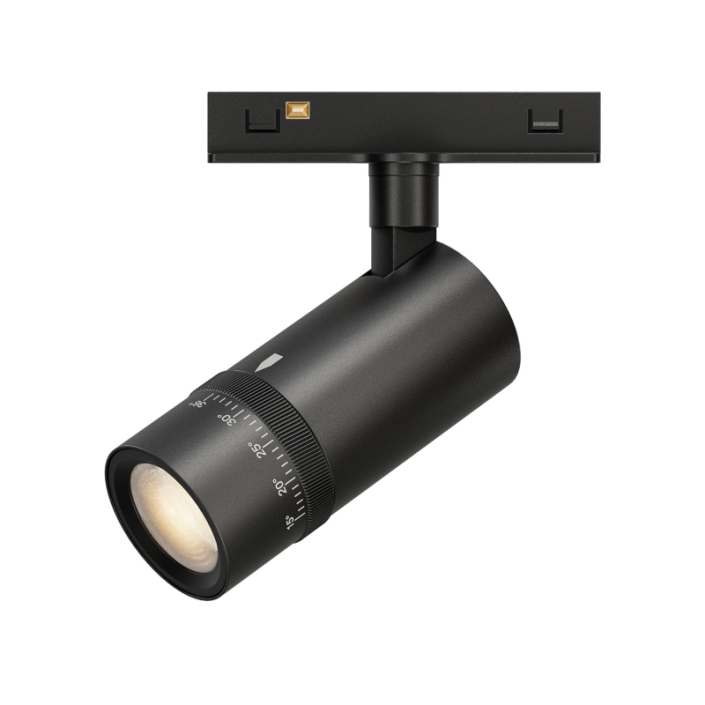

The KWT V7 series introduces an advanced Zoomable Slim Line Track Spotlight (UMS4005F) for low-voltage ecosystems. Engineered for micro profiles, this premium zoomable slim line track spotlight yields a mechanical beam adjusting seamlessly from 15° to 60°. Delivering up to 5W of flicker-free, high CRI>90/95 light with UGR<11, it supports DALI and Triac dimming for modern commercial gallery projects.
| V7 DC48V Zoomable Slim Line Track Spotlight 5W | |
| Product code | UMS4005F |
| Power | 5W |
| Voltage | DC48V |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |

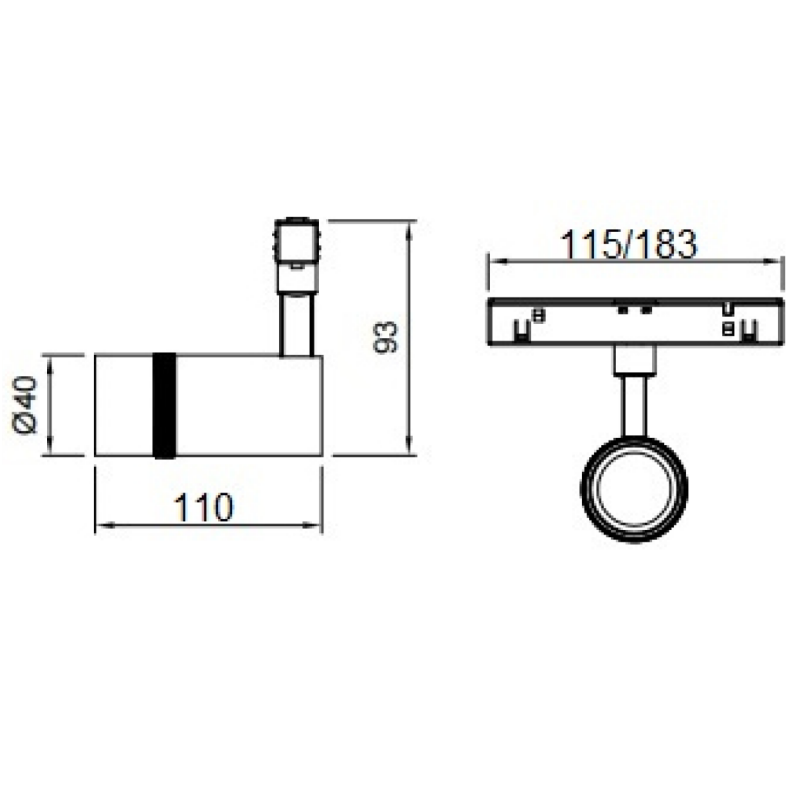

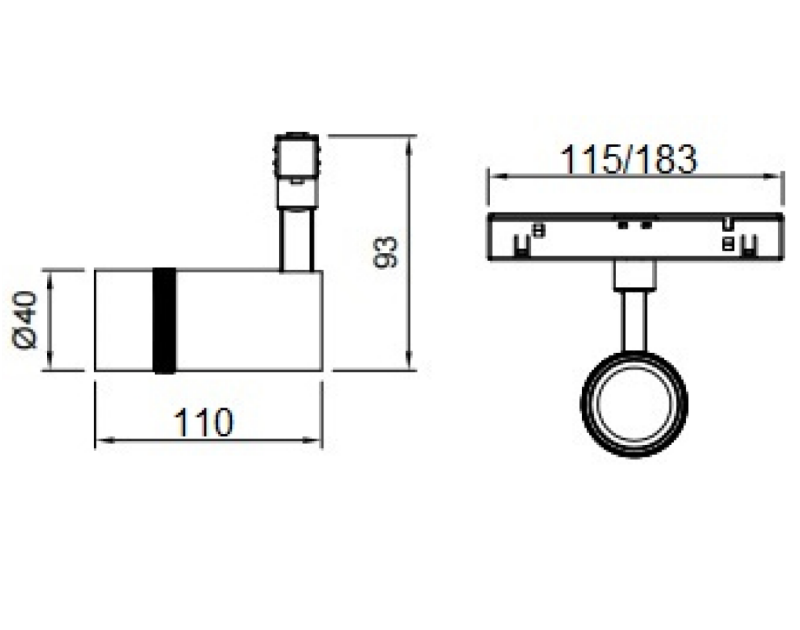

| Size | D40mm x L110mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 15° – 60° |
| Power factor | PF>0.9 |
| CRI | CRI90+, CRI95+ |
| Dimmable | DALI, Triac, 0-10V, Zigbee, Bluetooth |
| Optics | Lens |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 100lm/W |
| Materials | Die cast Aluminum |
| Installation | Track Mounted |
| Protection | IP20 |
| Finish | Black / White |
| Warranty | 3 years |
