Product Number: UMB8002 / UMB1004 / UMS13006
Quick Info:
CCT: 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
CRI: CRI90+, CRI95+
Full Beam Angle: 360°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Lamp Efficiency: Lamp lumen 80lm/W
Protection: IP20
Warranty: 3 years
The KWT V7 series introduces a premium solution for ultra slim track lighting layouts. Engineered for micro channels, this thin track lighting system features a surface-plugged opal sphere (UMB8002/UMB1004/UMB13006) with a 360° diffuse glow. Delivering up to 6W of high CRI>95 flicker-free light, the shatterproof round lamp supports DALI and Triac dimming for modern architectural automation.
| V7 DC48V Architectural Ultra Slim Track Lighting Ball Fixture 2-6W | |||
| Product code | UMB8002 | UMB1004 | UMB13006 |
| Power | 2W | 4W | 6W |
| Voltage | DC48V | ||
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K | ||

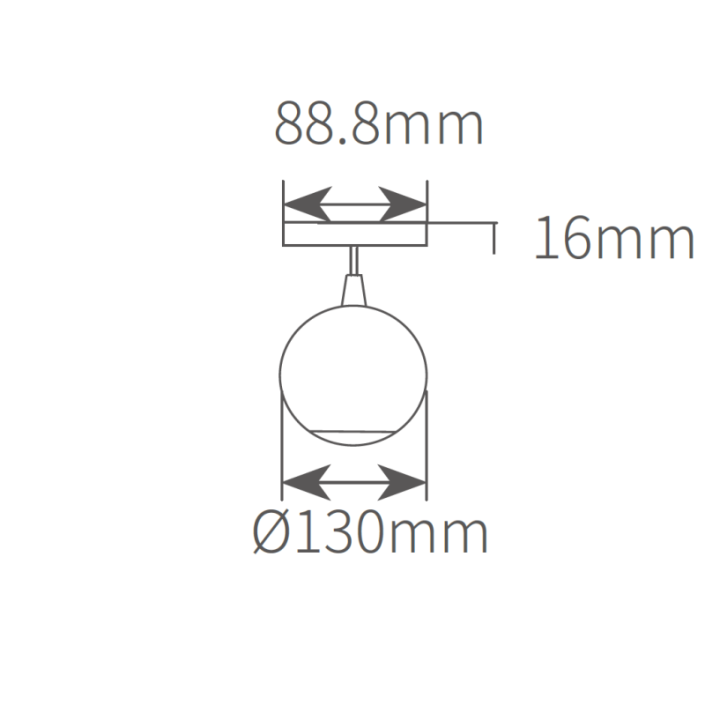

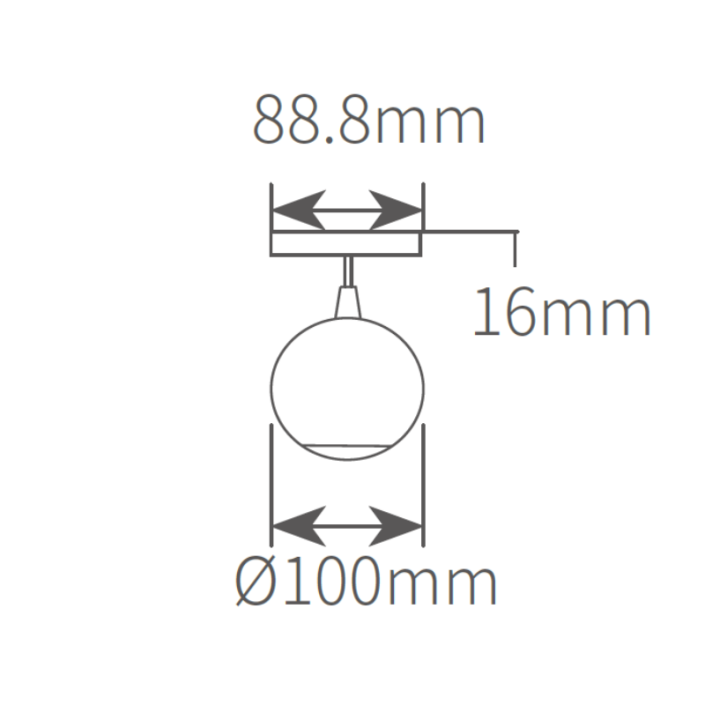

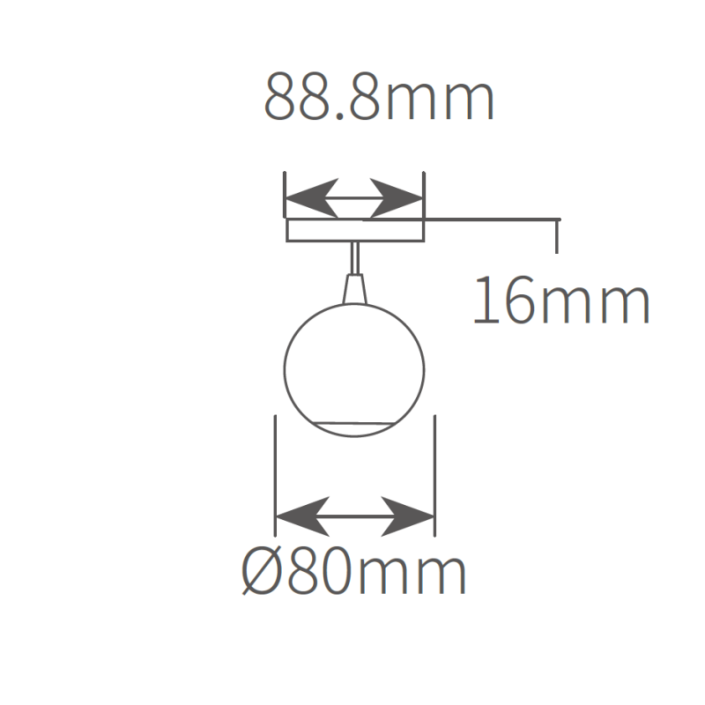

| Size | D80mm | D100mm | D130mm |
| Color tolerance | SDCM＜3 | ||
| Beam angle | 360° | ||
| Power factor | PF>0.9 | ||
| CRI | CRI90+, CRI95+ | ||
| Dimmable | DALI, Triac, 0-10V, Zigbee, Bluetooth | ||
| Optics | Diffuser | ||
| Color Accuracy | Rf≥92 | ||
| Color Saturation | Rg=99 | ||
| Lumen output | Lamp lumen 80lm/W | ||
| Materials | Die cast Aluminum, Acrylic | ||
| Installation | Track Mounted | ||
| Protection | IP20 | ||

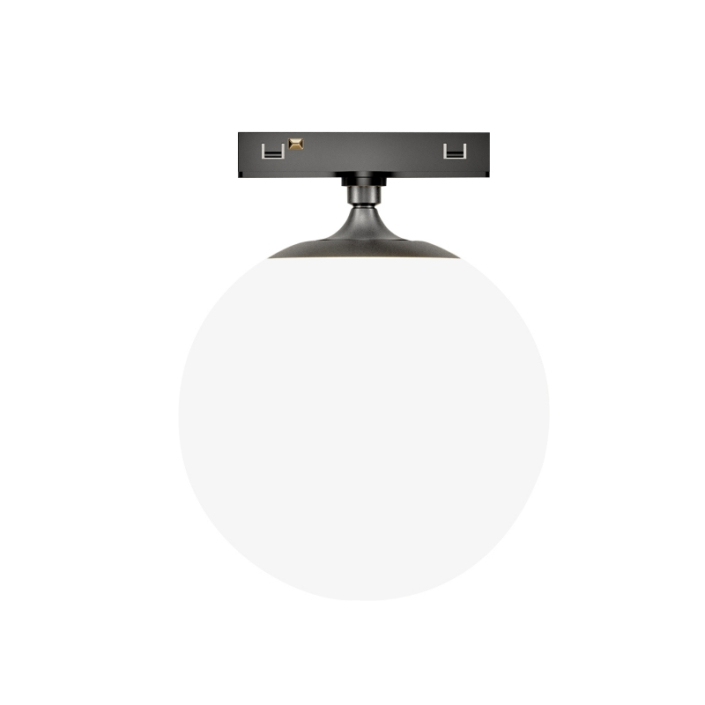

| Finish | Black / Golden | ||
| Warranty | 3 years | ||
