5mm Slim Track Core with PC Channel & Copper Bars

5mm Slim Track Core – The Insulated Power Backbone for Ultra-Minimalist Lighting

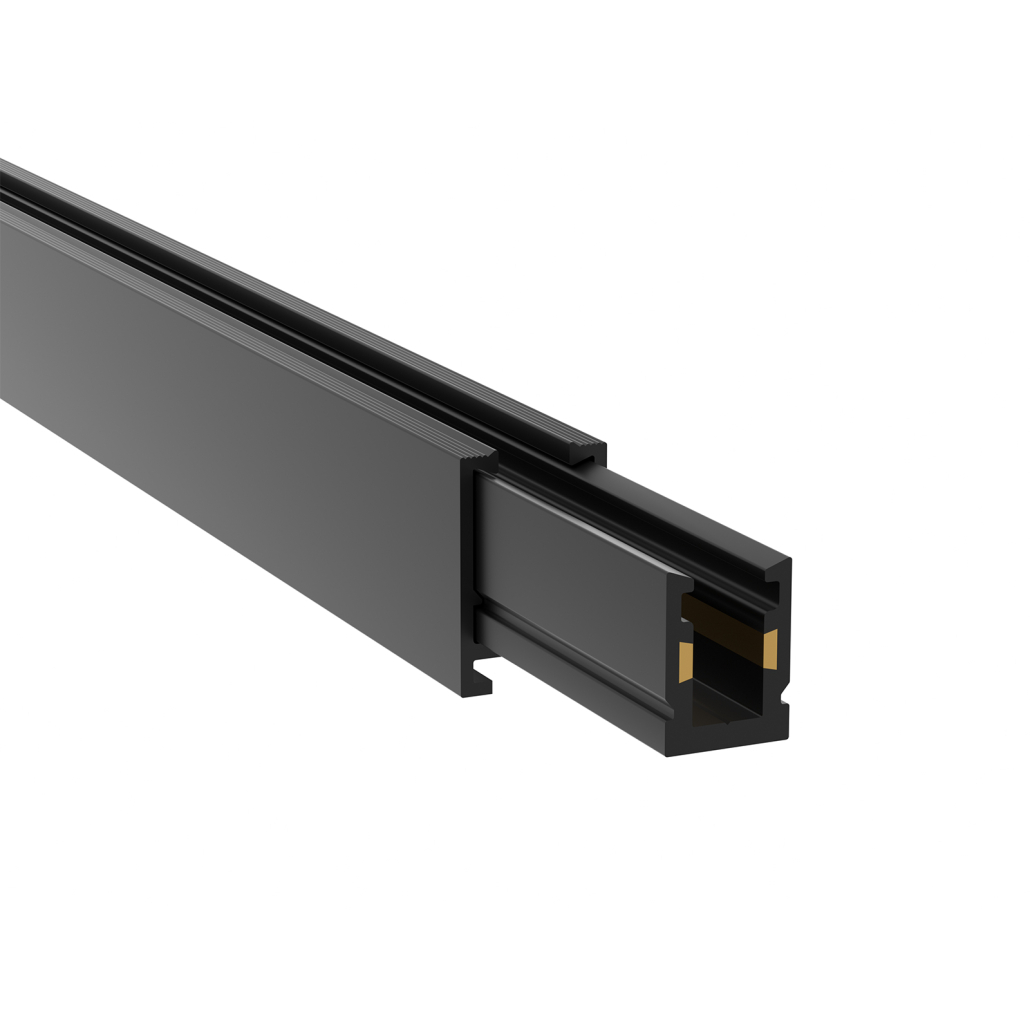

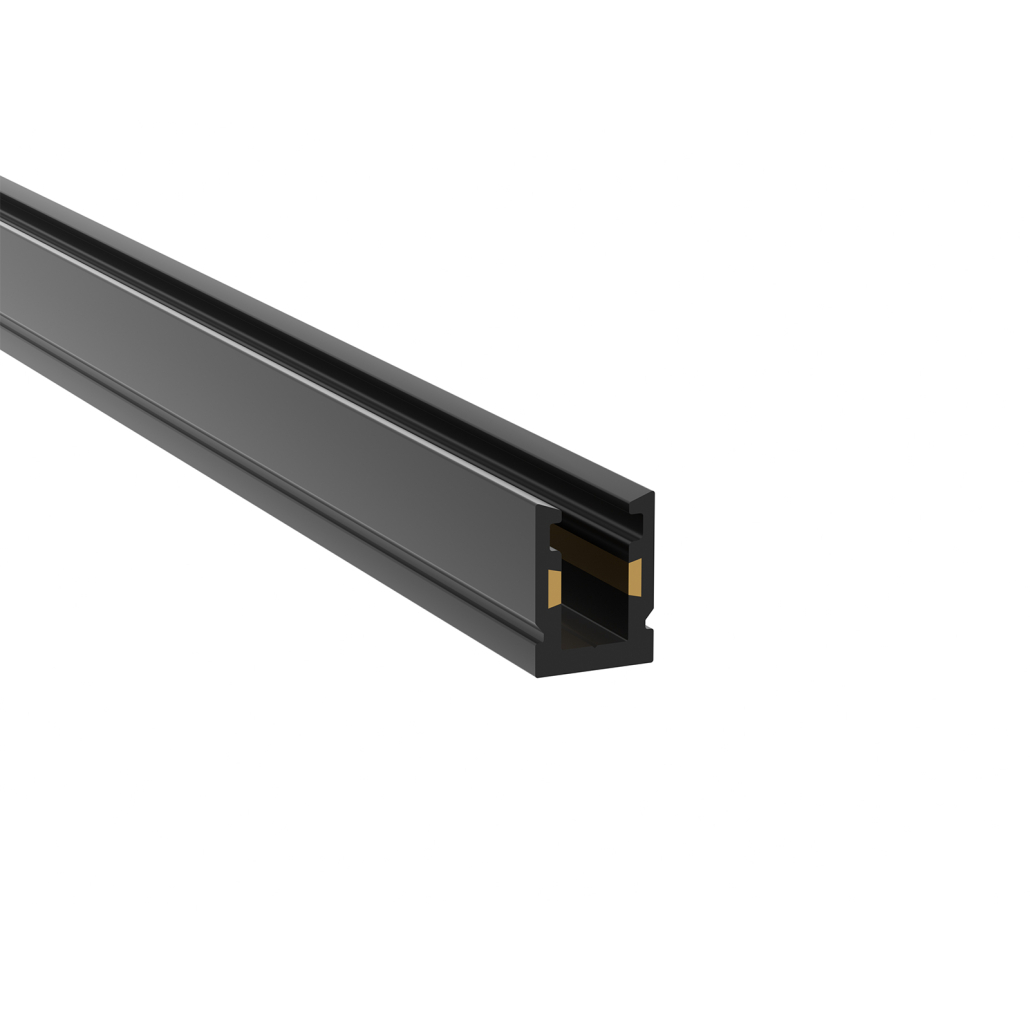

The URC1000A / URC1500A / URC2000A 5mm Slim Track Core is the fundamental insulated base for the V7 Ultra-Slim Track Rail system. Precision-engineered with a robust PC insulation channel and high-conductivity copper conductor bars, this core ensures safe, efficient, and flicker-free 48V power transmission for a wide range of architectural lighting applications.

Ultra-Slim Precision for Refined Spaces

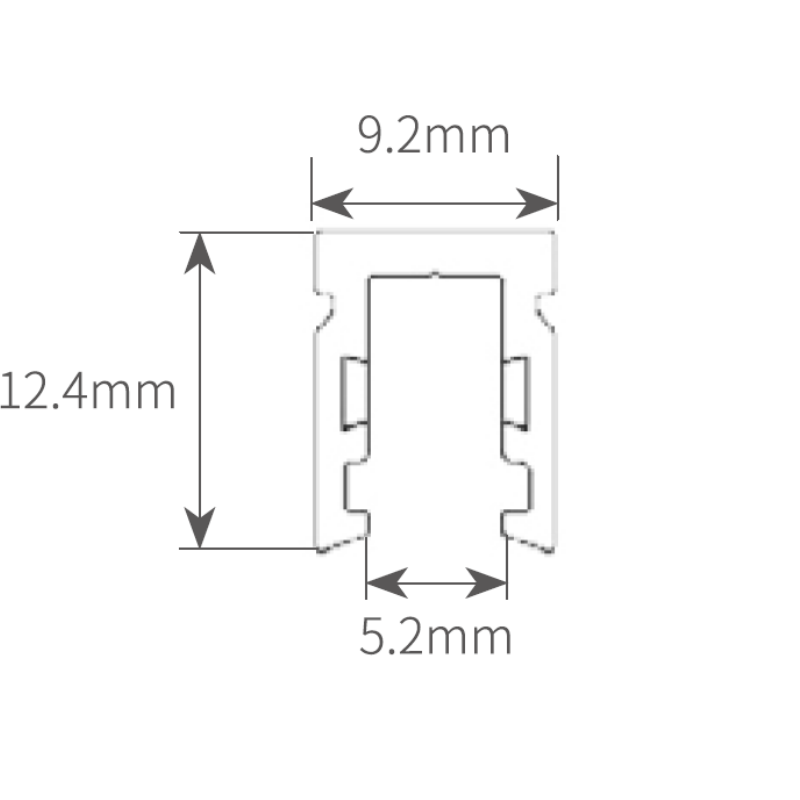

With a compact cross-section of 12.4mm in height and 9.2mm in width (with a 5.2mm bottom profile), this track core is specifically engineered for installation on glass surfaces, display cabinet interiors, and extremely narrow architectural reveals. Its ultra-slim design creates a near-invisible line when installed, preserving the purity of modern minimalist interior design.

Versatile Lengths & Customizable Integration
To accommodate diverse project demands, this PC channel is offered in three standard lengths: 1000mm, 1500mm, and 2000mm. It seamlessly allows for continuous linear extensions to create immersive, uninterrupted illumination. The core is available in classic Black and White finishes, giving lighting designers the ultimate flexibility to match ceiling or structural tones.

Built for Professional & Commercial Environments
The PC insulation material provides exceptional electrical safety, thermal stability, and long-term durability, making it suitable for high-end commercial spaces, boutique retail stores, and luxury residences. Designed to work in tandem with the V7 series cover profiles, this core forms a secure, reliable, and completely isolated lighting conduit that meets the rigorous standards of professional architectural installations. Enhance your smart track lighting project with this functional and structural masterpiece.
