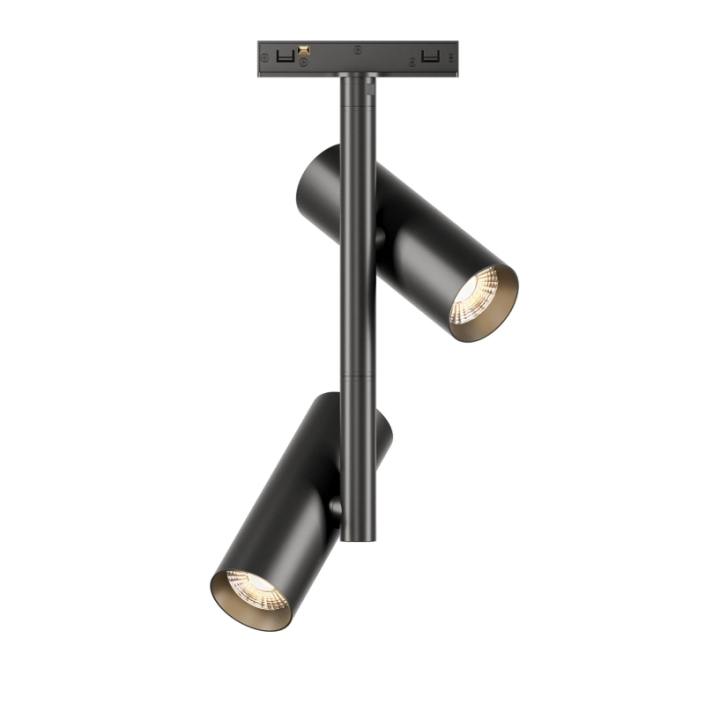

KWT-UMS4016-Black matte twin-head spotlight for 48V track, featuring dual pivoting heads for versatile directional gallery illumination.
KWT-UMS4016-Black matte twin-head spotlight for 48V track, featuring dual pivoting heads for versatile directional gallery illumination.
KWT-UMS4016-Black matte twin-head spotlight for 48V track, featuring dual pivoting heads for versatile directional gallery illumination.

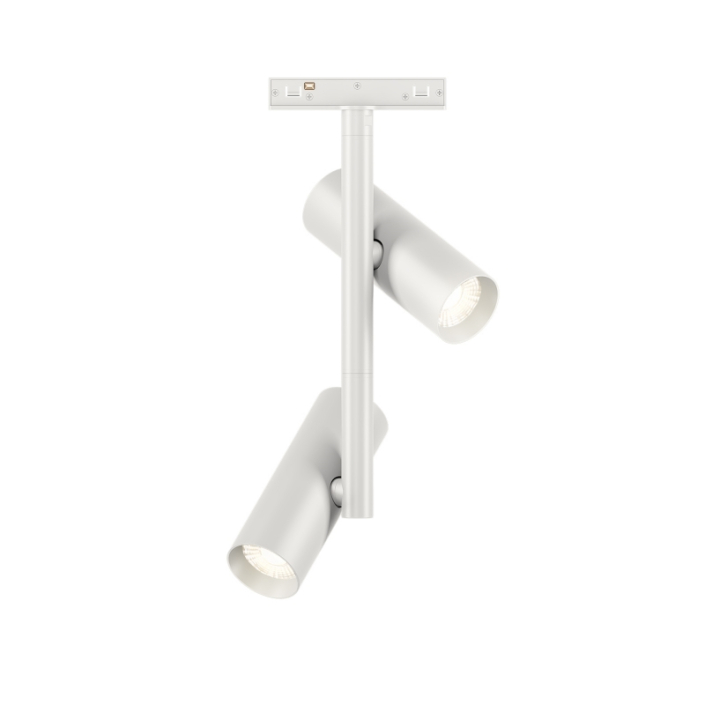

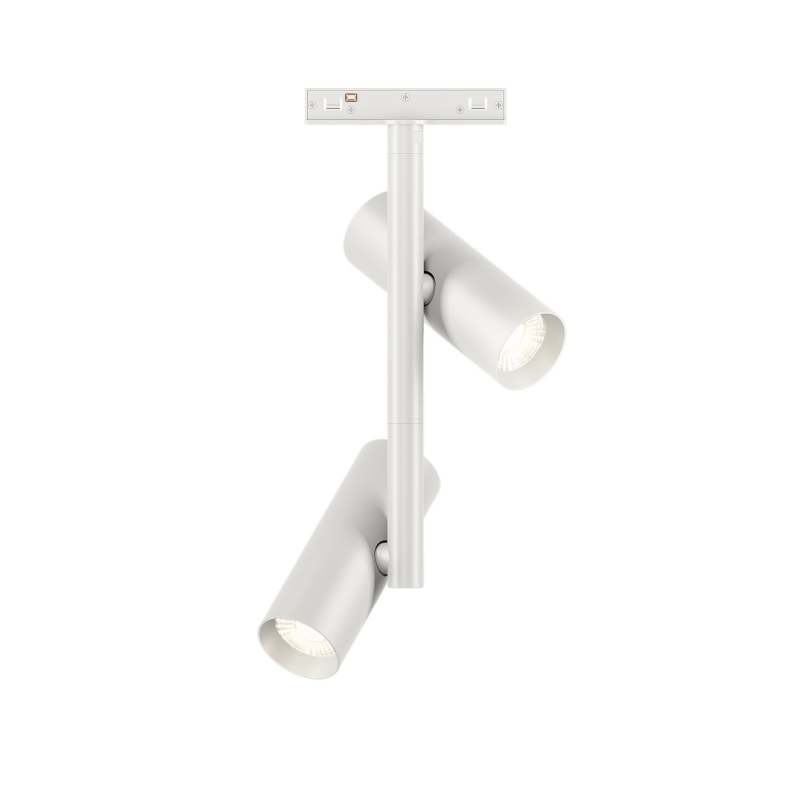

KWT-UMS4016-White modern dual-head LED track light design with a sleek aluminum finish, perfectly integrated into high-end commercial interiors.
KWT-UMS4016-White modern dual-head LED track light design with a sleek aluminum finish, perfectly integrated into high-end commercial interiors.
Technical dimension drawing of the UMS4016 twin-head track spotlight, detailing the 265.0mm body height, 88.8mm base width, and adjustable joint angles.
Technical dimension drawing of the UMS4016 twin-head track spotlight, detailing the 265.0mm body height, 88.8mm base width, and adjustable joint angles.

V7 DC48V Shapeable LED Framing Spotlight 15W

Product Number: UMS4015FS

Quick Info:

CCT:                          2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K

CRI:                           CRI90+, CRI95+

Full Beam Angle:     15° – 60°

Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee

Lamp Efficiency:      Lamp lumen 100lm/W

Protection:                IP20

Warranty:                   3 years

Send inquiry WhatsApp

Product Details

Description

This Adjustable 48V Twin-Head Spotlight delivers 18W high-quality light with CRI>90/95, ensuring vivid colors. With 15°/24°/36° beams and 2700K-6000K CCT, it precisely highlights art, floral, and retail items. Built from durable aluminum, it supports DALI, Triac, 0-10V, and Bluetooth dimming. Available in black/white for sophisticated commercial interiors.

Specification

V7 Adjustable DC48V Twin-Head Spotlight 16W
Product codeUMS4016
Power16W
VoltageDC48V
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeD40mm x H265mm
Color toleranceSDCM＜3
Beam angle15° / 24° / 36°
Power factorPF>0.9
CRICRI90+, CRI95+
DimmableDALI, Triac, 0-10V, Zigbee, Bluetooth
OpticsLens
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 100lm/W
MaterialsDie cast Aluminum
InstallationTrack Mounted
ProtectionIP20
FinishBlack / White
Warranty3 years

Size and drawing

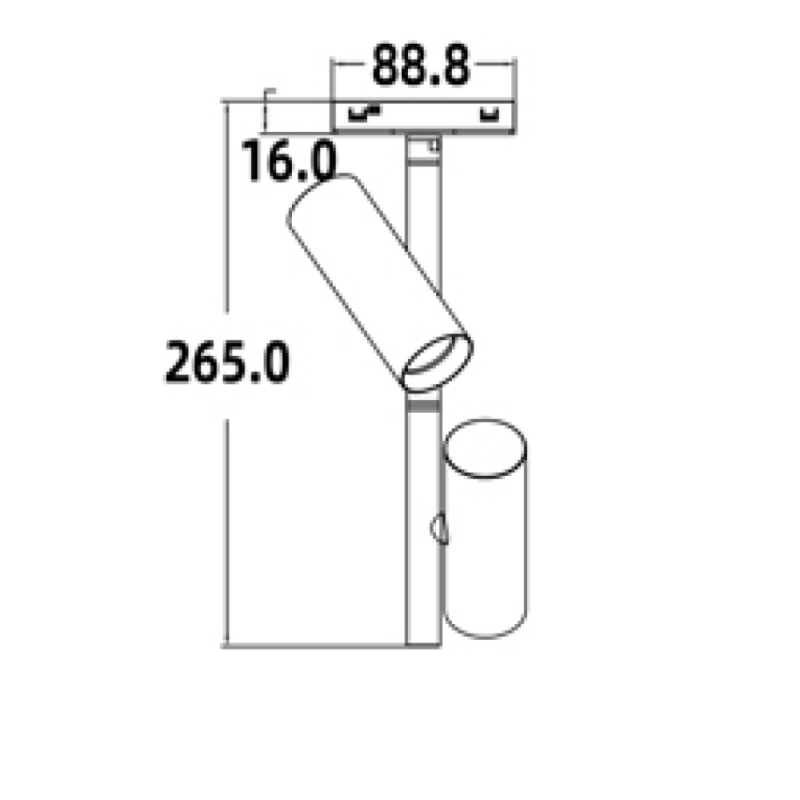

Technical dimension drawing of the UMS4016 twin-head track spotlight, detailing the 265.0mm body height, 88.8mm base width, and adjustable joint angles.

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
