Product Number: SRC-F
Quick Info:
Input Voltage: DC24V/DC48V
Installation: Recessed/Pendant
Materials: Die cast Aluminum

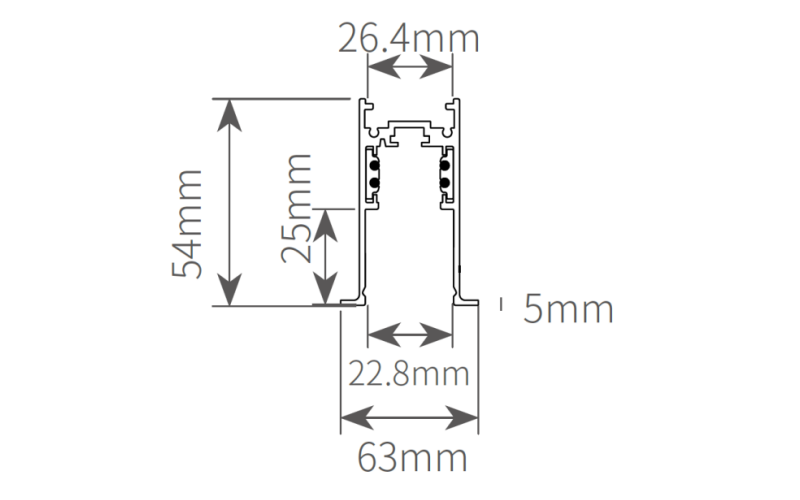

size: L500mm/1000mm/1500mm/2000mm/3000mm*W31*H54mm (Customizable)
Warranty: 3 years

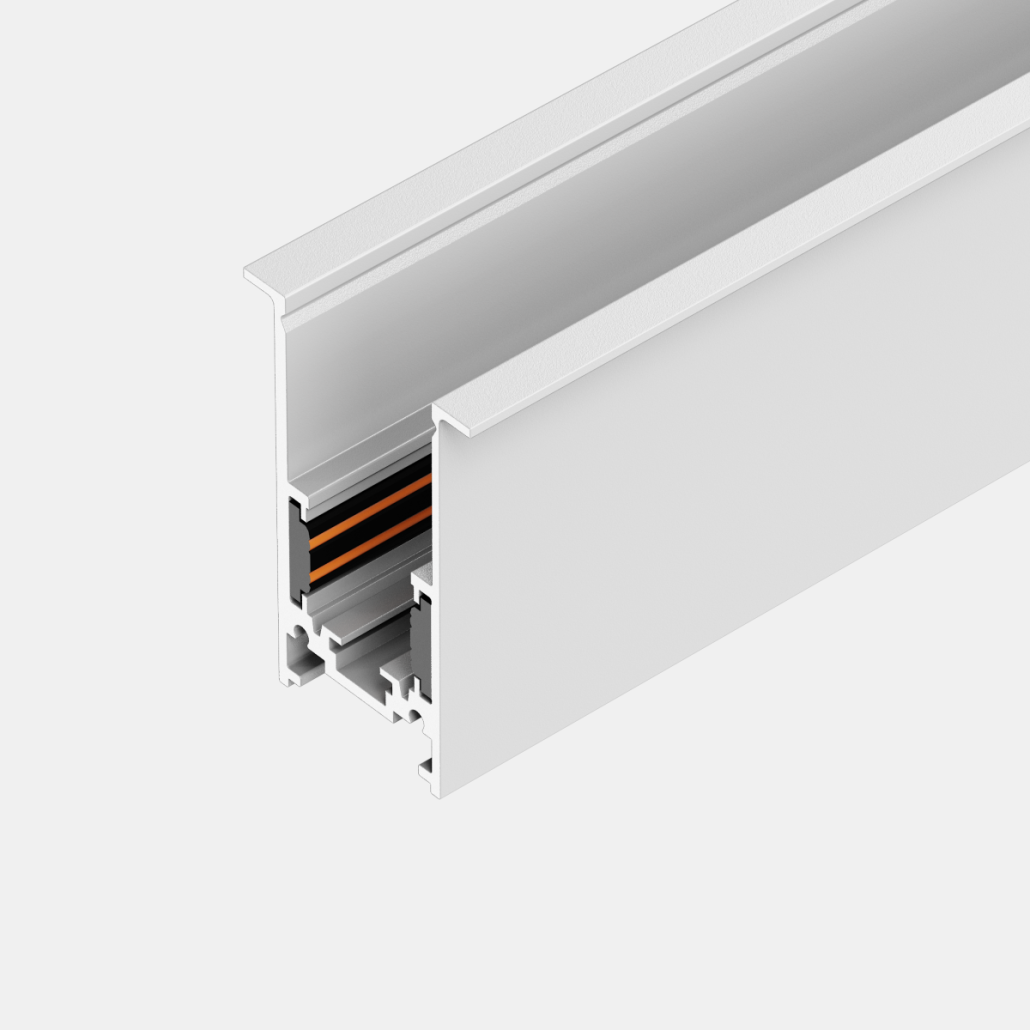

The SRC-F recessed magnetic track rail is a heavy-duty commercial backbone engineered for large-scale retail stores, exhibition halls, and expansive office environments. Rated for a maximum power load of 768W on 24/48V DC, it supports continuous structural runs of up to 40 meters, ensuring stable and reliable low-voltage distribution across vast ceiling spaces. Available in standard 1000mm, 1500mm, and 2000mm lengths, it minimizes onsite cutting waste and allows contractors to precisely plan large lighting grids. The integrated 5mm face trim adds a professional finish, while its complete modular compatibility with the STC9001F to STC9005F connector series enables rapid, solderless assembly of complex cross-grid and U-shaped layouts, drastically reducing installation labor and downtime for commercial project contractors.
Robust 768W Output and 40m Long-Distance Stability: Offering a massive 768W total capacity and allowing seamless continuous runs up to 40 meters, this track guarantees consistent low-voltage power supply for large-scale commercial retail displays without the risk of line loss at the end of the run.
Solderless STC9001F-9005F Modular Grid Assembly: Fully compatible with a professional range of straight, L-shaped, T-shaped, and cross connectors, this rail enables onsite contractors to rapidly assemble intricate, multi-directional ceiling grids without any complex wiring or soldering.
Flexible 1000-2000mm Length Options for Minimal Waste: Available in standard factory lengths of 1000mm, 1500mm, and 2000mm, this track allows project managers to select exact dimensions to fit specific ceiling layouts, significantly minimizing material waste and reducing on-site cutting time.
Safe 24/48V Low-Voltage DC Track Platform: Operating on industry-standard 24V or 48V DC low-voltage systems, this track ensures maximum electrical safety for installers and end-users, making it suitable for high-traffic commercial venues and public spaces without requiring high-voltage power conduits.
Contact us for project pricing or OEM samples.
| SRC-F 768W Commercial Recessed Magnetic Track System | |||
| Product code | SRC-F | ||
| Input Voltage | DC24V, DC48V | ||
| Size | L500mm/1000mm/1500mm/2000mm/3000mm*W22.8*H54mm (Customizable) | ||
| Materials | Die cast Aluminum | ||

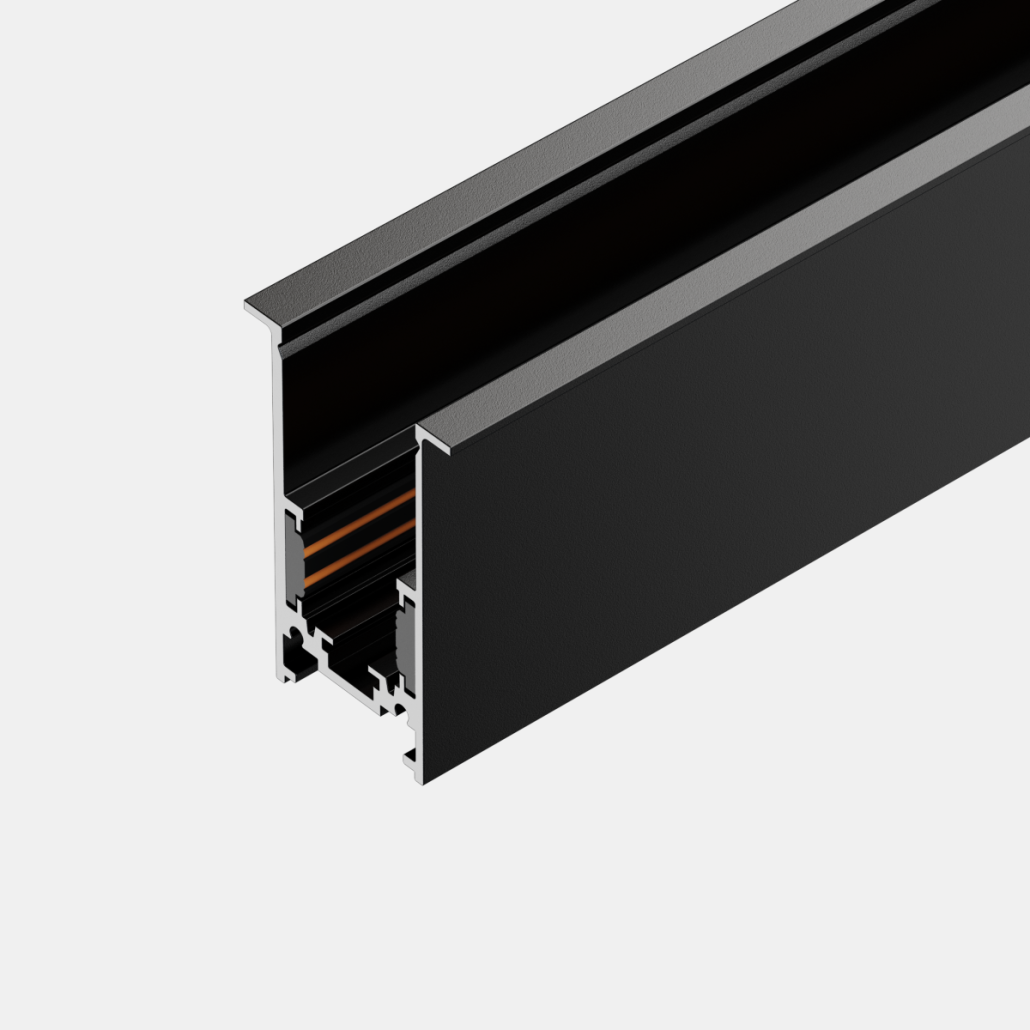

| Finish | Black/White (Customizable) | ||
| Installation | Recessed/Pendant | ||
| Warranty | 3 years | ||
