Product Number: SMS1224
Quick Info:
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90, CRI>97
Full Beam Angle: Single CCT: 15°/30°/45° Tunable white: 24°/36°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 80Lm/W
Protection: IP20
Warranty: 3 years

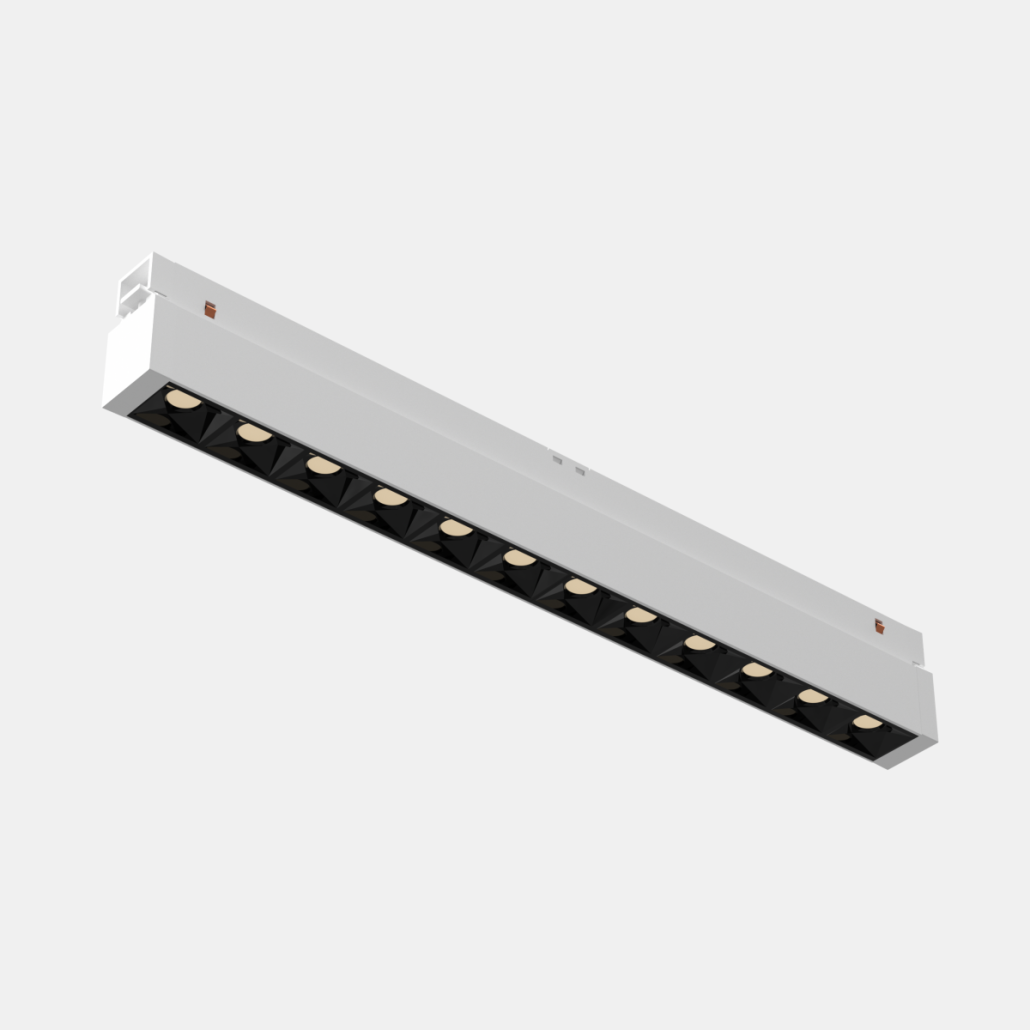

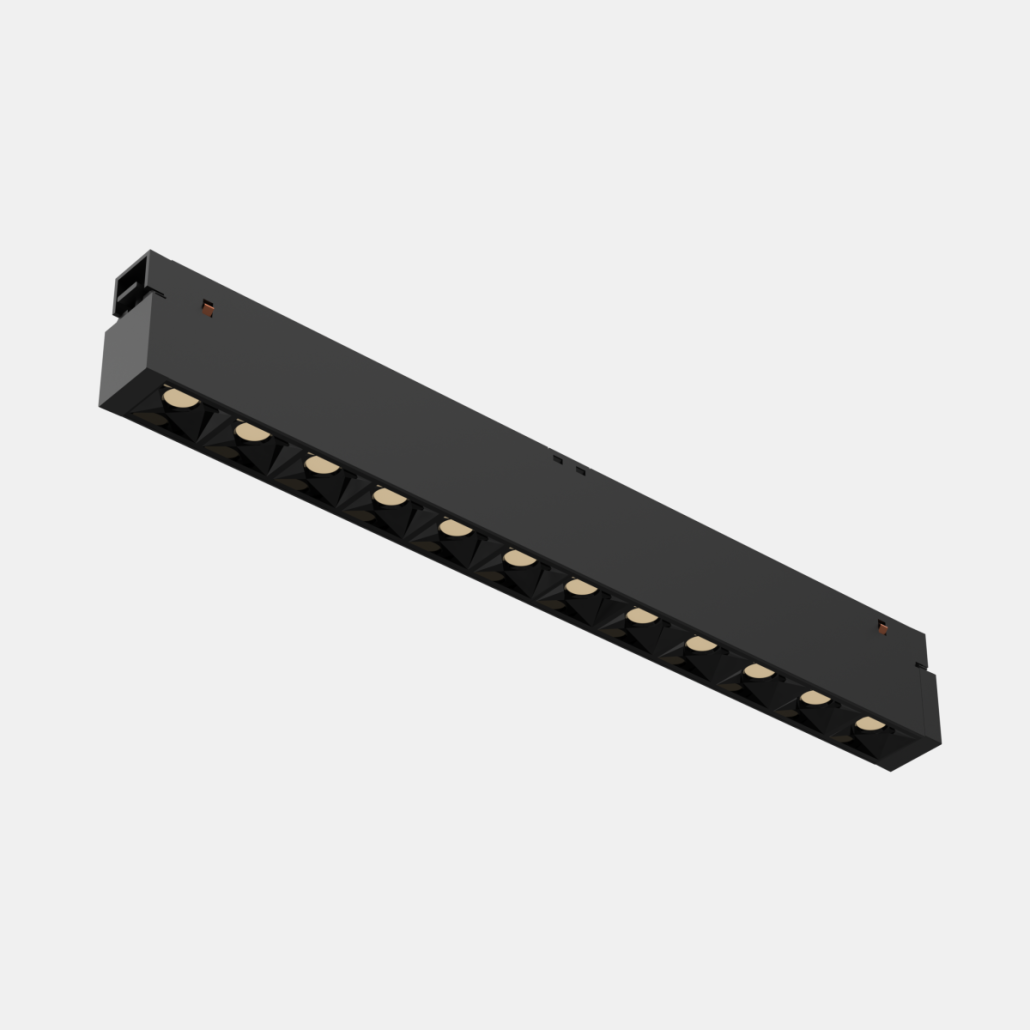

The SMLS1224 12-24W high CRI architectural magnetic grille light is engineered for high-end art galleries and cultural exhibition spaces where color integrity is paramount. Achieving outstanding CRI>97, Rf≥92, and Rg≥99 with SDCM<3, it flawlessly reproduces the subtle textures and hues of fine paintings. Its deep grille design provides an ultra-low glare (UGR) effect, while the 1800K-6500K Tunable White functionality offers curators precise control to match specific lighting temperatures to various exhibition themes and artwork periods.
| SMLS1224 High CRI Architectural Magnetic Light 12- 24W | |
| Product code | SMLS1224 |
| Power | 12W/24W |
| Voltage | 24VDC/48VDC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |

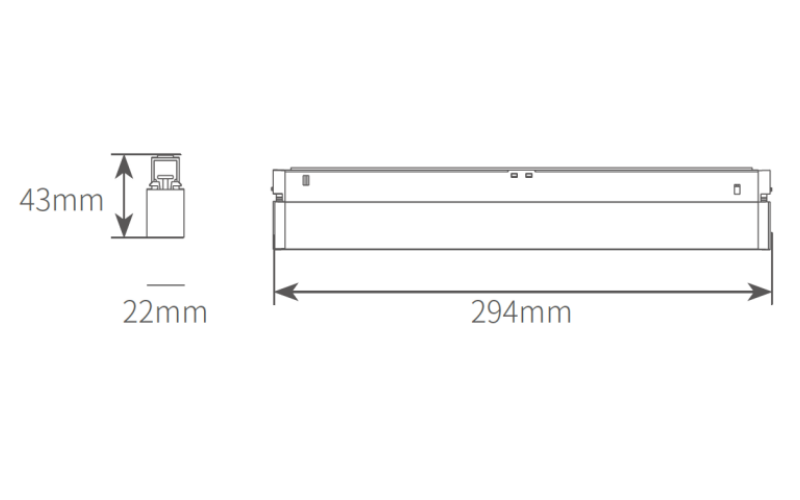

| Size | L294*W22*H43mm |
| Color tolerance | SDCM＜3 |
| Beam angle | Single CCT: 15°/30°/45° Tunable white: 24°/36° |
| Power factor | PF>0.9 |
| CRI | CRI90+, CRI97+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 80lm/W |
| Materials | Die cast Aluminum |
| Installation | Track Mouted |
| Protection | IP20 |
| Finish | White / Black (Customizable) |
| Warranty | 3 years |
