Product Number: SRC-U
Quick Info:
Input Voltage: DC24V/DC48V
Installation: Pendant
Materials: Die cast Aluminum
size: L500mm/1000mm/1500mm/2000mm/3000mm*W26.4*H77.5mm (Customizable)
Warranty: 3 years

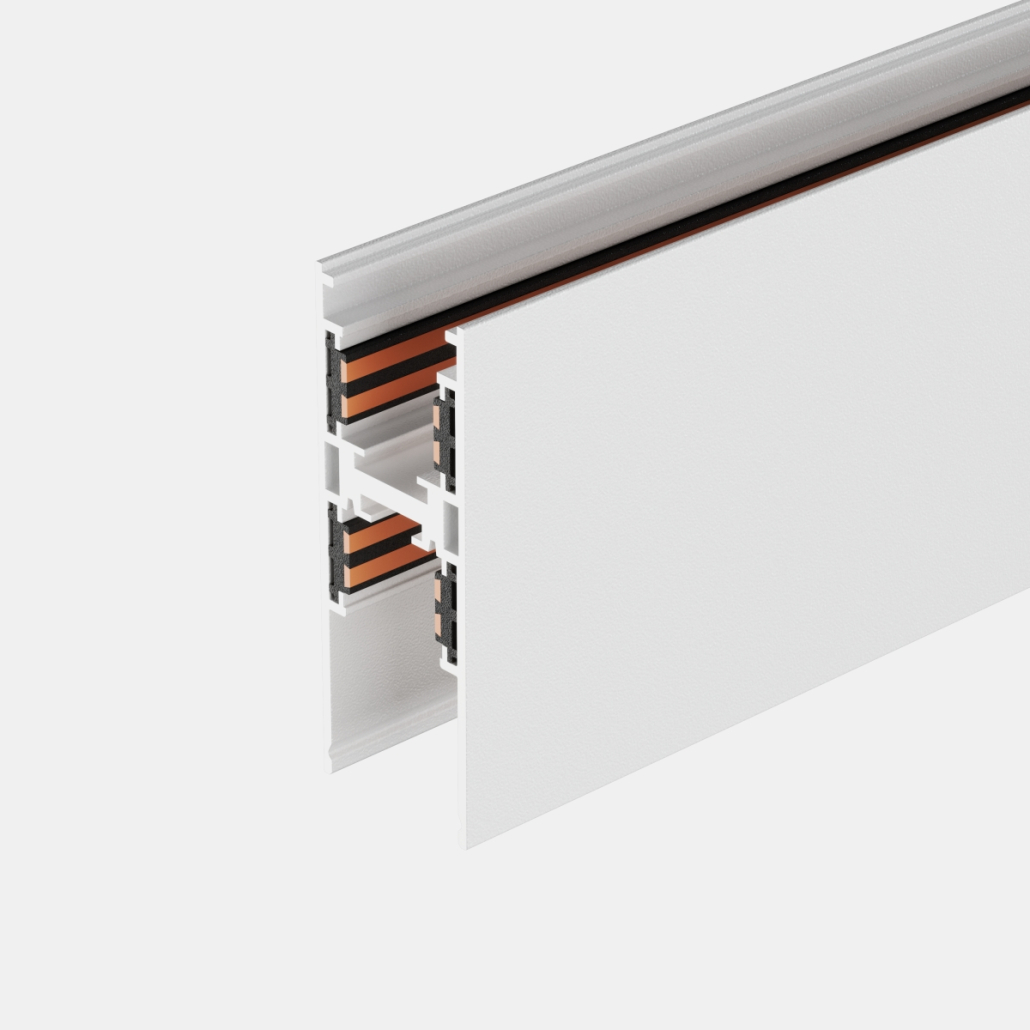

The SRC-U up and down pendant magnetic track rail is a heavy-duty architectural foundation engineered for expansive commercial retail stores and office spaces. Featuring a robust 75.7mm high profile crafted from 6063-T5 aluminum, it provides exceptional structural stability while discreetly concealing power cables. Supporting a massive 768W maximum load on 24/48V DC systems across 1000mm to 2000mm lengths, it efficiently powers extensive linear lighting grids. This high-capacity rail is the ultimate solution for large-scale commercial projects requiring stable, uninterrupted low-voltage power distribution.
Heavy-Duty 75.7mm Aluminum Profile for Concealed Wiring: The 75.7mm heightened aluminum extrusion provides ample internal space to completely hide power supply cables and drivers within the track itself, ensuring a pristine, uncluttered architectural appearance for commercial installations.
768W Maximum Load for Extensive System Powering: Offering a robust 768W total system capacity under 24/48V DC, this track guarantees stable power delivery to an extensive array of magnetic modules across long runs without experiencing significant voltage drops.
1000mm to 2000mm Customizable Length Options: Available in precise 1000mm, 1500mm, and 2000mm standard lengths, this track allows contractors to minimize onsite cutting waste and precisely plan lighting layouts for standard commercial project specifications.
Seamless Integration with V4 Magnetic System Connectors: Fully compatible with the V4 system’s L-shaped, T-shaped, and cross-connector series, it supports the rapid creation of complex, multi-directional lighting grids for large-scale architectural interiors.
Contact us for project pricing or OEM samples.
| SRC-U 75.7mm Up and Down Pendant Magnetic Track Rail | |||
| Product code | SRC-U | ||
| Input Voltage | DC24V, DC48V | ||
| Size | L500mm/1000mm/1500mm/2000mm/3000mm*W22.8*H77.5mm (Customizable) | ||
| Materials | Die cast Aluminum | ||

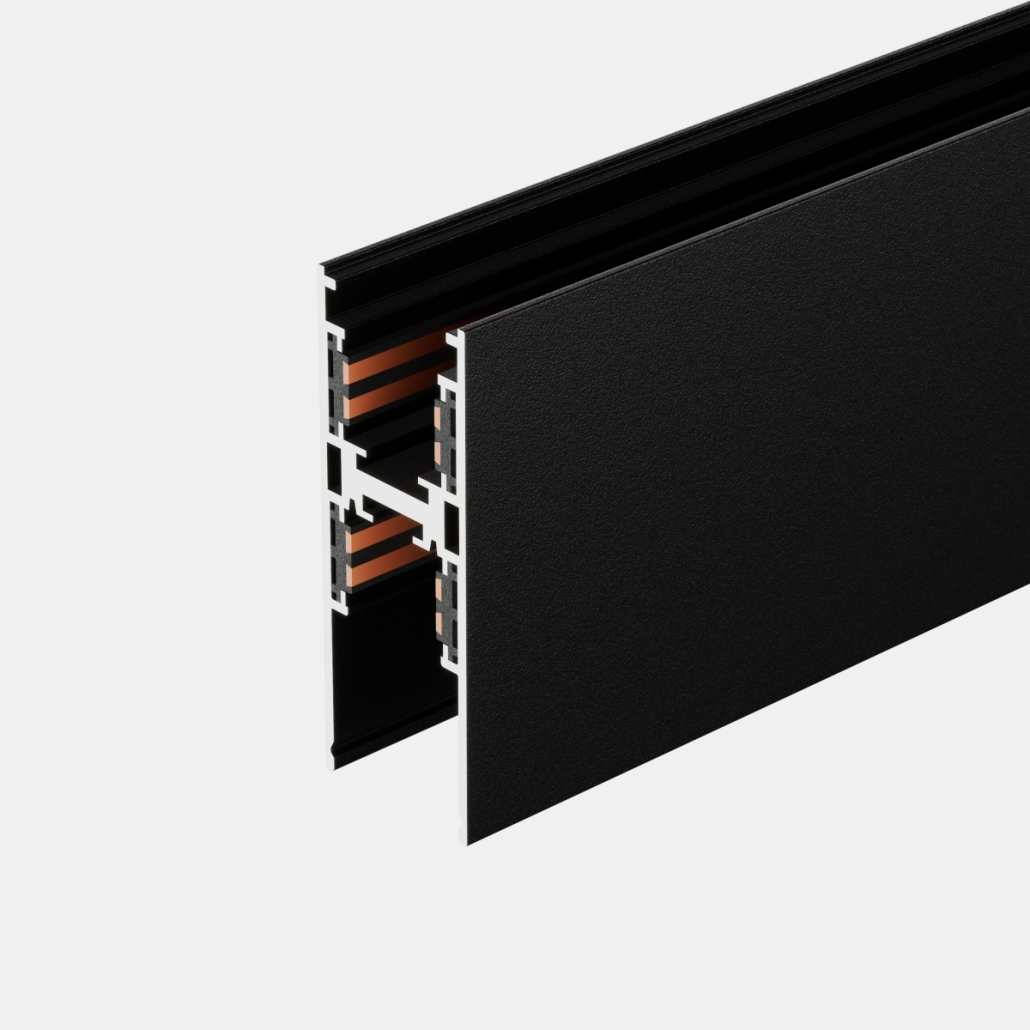

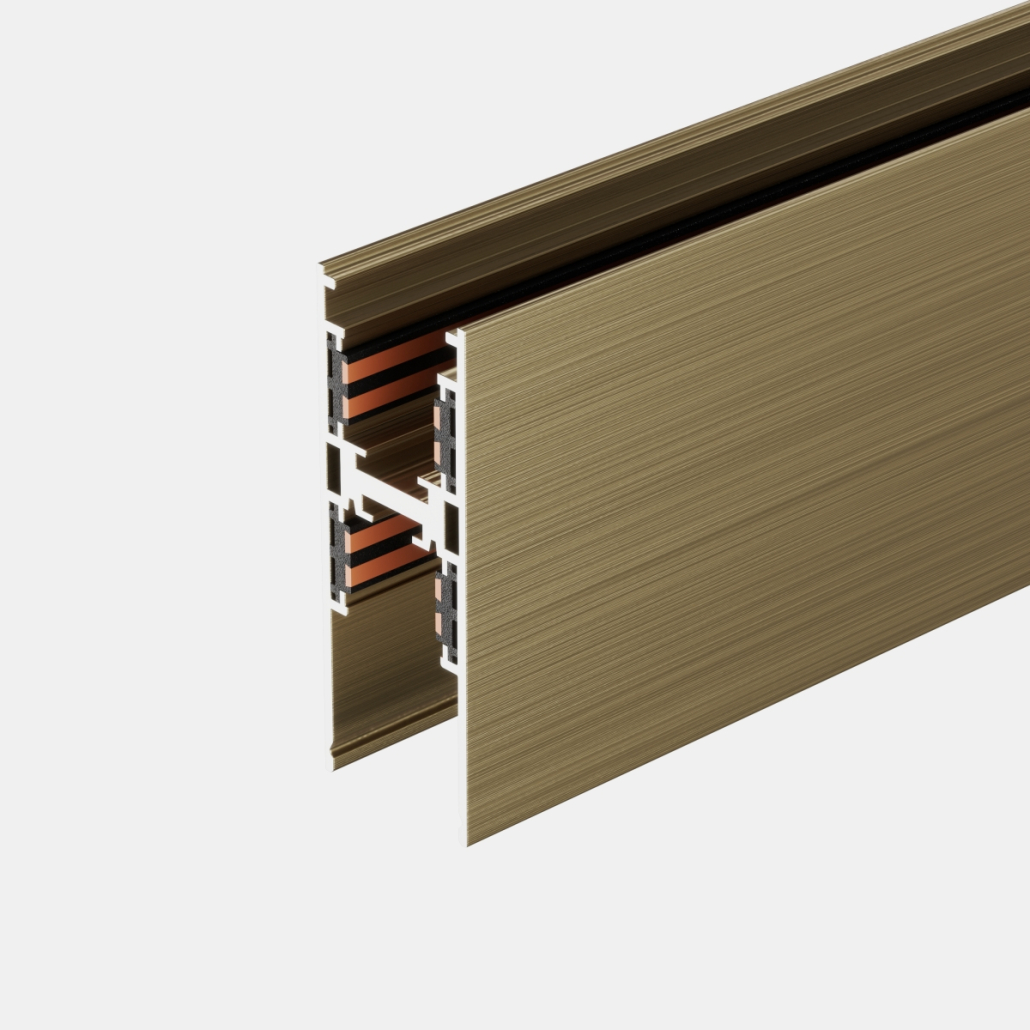

| Finish | Black/White/Brushed copper (Customizable) | ||
| Installation | Pendant | ||
| Warranty | 3 years | ||
