Product Number: SRC-D
Quick Info:
Input Voltage: DC24V/DC48V
Installation: Pendant
Materials: Die cast Aluminum
size: L500mm/1000mm/1500mm/2000mm/3000mm*W31*H54mm (Customizable)
Warranty: 3 years

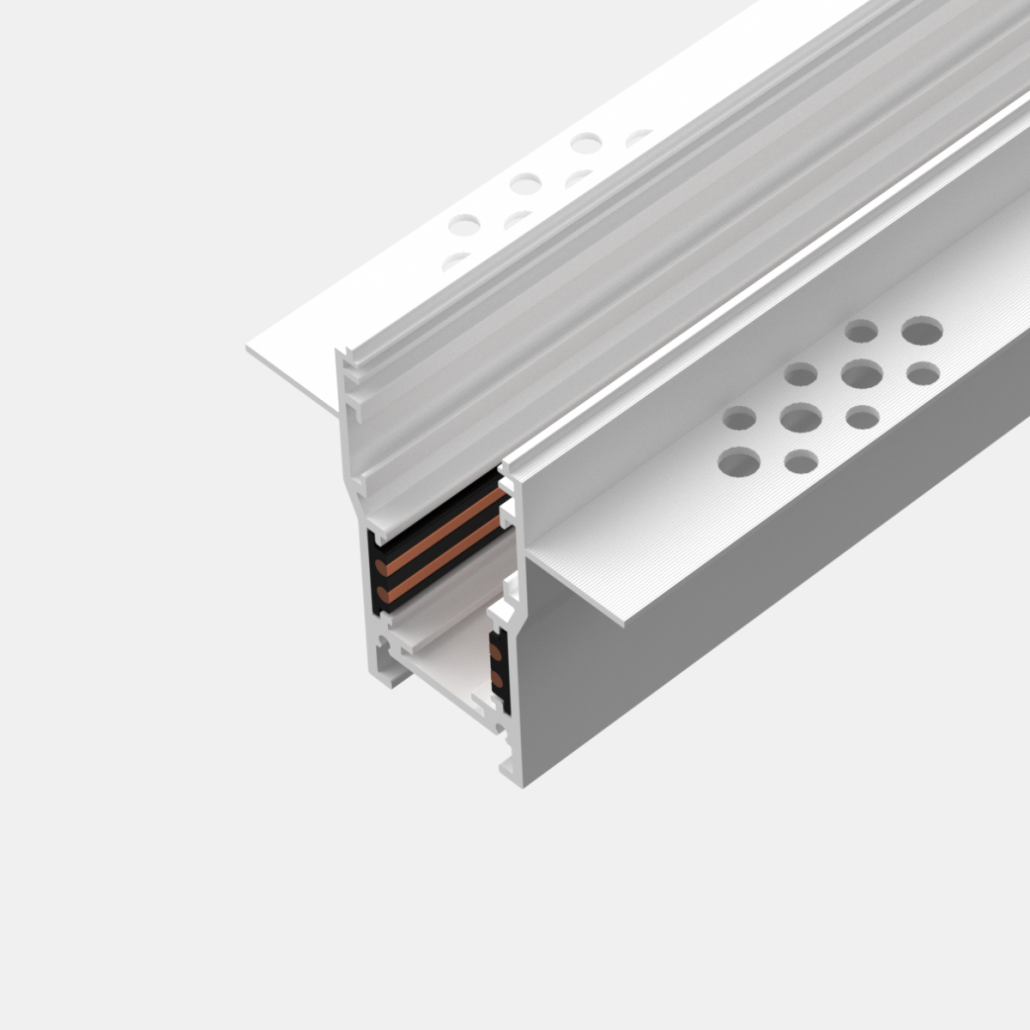

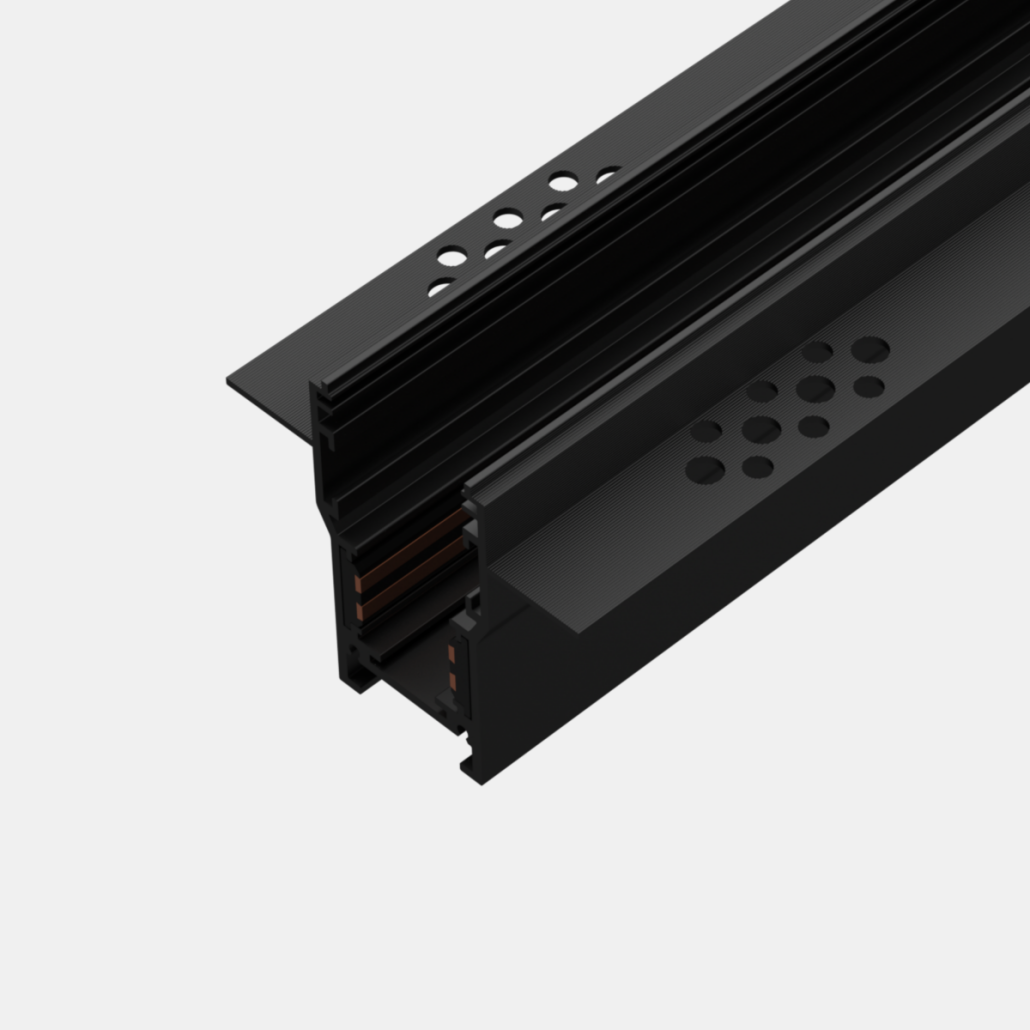

The SRC-D deep trimless recessed magnetic track rail is a key infrastructure component of the KWT low-voltage magnetic system, engineered for high-end commercial ceilings. Its defining 39.5mm deep profile is specifically designed to accommodate thick drywall boards while effectively concealing the internal copper conductors, eliminating unwanted light leaks and dark shadows around the edges to achieve a flawless, seamless finish. Constructed from robust 6063-T5 aluminum extrusion, this 54mm wide profile supports a massive 768W maximum system load at 24/48V DC. Paired with the dedicated STC9011 to STC9015 series connectors, it enables rapid, solderless on-site assembly of L-shaped, T-shaped, and cross-shaped lighting grids for luxury hotel lobbies and premium office interiors.
39.5mm Deep Trimless Design for Anti-Light Leak: The distinctive 39.5mm deepened cavity structure perfectly accommodates thicker drywall boards while shielding the internal magnetic conductive rails. This effectively prevents light spillage from the track edges, delivering a clean, shadow-free ceiling finish.
768W High Power Capacity for Large Loads: Supporting a maximum single-circuit load of 768W, this heavy-duty rail ensures stable 24/48V DC power distribution. It is capable of continuous installations up to 40 meters, eliminating the risk of voltage drops in large-scale commercial lighting setups.
Premium 6063-T5 Aluminum Extrusion Construction: Manufactured from industrial-grade 6063-T5 aluminum, this track offers excellent mechanical strength, efficient thermal dissipation, and long-lasting corrosion resistance, ensuring reliable performance in high-traffic commercial environments.
Modular STC9011-9015 Connectors for Complex Grids: Fully compatible with STC9011 to STC9015 connectors, this system allows for rapid, solderless assembly of complex multi-directional ceiling grids (including L, T, and cross shapes), significantly reducing on-site installation time for engineering contractors.
Contact us for project pricing or OEM samples.
| SRC-D 31mm Deep Trimless Recessed Magnetic Track Rail | |||
| Product code | SRC-D | ||
| Input Voltage | DC24V, DC48V | ||
| Size | L500mm/1000mm/1500mm/2000mm/3000mm*W31*H54mm (Customizable) | ||
| Materials | Die cast Aluminum | ||
| Finish | Black/White (Customizable) | ||
| Installation | Recessed | ||
| Warranty | 3 years | ||
