Product Number: SRC-E
Quick Info:
Input Voltage: DC24V/DC48V
Installation: Recessed
Materials: Die cast Aluminum

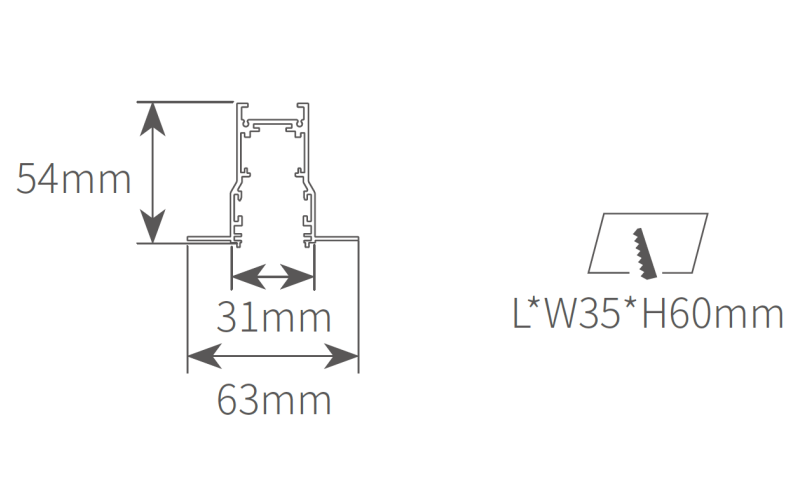

size: L500mm/1000mm/1500mm/2000mm/3000mm*W31*H54mm (Customizable)
Warranty: 3 years

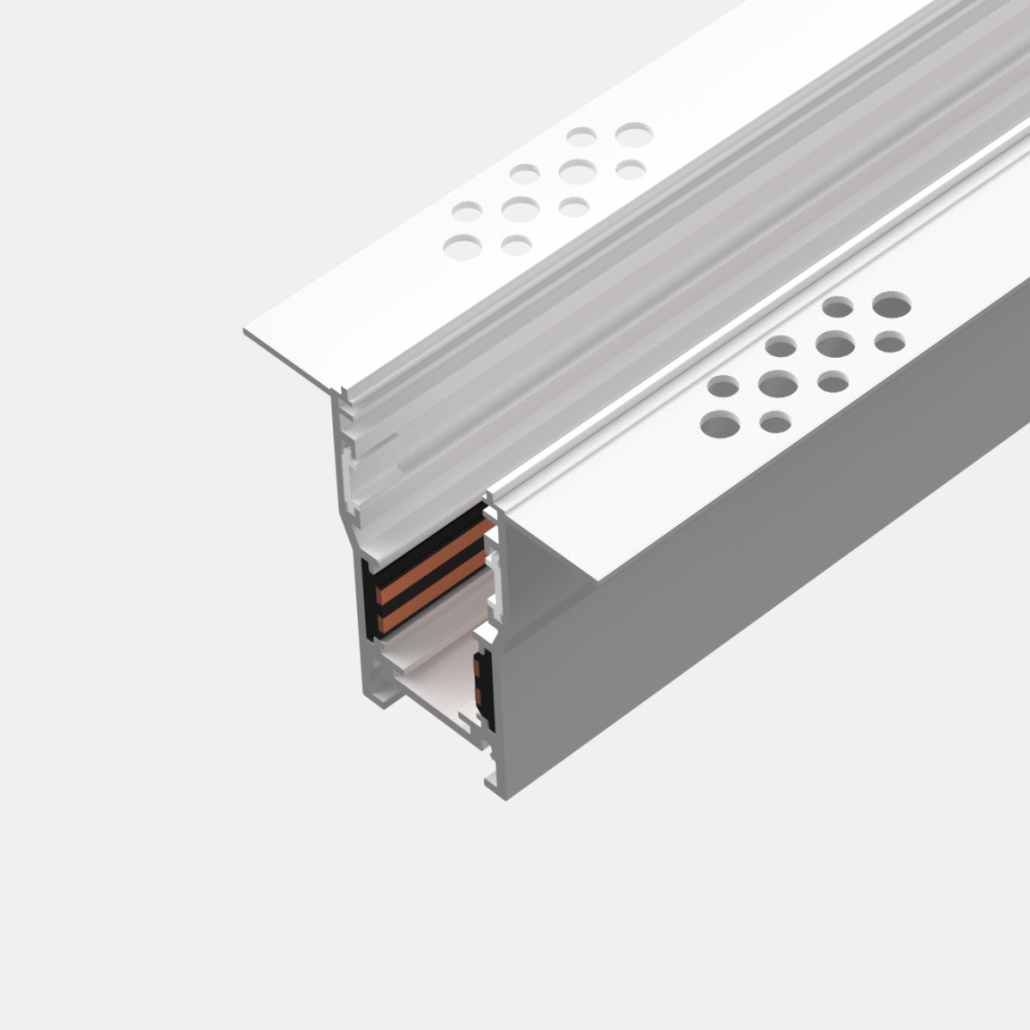

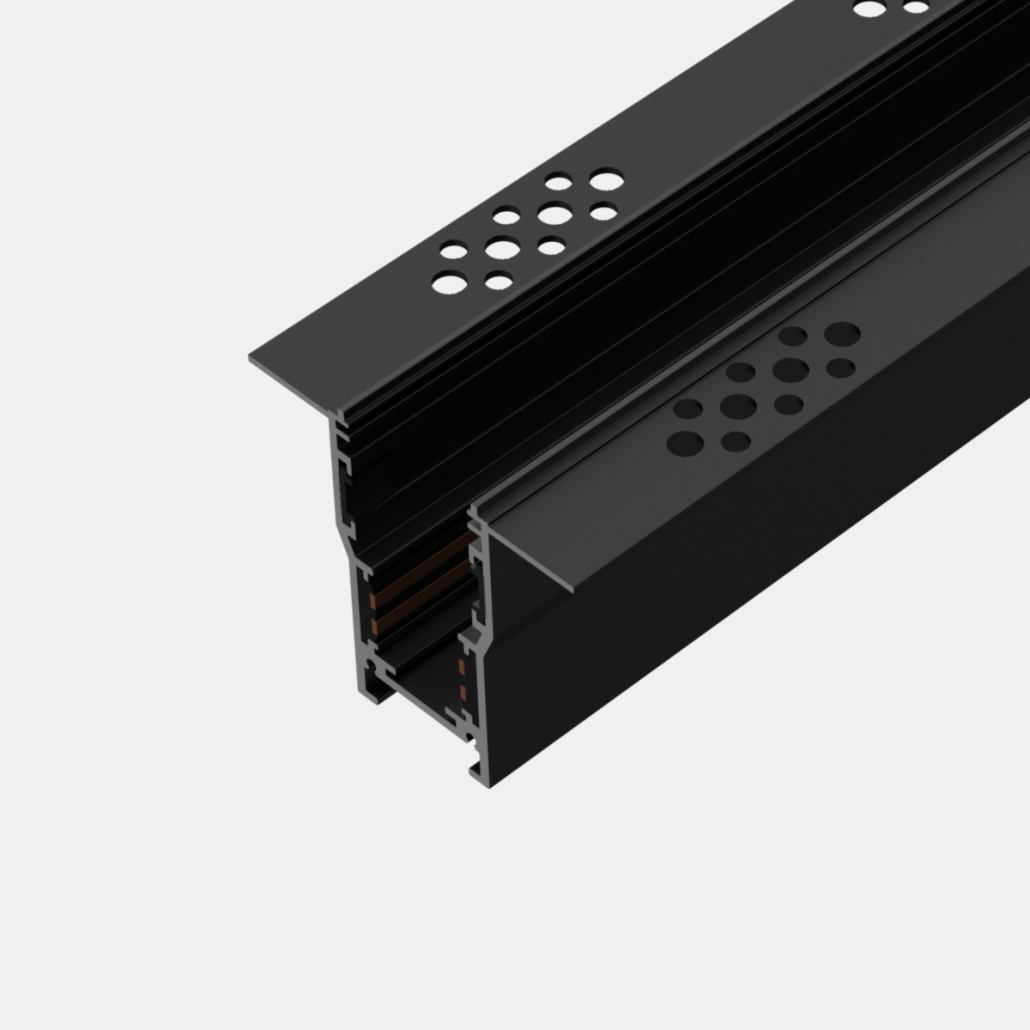

The SRC-E recessed magnetic track rail is a high-performance commercial backbone designed for large-scale retail chains, corporate offices, and exhibition halls. Powered by a robust 24/48V low-voltage system and supporting a massive 768W maximum power output, it delivers consistent electricity for continuous track runs of up to 40 meters without experiencing significant line loss. Available in standard lengths ranging from 500mm to 2000mm, the SRC-E is built from premium 6063-T5 aluminum, guaranteeing exceptional durability and thermal conductivity. Its advanced modular design, compatible with STC9006 to STC9010 connectors, allows lighting designers to create expansive, multi-directional ceiling layouts quickly and efficiently for demanding commercial environments.
High Load 768W Capacity for Large-Scale Networks: Delivering an impressive 768W maximum system power, this track allows for the simultaneous operation of a dense array of spotlights and linear modules, suitable for energy-intensive commercial retail display spaces.
Supports Continuous 40-Meter Runs without Voltage Drop: Engineered with high-quality copper conductors, the SRC-E maintains stable 24/48V DC output for up to 40 meters of continuous track, eliminating the risk of dimming or flickering at the far end of long lighting grids.
Industrial-Grade 6063-T5 Aluminum Extrusion: Constructed from high-grade 6063-T5 aluminum, this rail offers excellent structural rigidity, efficient heat dissipation, and long-term resistance to corrosion and physical wear in busy commercial settings.
Rapid Solderless Assembly with STC9006-STC9010 Series: Paired with the dedicated STC9006 to STC9010 connectors, this system enables rapid, completely solderless onsite installation of complex cross-grids, drastically reducing labor time for engineering contractors.
Contact us for project pricing or OEM samples.
| SRC-E 768W Commercial Magnetic Recessed Track System | |||
| Product code | SRC-E | ||
| Input Voltage | DC24V, DC48V | ||
| Size | L500mm/1000mm/1500mm/2000mm/3000mm*W31*H54mm (Customizable) | ||
| Materials | Die cast Aluminum | ||
| Finish | Black/White (Customizable) | ||
| Installation | Recessed | ||
| Warranty | 3 years | ||
