Product Number: SMLL3007
Quick Info:
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90, CRI>97
Full Beam Angle: 110°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 100Lm/W
Protection: IP20
Warranty: 3 years

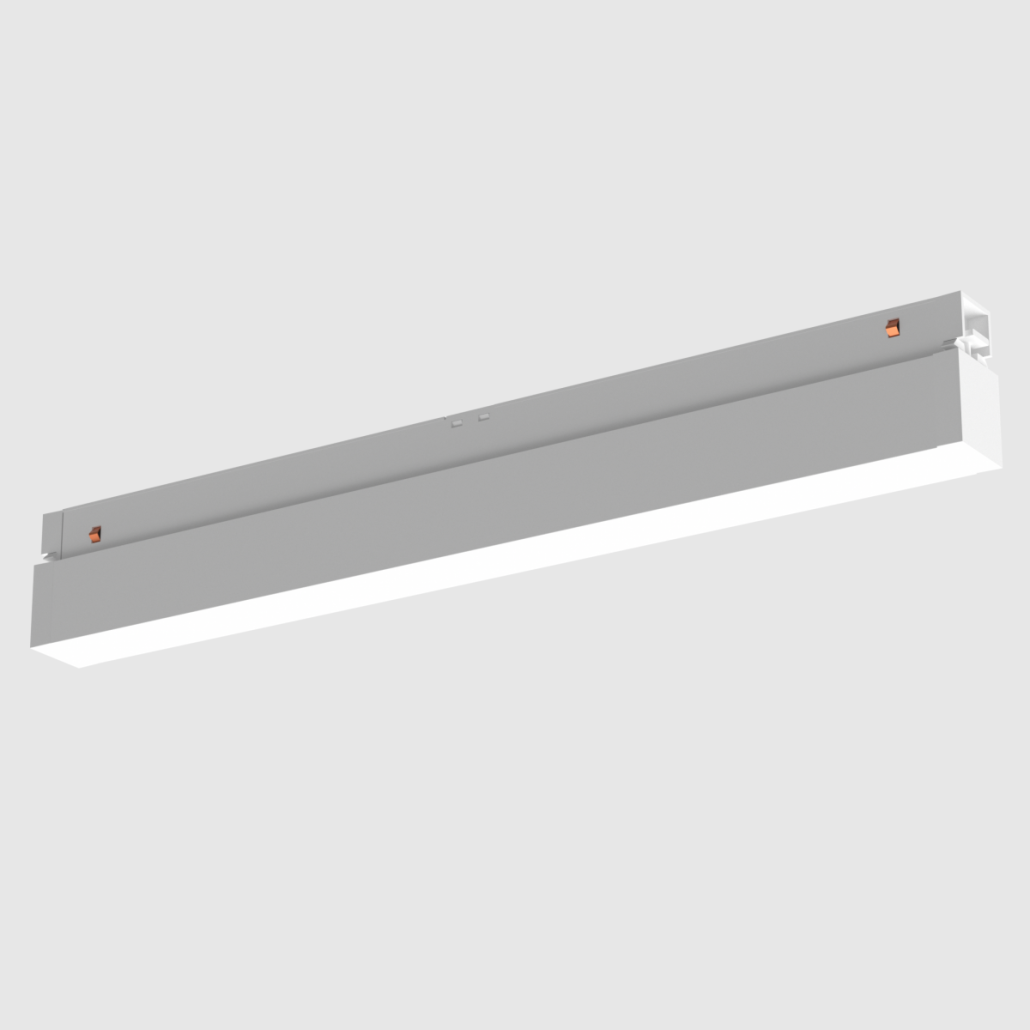

The SMLL3007 7W/10W compact magnetic linear light offers a precise 294mm ultra-slim profile, making it the ideal solution for confined retail shelves, jewelry cabinets, and narrow wall niches. Delivering a wide 110-degree beam and >100Lm/W efficiency, it provides uniform, ambient wash lighting in small commercial areas. Operating on 24/48V low-voltage track systems, this miniature linear module ensures vibrant color rendering with CRI>97 for high-end product displays.
Contact us for project pricing or OEM samples.
| SMLL3007 294mm Compact Magnetic Linear Light 7-10W | |
| Product code | SMLL3007 |
| Power | 7/10W |
| Voltage | 24VDC/48VDC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |

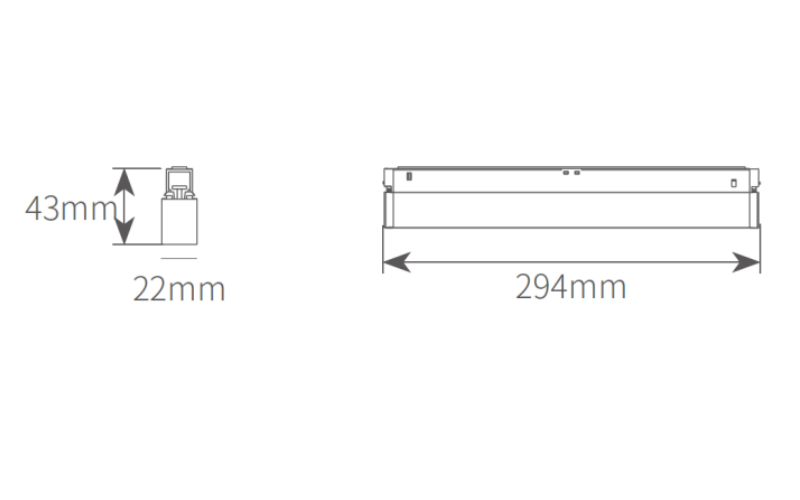

| Size | L294*W22*H43mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 110° |
| Power factor | PF>0.9 |
| CRI | CRI90+, CRI97+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | PMMA |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 100lm/W |
| Materials | Die cast Aluminum |
| Installation | Track Mouted |
| Protection | IP20 |

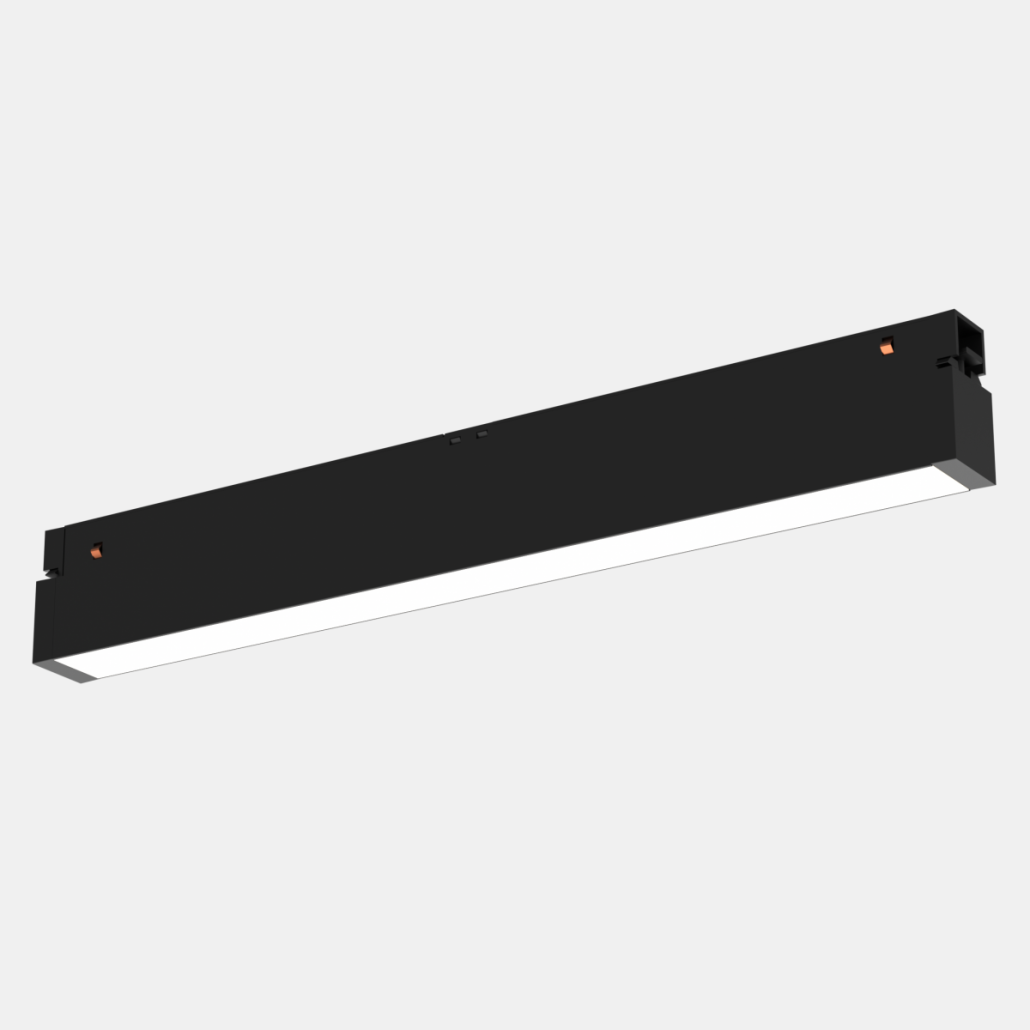

| Finish | White / Black (Customizable) |
| Warranty | 3 years |
