DLD-B Series 84-Degree Wide Beam Commercial Downlight 16-45W


Product Number: DLD-B


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>90
Full Beam Angle:     84°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        120Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

Designed for high-performance commercial environments, the KWT DLD-B Series is a highly efficient downlight solution featuring three models covering a broad 16W to 45W power output. Its signature 84-degree extra-wide beam angle is specifically engineered to deliver uniform, glare-free illumination across expansive retail floors, supermarket aisles, and large open-plan offices. Achieving an impressive luminous efficacy of over 120lm/W, this series significantly reduces operational energy costs for commercial enterprises. The rugged die-cast aluminum heat sink ensures excellent thermal management, guaranteeing long-term reliability even under 24/7 commercial use. Supporting universal AC100-240V input and complete compatibility with Triac, DALI, ZigBee, and Bluetooth dimming protocols, this commercial downlight series provides facility managers with a reliable, cost-effective, and dimmable lighting solution suitable for global project specifications.

Contact us for project pricing or OEM samples.

Specification

KWT LED DLD-C Series Commercial LED Downlight 15-55W
Product codeDLD04-CDLD06-CDLD08-C
Power15W/20W/25W25W/35W25W/35W/50W/55W
SizeD145*H92mmD200*H110mmD230*H118mm
Cut outØ125mmØ175mmØ215mm
Beam angle27°27°/45°27°
Voltage220-240VAC
Lumen outputLamp lumen 120Lm/W
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
DimmableON/OFF, DALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsReflector
LED brandCREE / OSRAM
CRICRI90+
Color SaturationRg=99
SDCM<3
MaterialsDie cast Aluminum
InstallationRecessed
ProtectionIP20
FinishWhite / Black (Customizable)
Warranty3 years

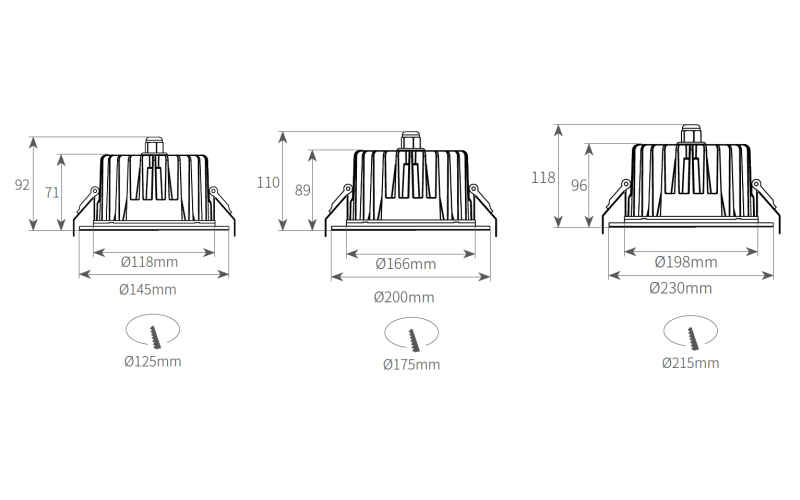

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

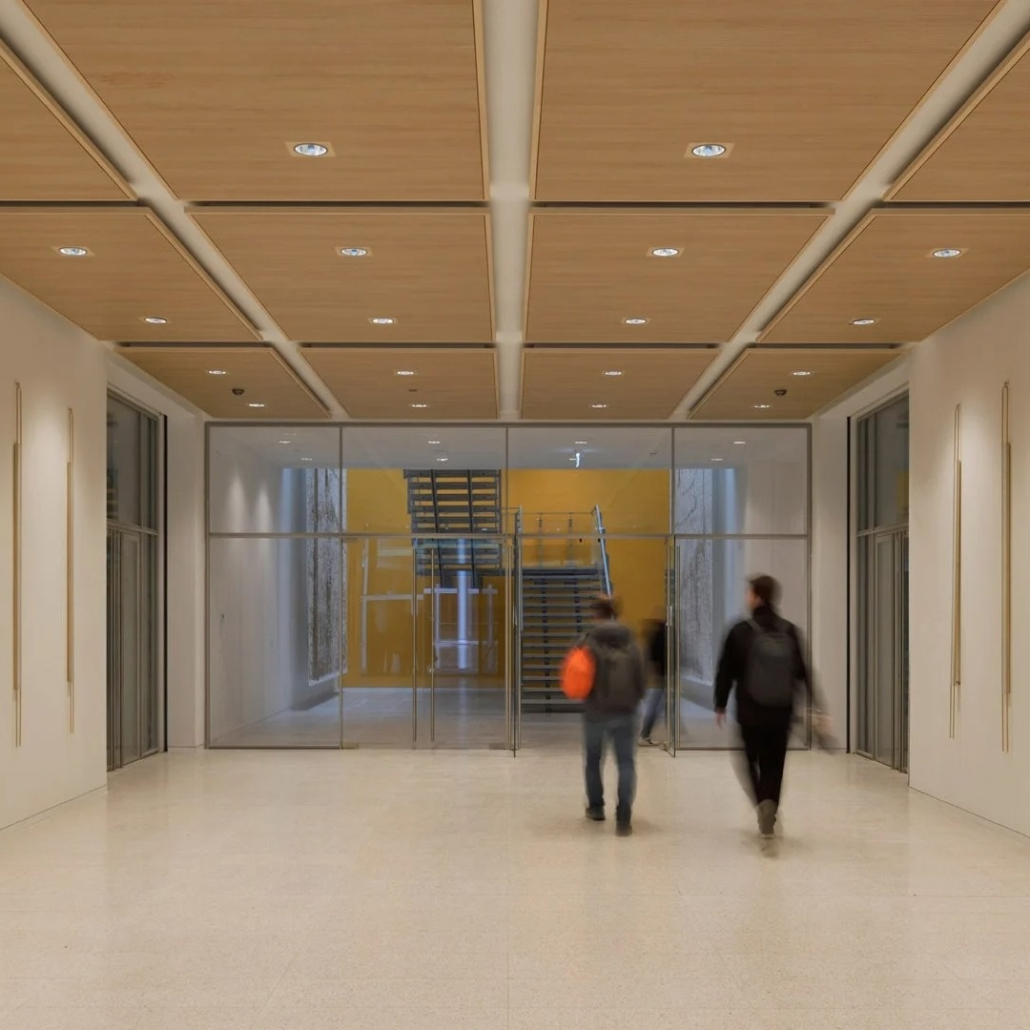

Application Scenarios
