Product Number: DLC05-B
Quick Info:
CCT: 2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI: CRI>90
Full Beam Angle: 15°/24°/36°/55°
Dimmable: DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux: 110Lm/W
Protection: IP20
Warranty: 3 years

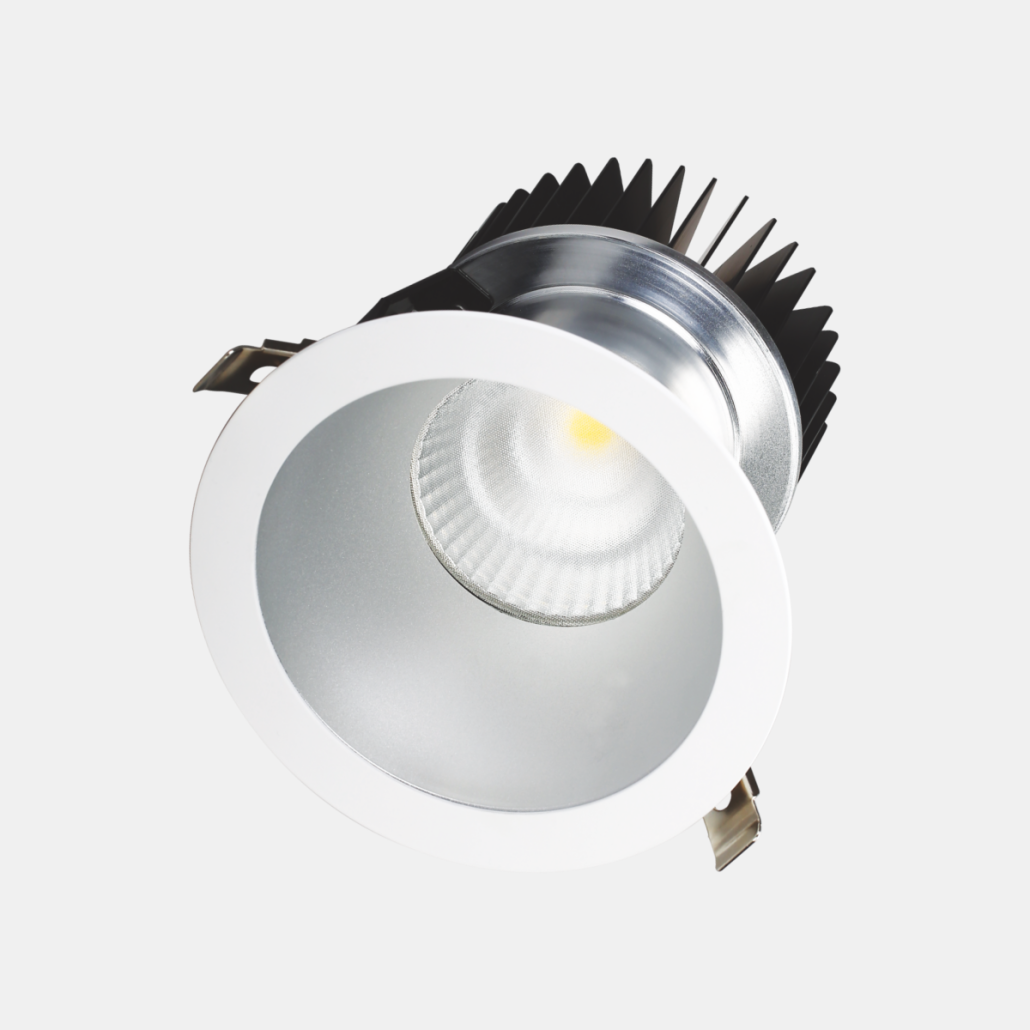

The KWT DLC05-B is a commercial downlight offering robust performance from 15W to 55W. Providing 15/24/36/55 degree beams and cutouts from 70mm to 170mm, this commercial downlight achieves >110lm/W efficacy and Ra>90. It is specifically engineered to meet the display lighting demands of retail chains, supermarkets, and corporate office spaces.
Contact us for project pricing or OEM samples.
| DLC05-B Series Commercial Recessed Downlight 15-55W | |
| Product code | DLC05-B |
| Power | 15/20/25/30/35/40/55W |
| Voltage | 100-240VAC, 220-240VAC |
| CCT | 2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K |

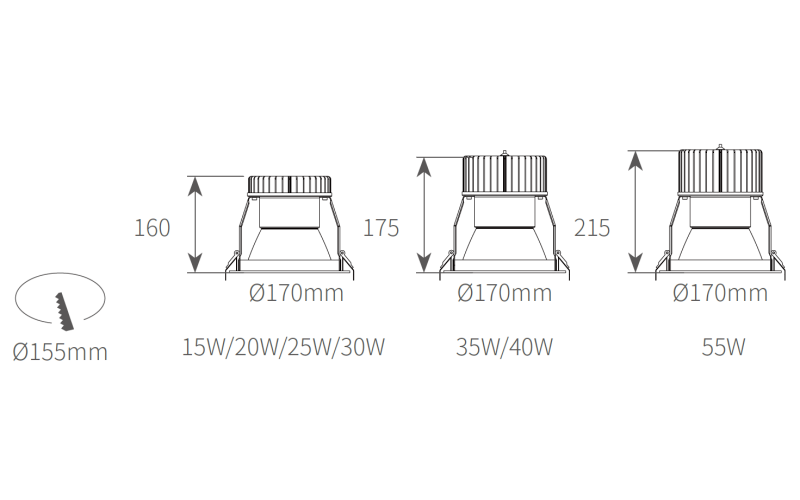

| Cut-out | Ø155mm |
| Size | D170mm |
| Color tolerance | SDCM＜3 |
| Beam angle | 15°/24°/36°/55° |
| CRI | CRI90+ |
| Dimmable | DALI, Triac, 0-10V, Bluetooth, Zigbee |
| Optics | Reflector |
| Color Accuracy | Rf≥92 |
| Color Saturation | Rg=99 |
| Lumen output | Lamp lumen 110lm/W |
| Materials | Die cast aluminum |
| Installation | Recessed Mounted |
| Protection | IP20 |
| Finish | White/Black |
| Warranty | 3 years |
