V7 DC48V Dimmable Spherical Track Pendant Light 5W


Product Number:   UMP8005


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K

CRI:                            CRI90+, CRI95+

Full Beam Angle:     80°

Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee

Lamp Efficiency:      Lamp lumen 80lm/W

Protection:                IP20

Warranty:                  3 years

Product Details

Description

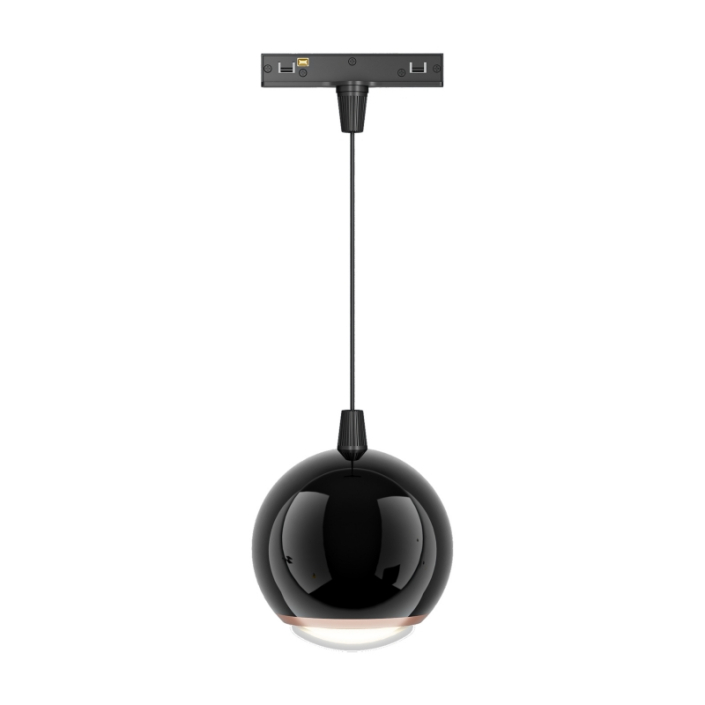

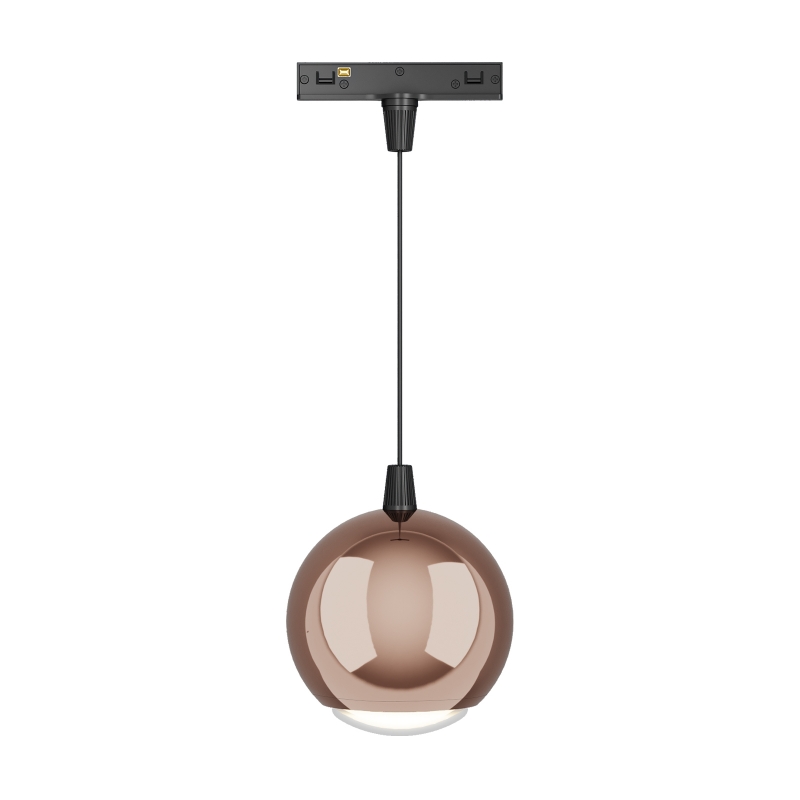

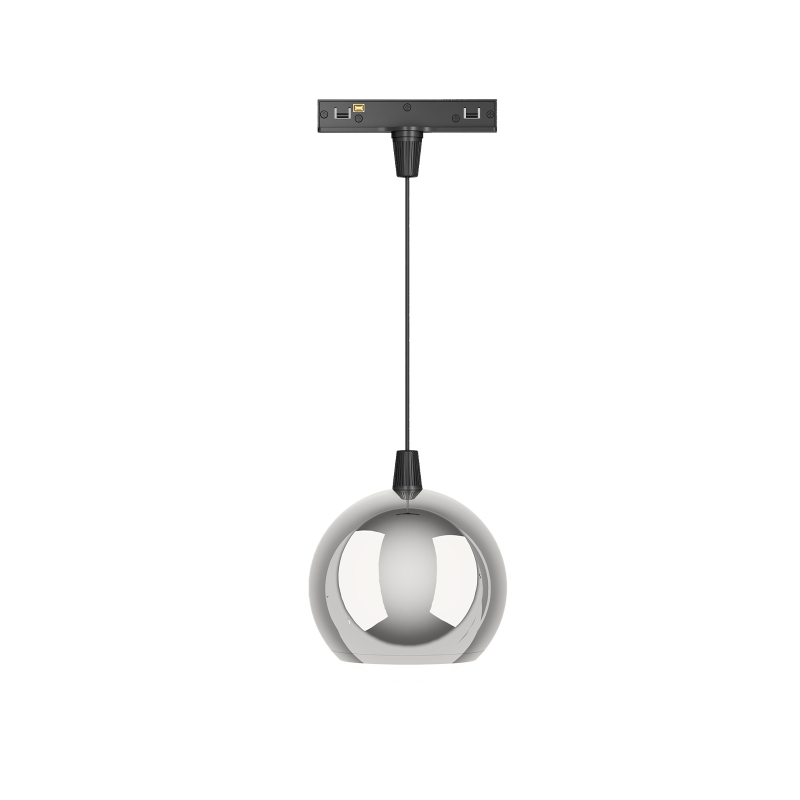

This 5W 48V spherical aluminum track pendant light offers CRI>95, UGR<19, and flicker-free illumination. Compatible with Ultra Slim 48V tracks, it supports DALI, Triac, and Bluetooth dimming with an 80° beam angle. Featuring a metallic aluminum housing in Black, Rose Gold, or Silver, it is a refined choice for modern residential and hotel environments.

Specification

V7 DC48V Dimmable Spherical Track Pendant Light 5W
Product codeUMP8005
Power5W
VoltageDC48V
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeD80mmmm
Color toleranceSDCM3
Beam angle80°
Power factorPF>0.9
CRICRI90+, CRI95+
DimmableDALI, Triac, 0-10V, Zigbee, Bluetooth
OpticsLens
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 80lm/W
MaterialsDie cast Aluminum
InstallationTrack Mounted
ProtectionIP20
FinishBlack / White
Warranty3 years

Size and drawing

Technical dimension drawing of the UMS4016 twin-head track spotlight, detailing the 265.0mm body height, 88.8mm base width, and adjustable joint angles.

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
