SMP405015F High Output Magnetic Zoom Pendant 15W


Product Number: SMP405015F


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>90, CRI>97
Full Beam Angle:     15°-36°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        70Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

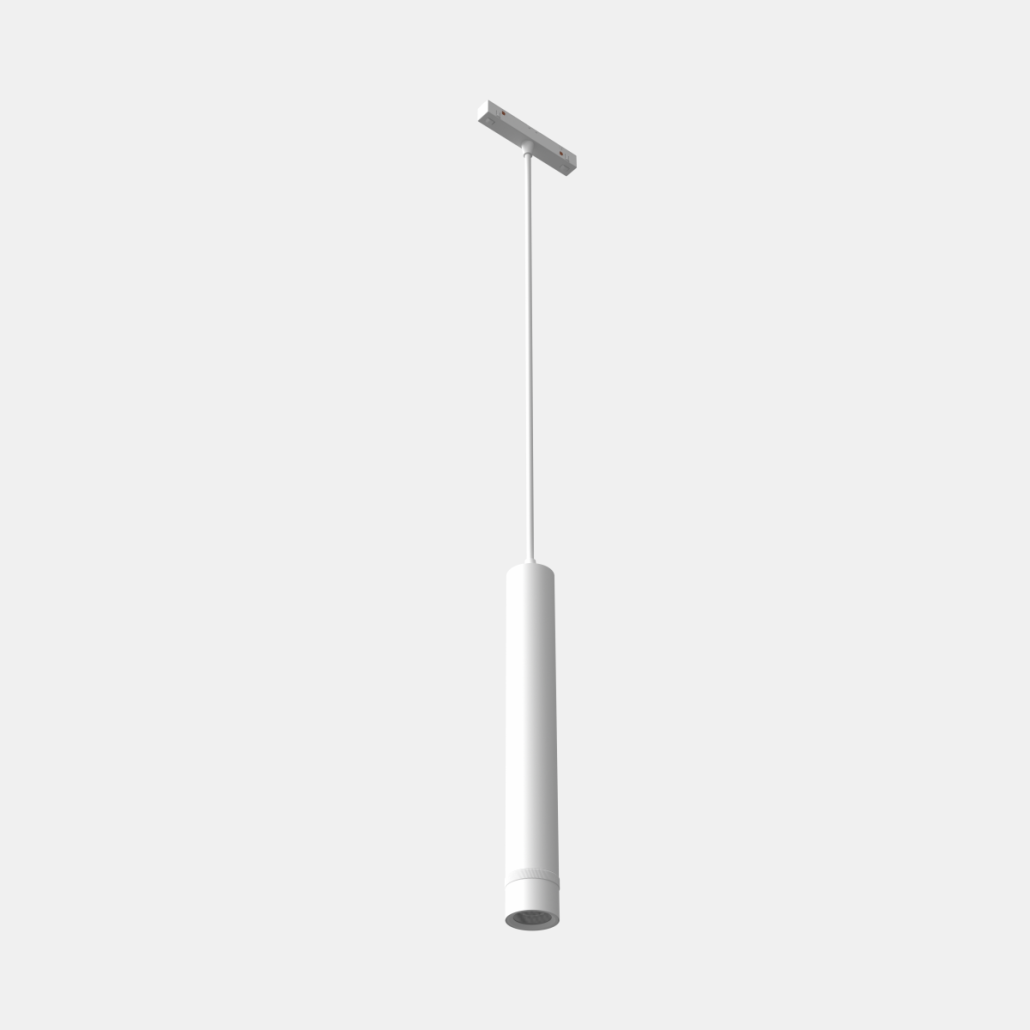

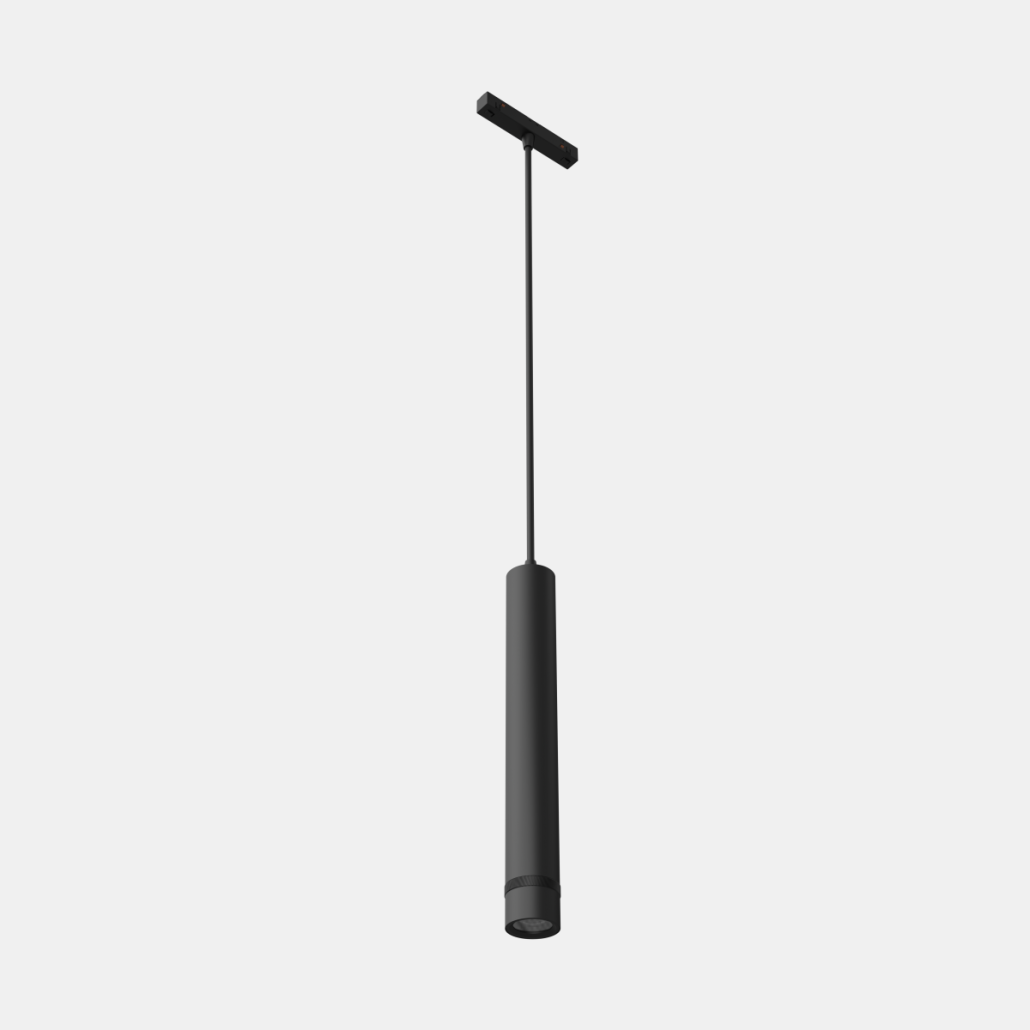

The SMP405015F 15W high output magnetic track pendant light features an extended 500mm cylindrical aluminum housing, designed to serve as a striking visual centerpiece above kitchen islands and large dining tables. Its powerful 15W light engine delivers superior brightness with an adjustable 15°-36° zoomable beam and CRI>97, ensuring vivid color reproduction of culinary dishes. With UGR<11 and versatile 24V/48V integration, it enhances the sophisticated ambiance of luxury residences and high-end restaurants.

Specification

SMP405015F High Output Magnetic Zoom Pendant 15W
Product codeSMP405015F
Power15W
Voltage24VDC, 48VDC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeD40*L500mm
Color toleranceSDCM3
Beam angle15°-36°
Power factorPF>0.9
CRICRI90+, CRI97+
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsLens
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 70lm/W
MaterialsDie cast Aluminum
InstallationTrack Mouted
ProtectionIP20
FinishBlack/White
Warranty3 years

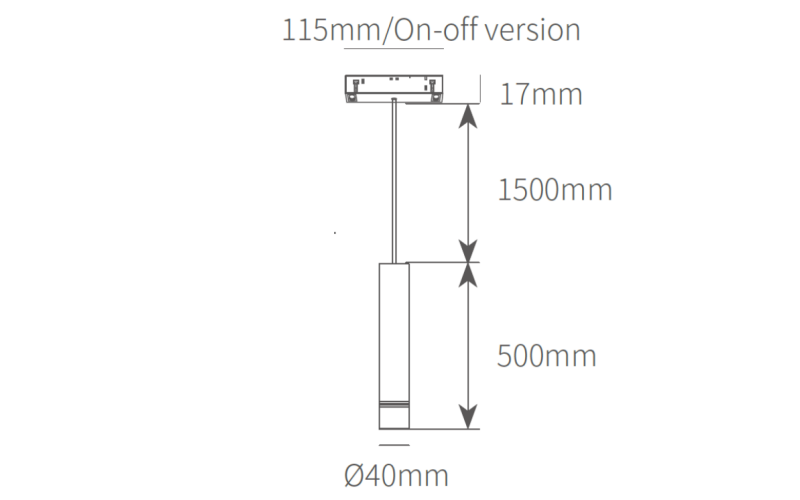

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
