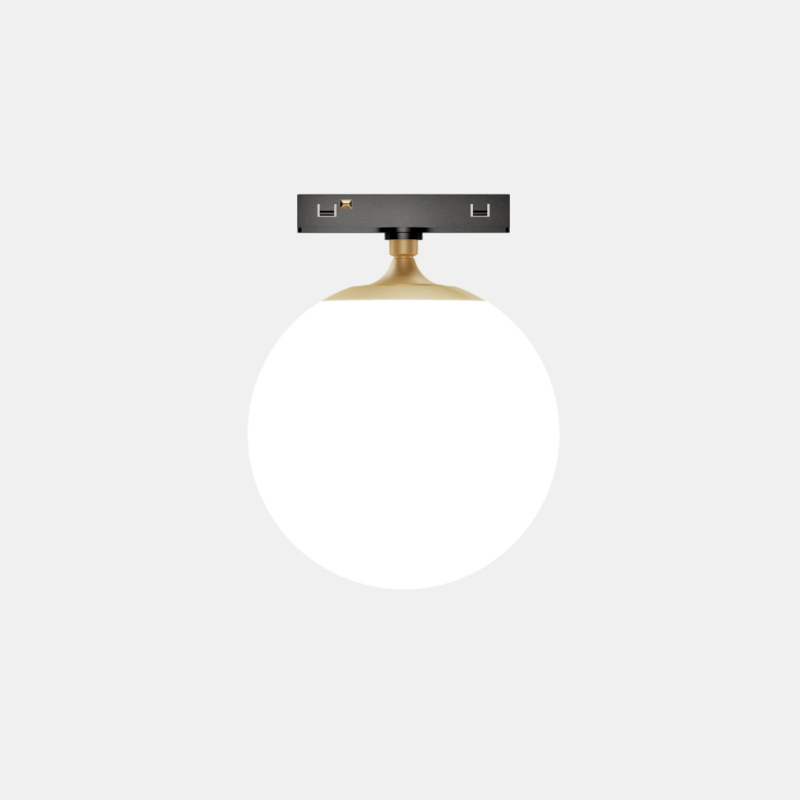

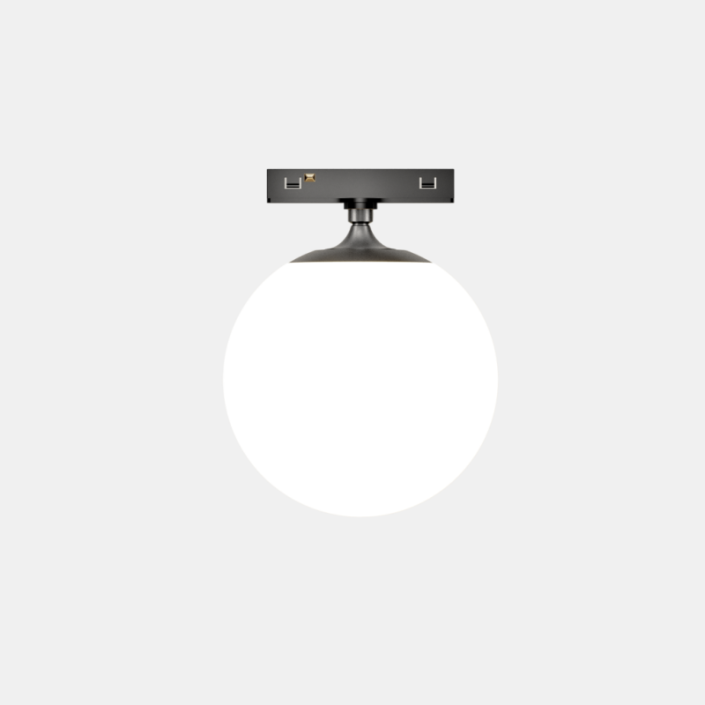

SMB8002 Smart Dimmable Architectural Track Globe 2W


Product Number: SMB8002


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>90, CRI>95
Full Beam Angle:     360°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        80Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

Tailored for sophisticated architectural lighting schemes, this Compact Decorative Track Light offers seamless integration with 24V/48V curved magnetic rails. Despite its tiny 80mm diameter, it delivers high-quality CRI>95 illumination. Supporting Triac, ZigBee, Bluetooth, and DALI dimming protocols, it provides smooth, flicker-free light modulation, allowing designers to effortlessly craft intimate, low-level ambient moods in high-end boutique hotels and luxury villas.

Specification

SMB8002 Smart Dimmable Architectural Track Globe 2W
Product codeSMB8002
Power2W
Voltage24VDC, 48VDC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeD80mm
Color toleranceSDCM3
Beam angle360°
Power factorPF>0.9
CRICRI90+, CRI95+
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsPMMA
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 80lm/W
MaterialsDie cast Aluminum
InstallationTrack Mouted
ProtectionIP20
FinishBlack/Glod
Warranty3 years

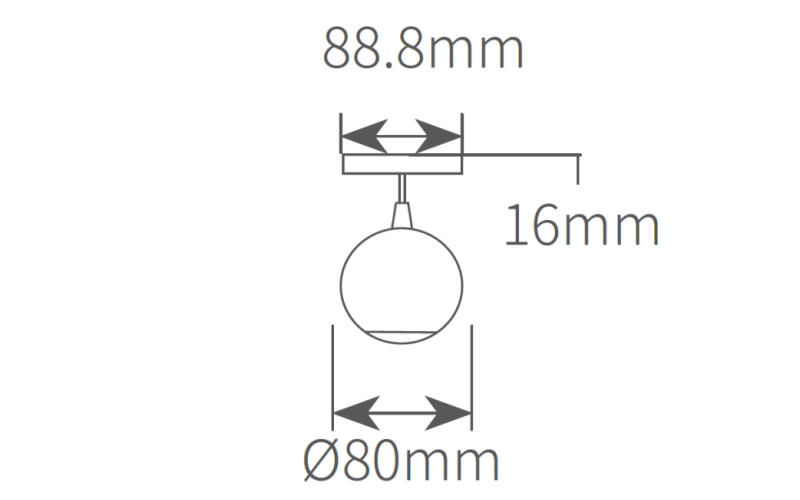

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
