SMP403008F Architectural Magnetic Zoom Pendant 8W


Product Number: SMP403008F


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>90/97
Full Beam Angle:     15°-36°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        70Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

The SMP403008F 8W magnetic track zoomable pendant light features an ultra-compact 300mm cylindrical aluminum body, making it an elegant solution for refined bedside reading, intimate bar counters, and boutique display cabinets. Emitting a high-fidelity CRI>97 glow and offering an adjustable 15°-36° beam angle, it provides precise lighting control without visual fatigue. Its UGR<11 rating guarantees exceptional visual comfort in close-proximity modern residential interiors.

Specification

SMP403008F Architectural Magnetic Zoom Pendant 8W
Product codeSMP403008F
Power8W
Voltage24VDC, 48VDC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeD40*H300mm
Color toleranceSDCM3
Beam angle15°-36°
Power factorPF>0.9
CRI CRI90+, CRI97+
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsLens
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 70lm/W
MaterialsDie cast Aluminum
InstallationTrack Mouted
ProtectionIP20
FinishBlack/White
Warranty3 years

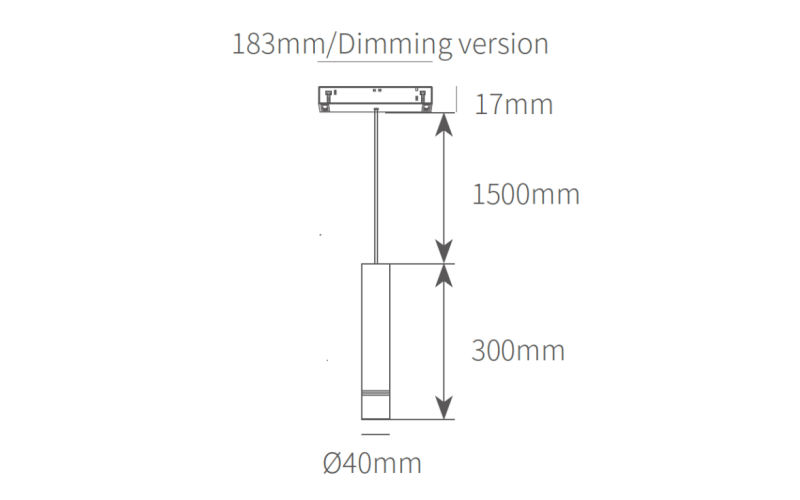

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
