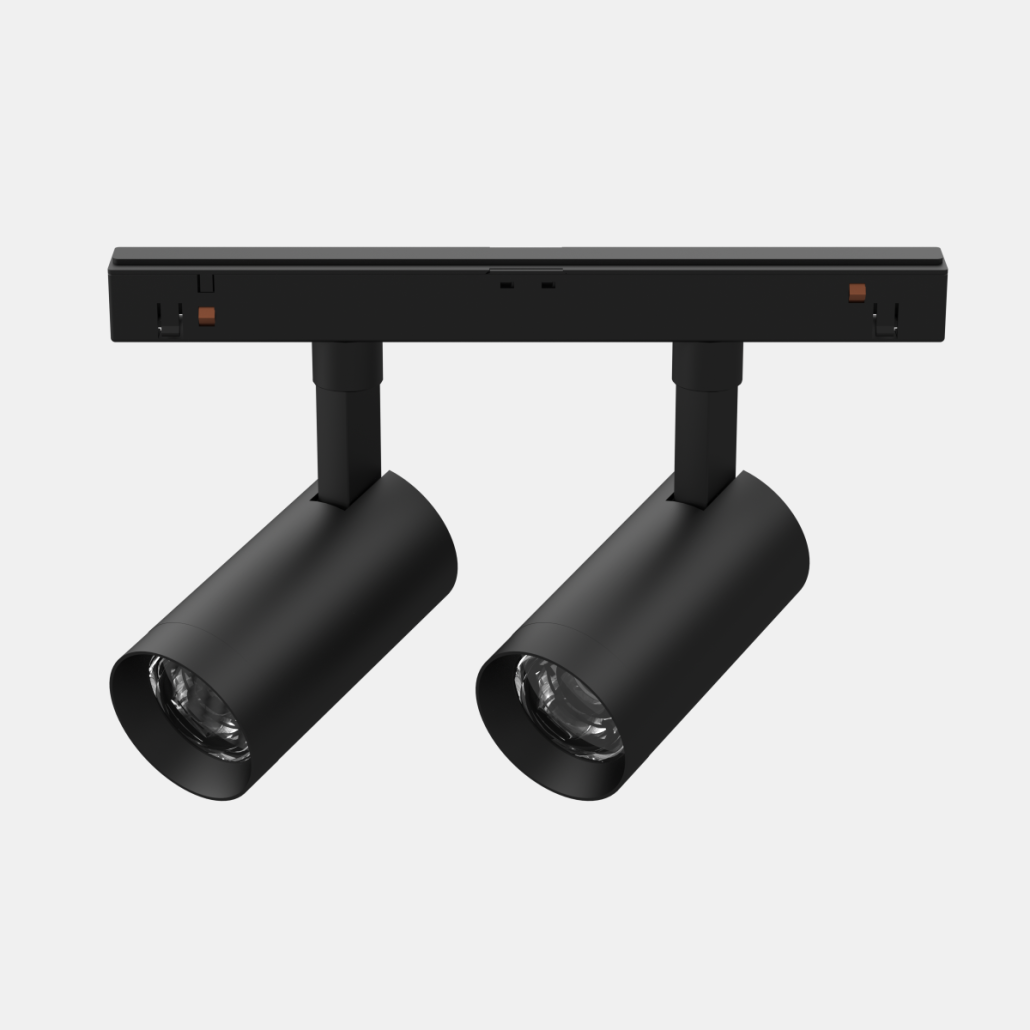

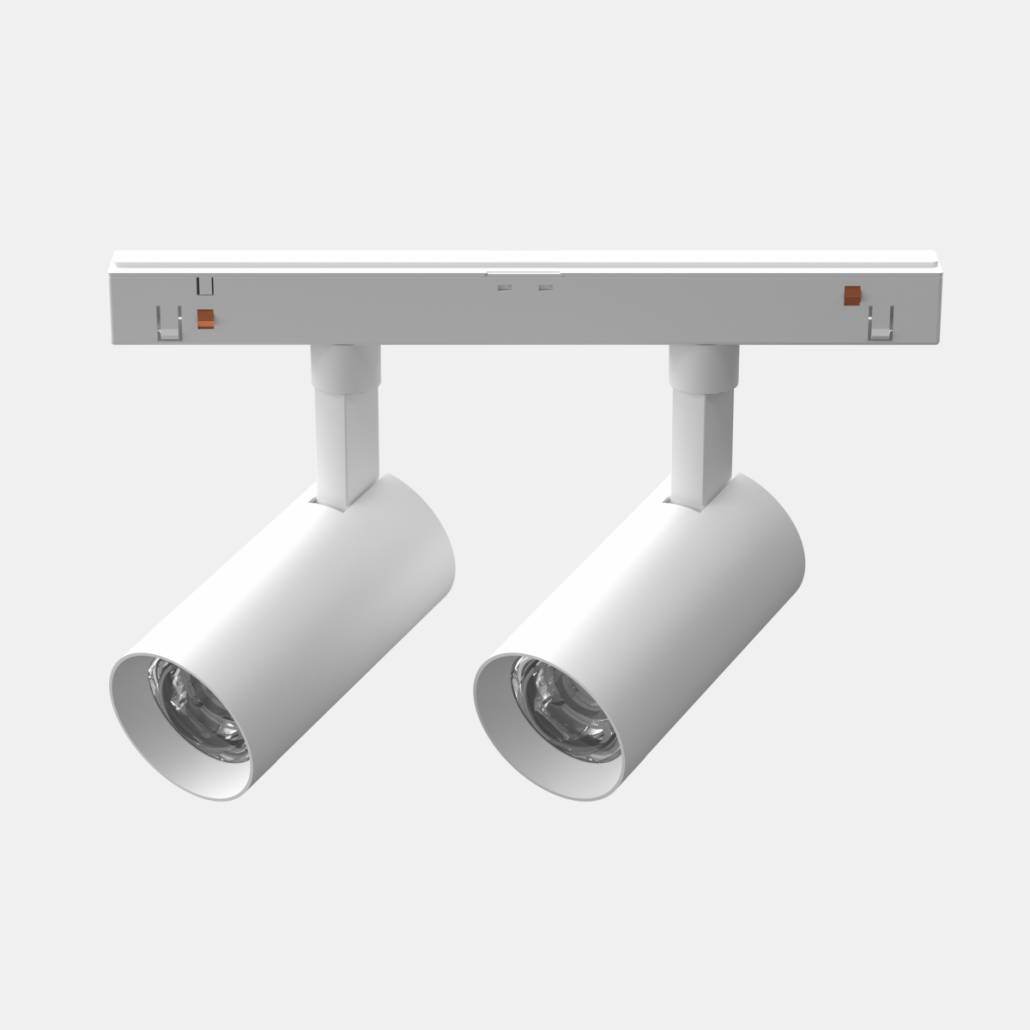

SMS4016 High Output Dual-Head Magnetic Track Spot 10-16W


Product Number: SMS4016


Quick Info:

CCT:                           2700K, 3000K, 4000K, 5700K, 6500K, 2700-6500K
CRI:                            CRI>90, CRI>97
Full Beam Angle:    15°/24°/36°/60°
Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee
Luminous Flux:        75Lm/W
Protection:                IP20
Warranty:                   3 years

Product Details

Description

The SMS4016 10-16W high output dual-head magnetic track spotlight is built for demanding commercial environments requiring intense and precise illumination, such as large exhibition halls and high-ceiling flagship stores. Its powerful 16W engine delivers superior brightness while maintaining a high CRI>97 and >75Lm/W efficacy. With two independently adjustable 15 to 60-degree zoomable lenses, it allows for seamless switching between highly concentrated spot accents and expansive washes, ensuring vibrant and accurate color representation for large-scale architectural displays and product showcases.

Specification

SMS4016 High Output Dual-Head Magnetic Track Spot 10-16W
Product codeSMS4016
Power10W/16W
Voltage24VDC, 48VDC
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeD40*110mm
Color toleranceSDCM3
Beam angle15°/24°/36°/60°
Power factorPF>0.9
CRICRI90+, CRI97+
DimmableDALI, Triac, 0-10V, Bluetooth, Zigbee
OpticsLens
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 75lm/W
MaterialsDie cast Aluminum
InstallationTrack Mouted
ProtectionIP20
FinishWhite / Black / Chrome / Brushed copper (Customizable)
Warranty3 years

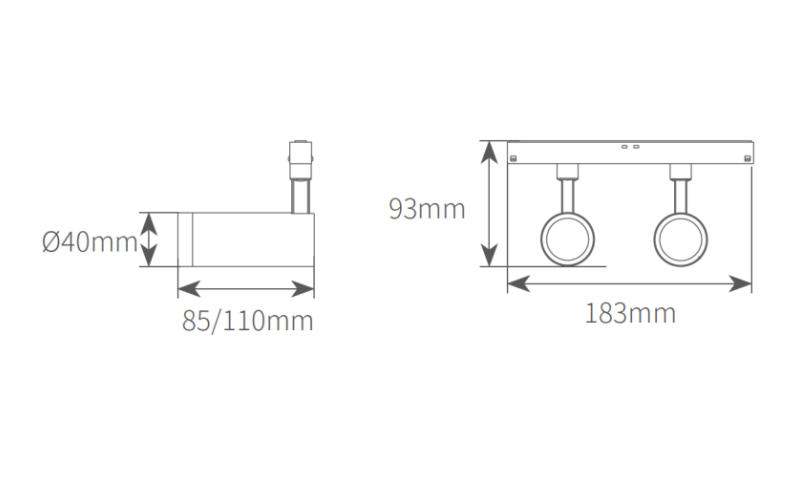

Size and drawing

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
