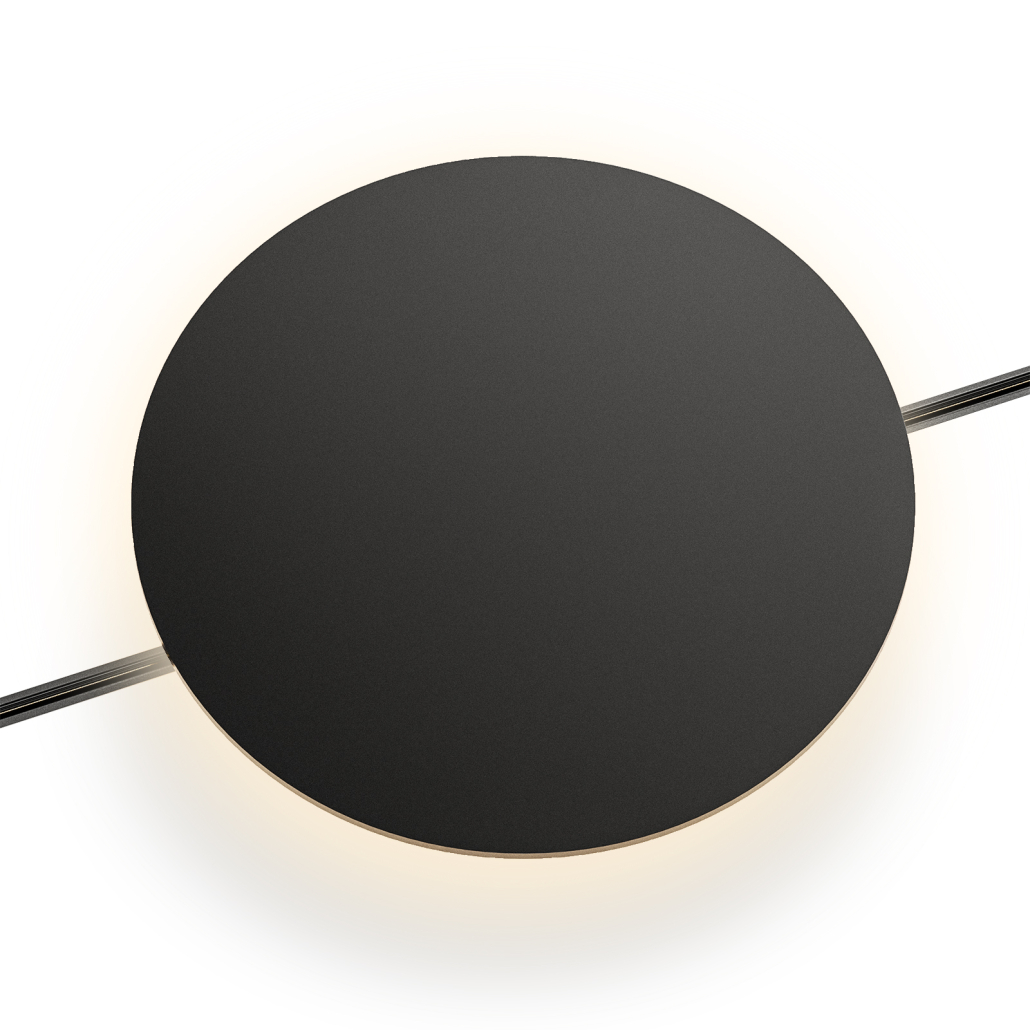

UMWR2007 black circular wall sconce emitting 360° ambient light in a luxury modern bedroom.
UMWR2007 black circular wall sconce emitting 360° ambient light in a luxury modern bedroom.
UMWR2007 black circular wall sconce emitting 360° ambient light in a luxury modern bedroom.

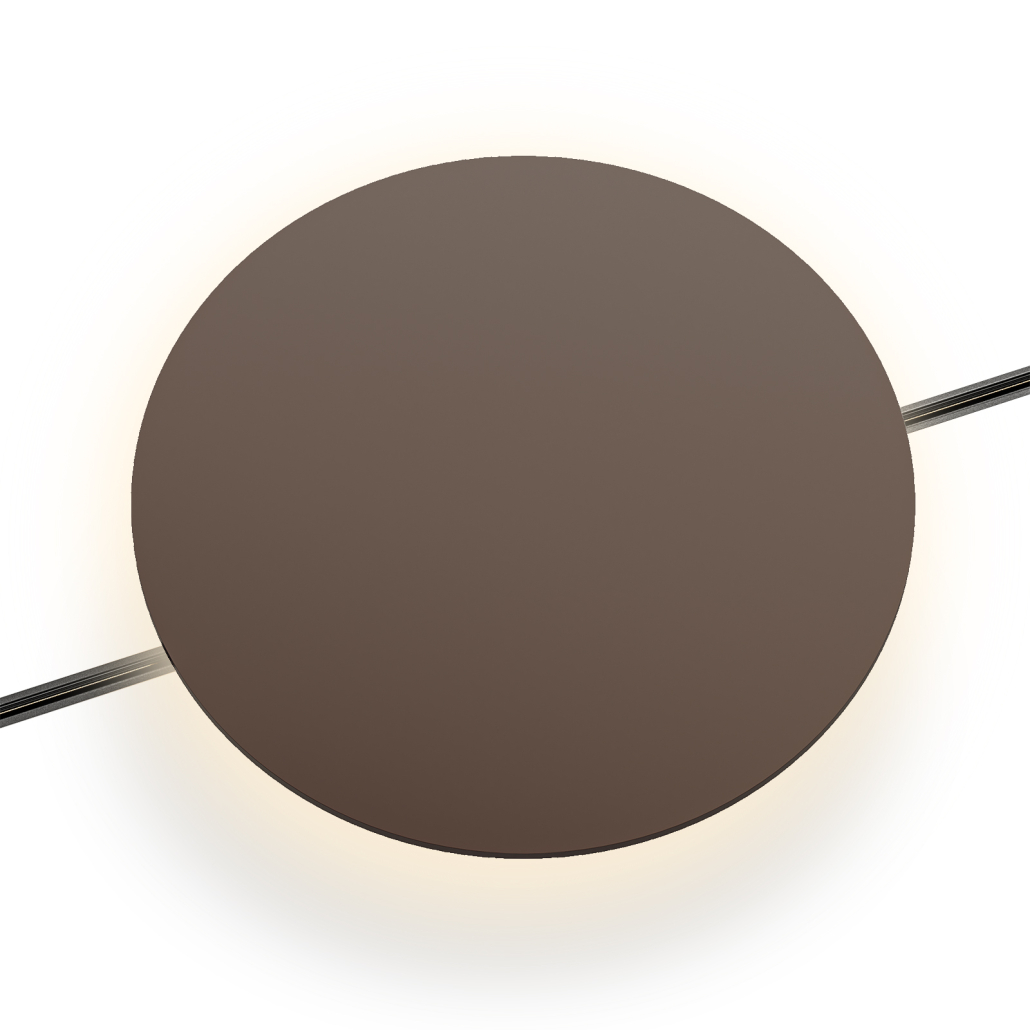

Brown round architectural wall lamp with 48V dimmable LED, perfect for cozy hotel corridors.
Brown round architectural wall lamp with 48V dimmable LED, perfect for cozy hotel corridors.

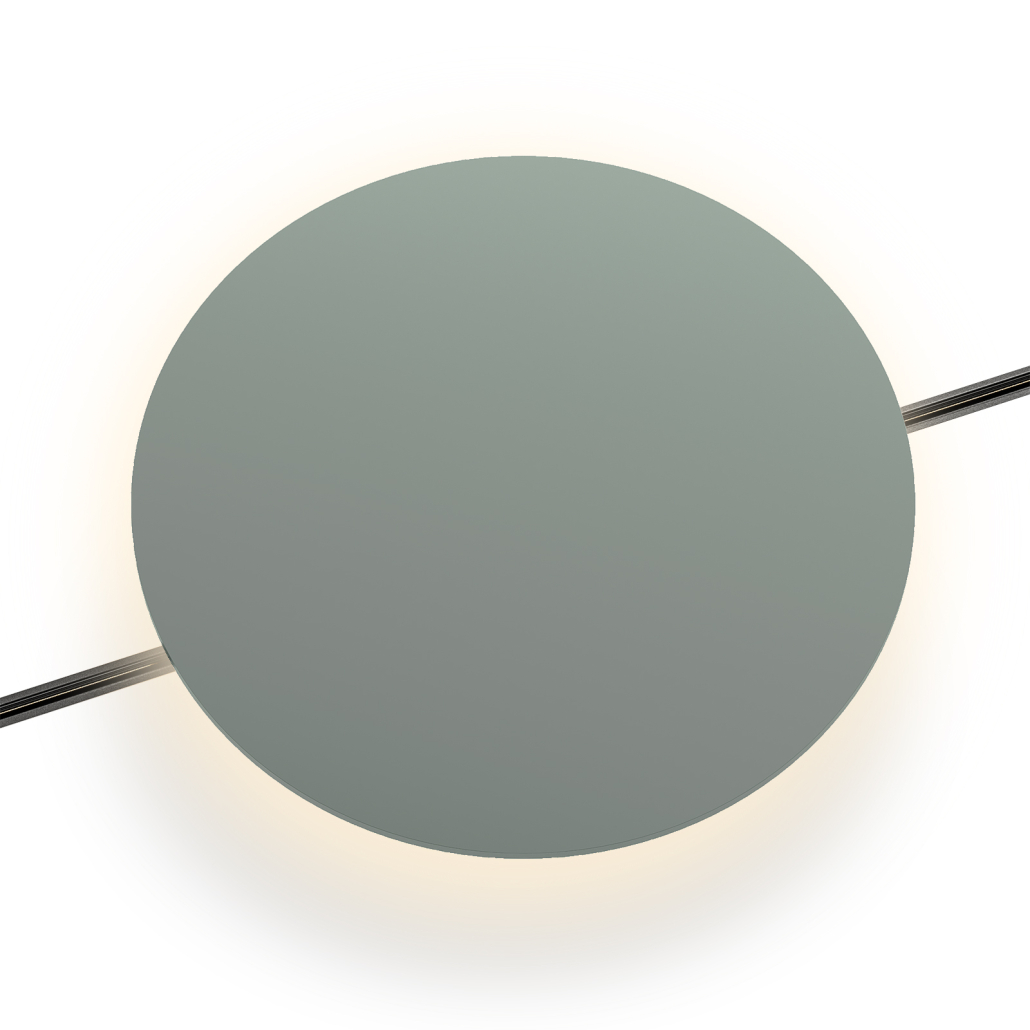

Green circular architectural wall sconce providing high CRI>95 360° lighting for sustainable commercial builds.
Green circular architectural wall sconce providing high CRI>95 360° lighting for sustainable commercial builds.

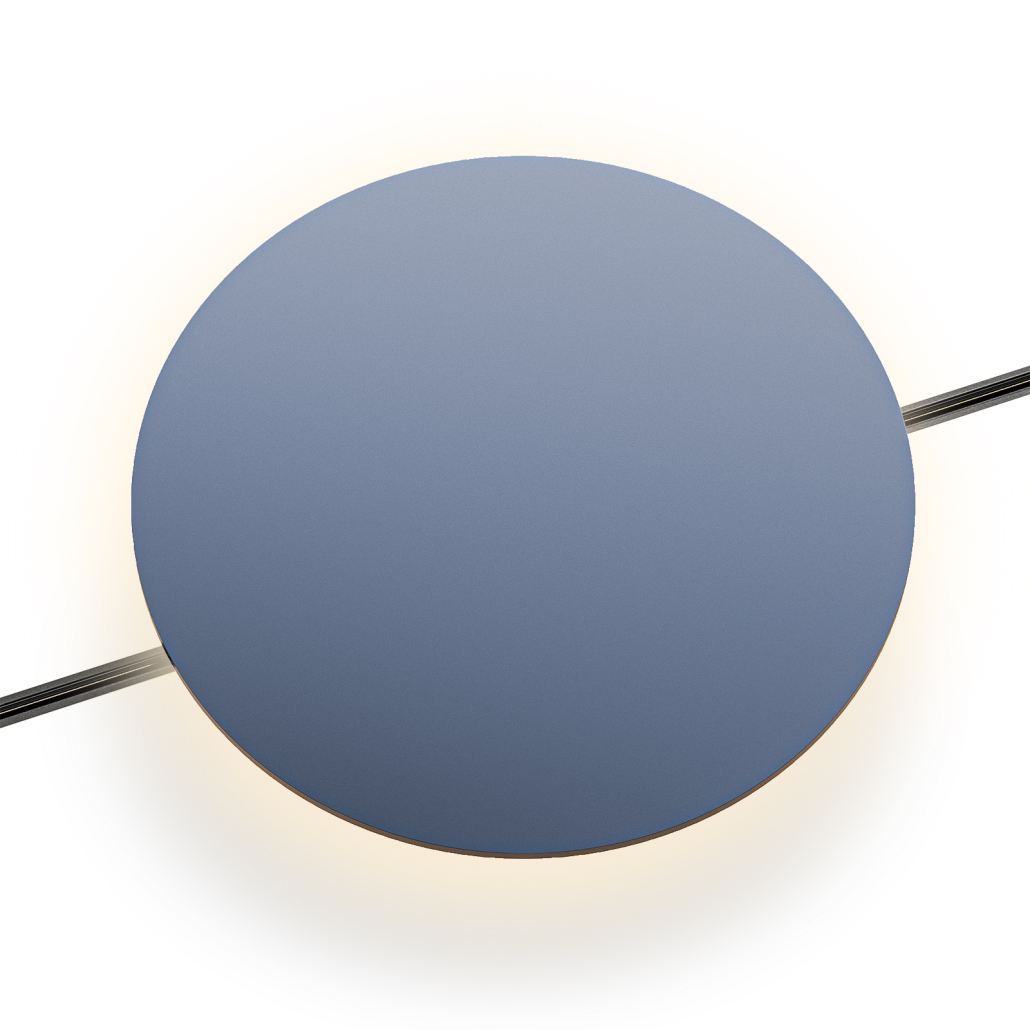

Blue modern circular wall light with multi-protocol dimming, creating a unique aesthetic for contemporary spaces.
Blue modern circular wall light with multi-protocol dimming, creating a unique aesthetic for contemporary spaces.
Grey minimalist circular wall lamp providing flicker-free LED light for corporate office lobbies.
Grey minimalist circular wall lamp providing flicker-free LED light for corporate office lobbies.

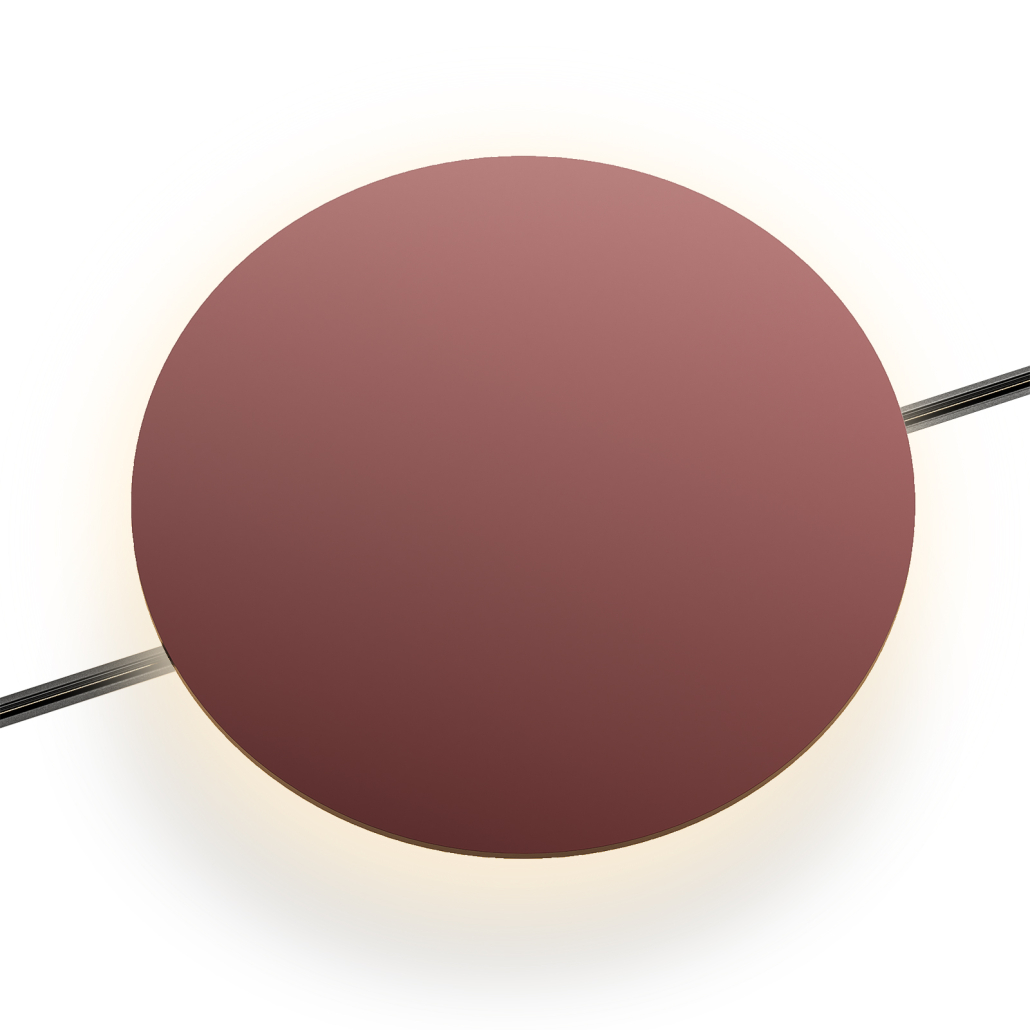

Red decorative circular wall light with 360° illumination and DALI/Triac dimming for artistic galleries.
Red decorative circular wall light with 360° illumination and DALI/Triac dimming for artistic galleries.

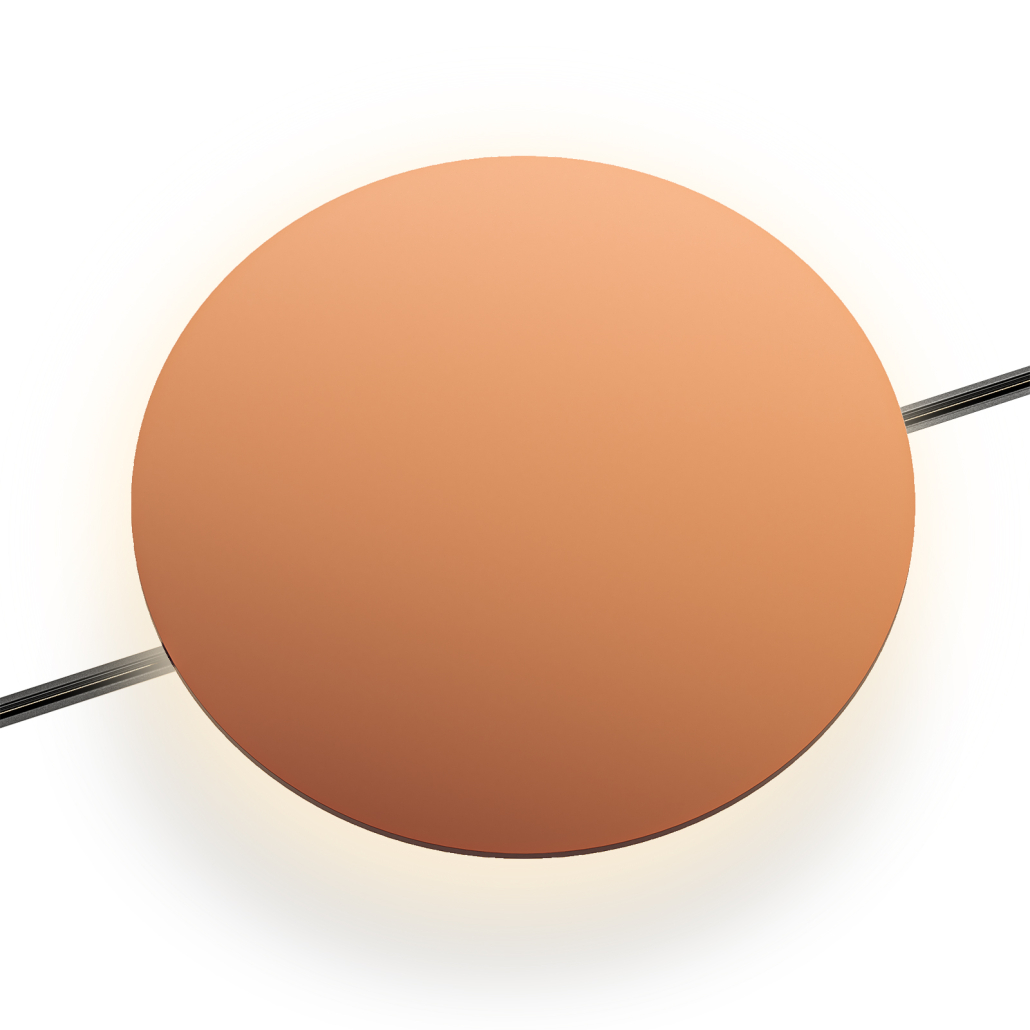

Orange sleek circular wall sconce offering a 360° soft ambient glow for upscale boutique hotel suites.
Orange sleek circular wall sconce offering a 360° soft ambient glow for upscale boutique hotel suites.

V7 DC48V Architectural Circular Wall Sconce 7-10W

Product Number:   UMWR2007 / umwr3010

Quick Info:

CCT:                           2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K

CRI:                            CRI90+, CRI95+

Full Beam Angle:     360°

Dimmable:                DALI, Triac, 0-10V, Bluetooth, Zigbee

Lamp Efficiency:      Lamp lumen 80lm/W

Protection:                IP20

Warranty:                  3 years

Send inquiry WhatsApp

Product Details

Description

This 7W/10W 48V circular wall sconce delivers a smooth 360° ambient glow. Featuring CRI>90/95 and flicker-free LEDs, it provides premium illumination for hotel suites and modern residences. Supporting DALI, Triac, Bluetooth, and 0-10V dimming protocols, this architectural round lamp is available in 7 sophisticated color finishes to match any interior theme.

Specification

V7 DC48V Architectural Circular Wall Sconce 7-10W
Product codeUMWr2005UMWR3010
Power5W10W
VoltageDC48V
CCT2700K, 3000K, 4000K, 5000K, 6500K, 2700K-6500K
SizeD200mm x H48mmD300mm x H48mm
Color toleranceSDCM＜3
Beam angle360°
Power factorPF>0.9
CRICRI90+, CRI95+
DimmableDALI, Triac, 0-10V, Zigbee, Bluetooth
OpticsPMMA
Color AccuracyRf≥92
Color SaturationRg=99
Lumen outputLamp lumen 80lm/W
MaterialsDie cast Aluminum
InstallationTrack Mounted
ProtectionIP20
FinishBlack / White / Brown / Red / Grey / Blue / Green
Warranty3 years

Size and drawing

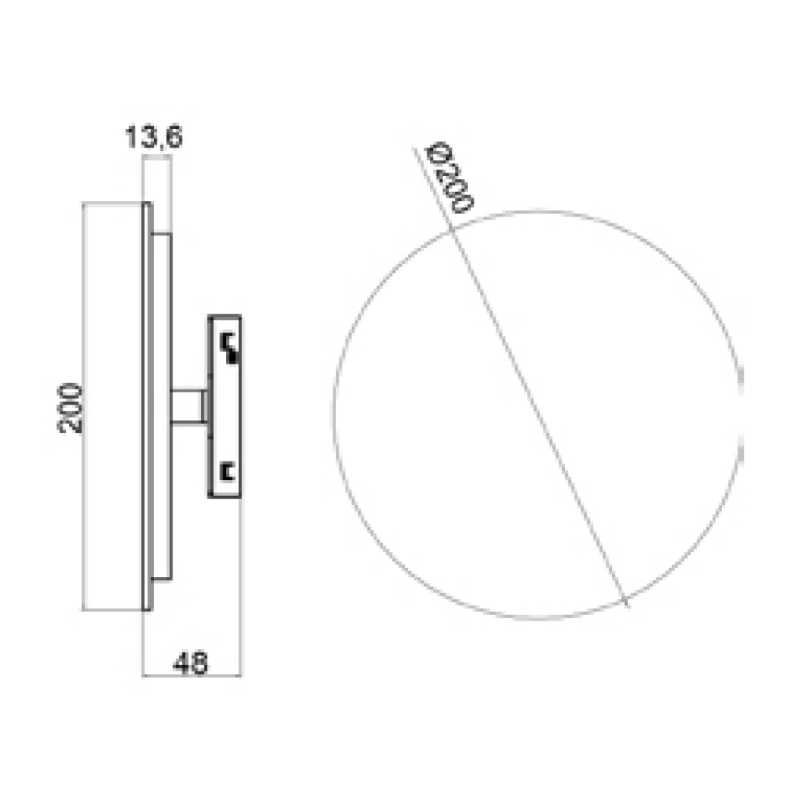

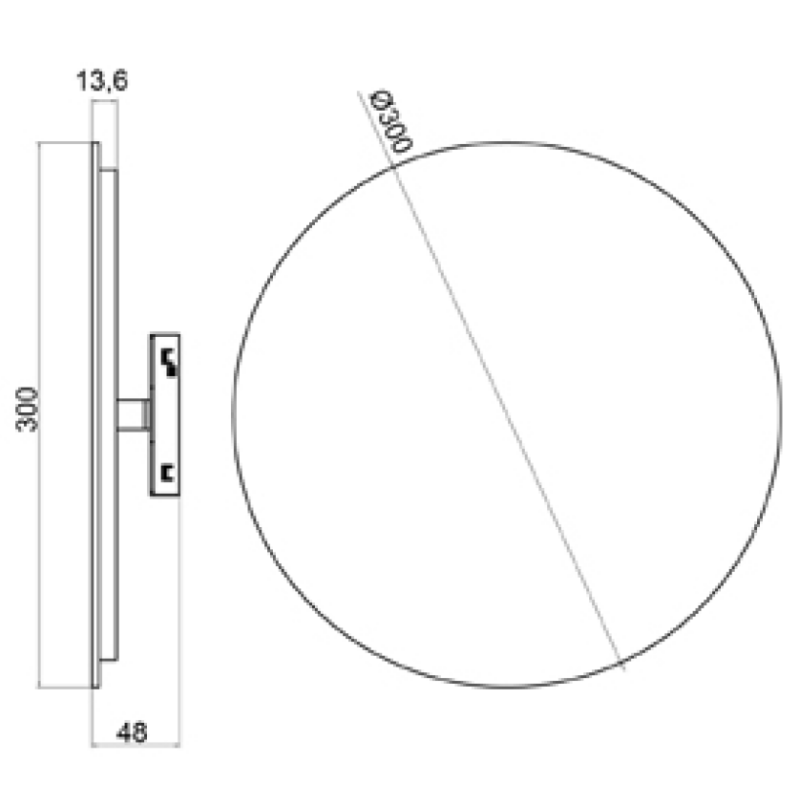

UMWR2007 200mm circular wall sconce drawing showing front and side architectural dimensions for installation.UMWR3010 300mm round architectural wall lamp size schematic detailing the 48V mounting base and 13.6mm depth.

Dimming control

DALI dimming protocol compliance logo for KWT smart lighting systems Triac dimmable LED driver compatibility icon for phase-cut dimmingStandard 0-10V dimming control signal icon for commercial LED fixturesBluetooth mesh smart wireless dimming connectivity logoZigbee 3.0 wireless smart home lighting automation protocol logo

Datasheet

Product datasheet icon - KWT DC48V LED 15w adjustable track spotlight specifications

Application Scenarios
