Product Number: SSM-D
Quick Info:
Input Voltage: DC24V/DC48V
Installation: Surface mounted/Pendant
Materials: Die cast Aluminum

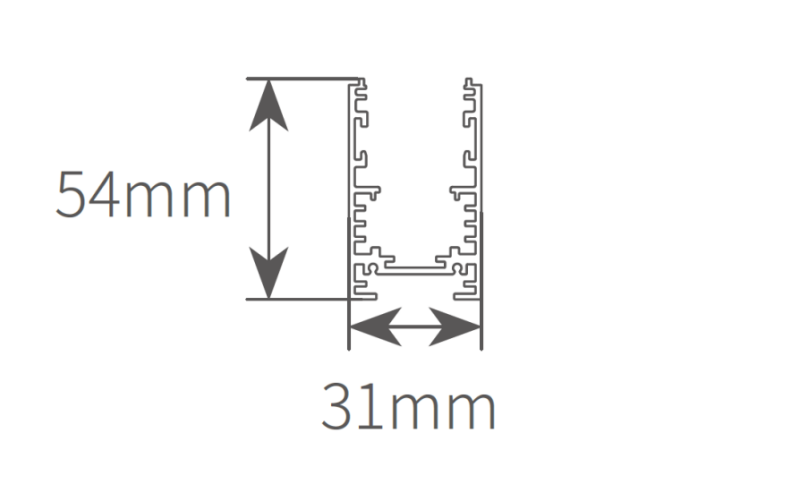

size: L500mm/1000mm/1500mm/2000mm/3000mm*W31*H54mm (Customizable)
Warranty: 3 years
The SSM-D 54x31mm surface mount magnetic track rail is engineered for rapid commercial installations where ceiling grooving is impossible or costly. This 6063-T5 aluminum profile mounts directly onto concrete slabs or existing drywall ceilings without destructive demolition work, significantly shortening renovation timelines for offices and retail stores. Supporting a robust 768W maximum load via 24/48V DC and allowing continuous runs of up to 40 meters, it ensures stable power delivery to multiple magnetic modules. Paired with the dedicated STC3001 to STC3005 connector series, this system effortlessly builds complex L-shaped, T-shaped, and cross-layout lighting grids while maintaining a sleek, space-saving 54x31mm footprint.
Sleek Pendant Suspension for Floating Visual Effects: Utilizing slim steel cables for suspension, the SSP-D hangs freely below the ceiling to create a striking architectural focal point. It perfectly resolves ceiling-mounting constraints and adds a refined, modern elegance to hotel lobbies and villa dining areas.

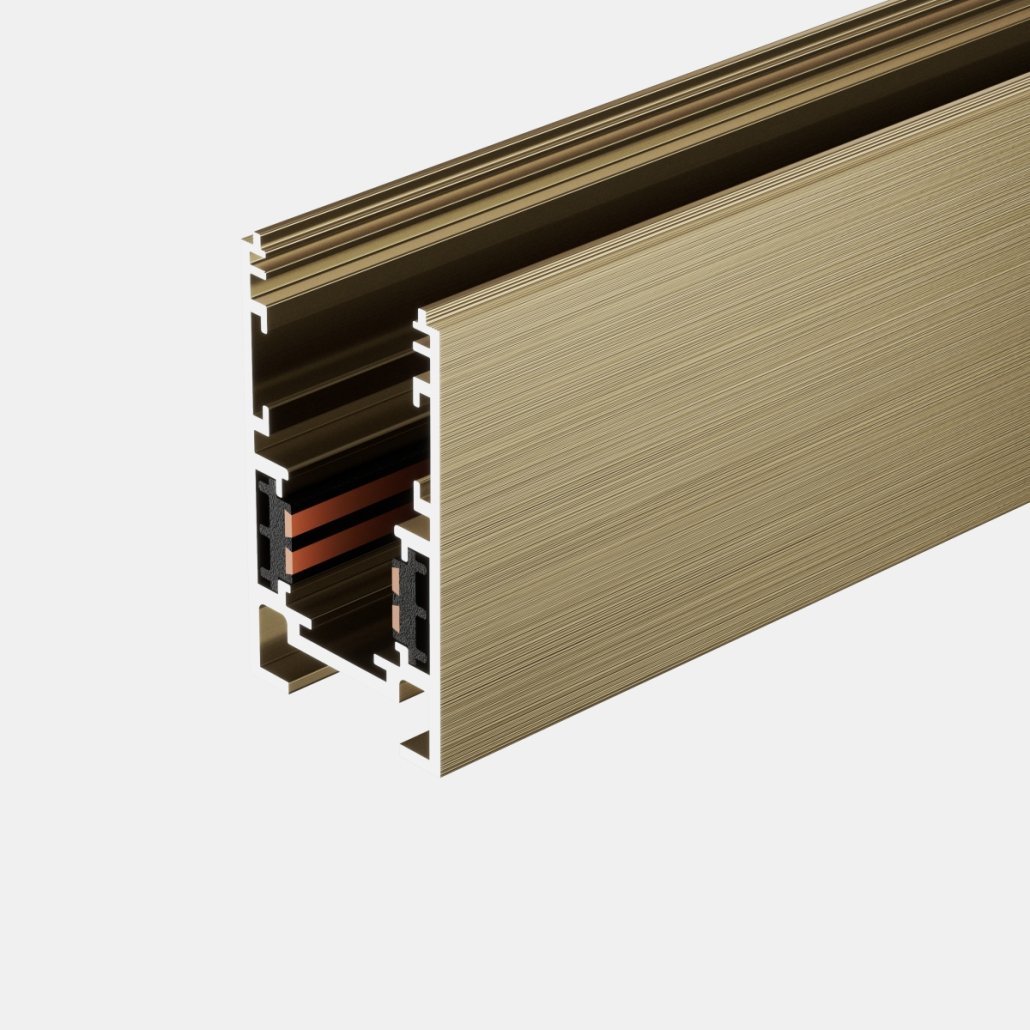

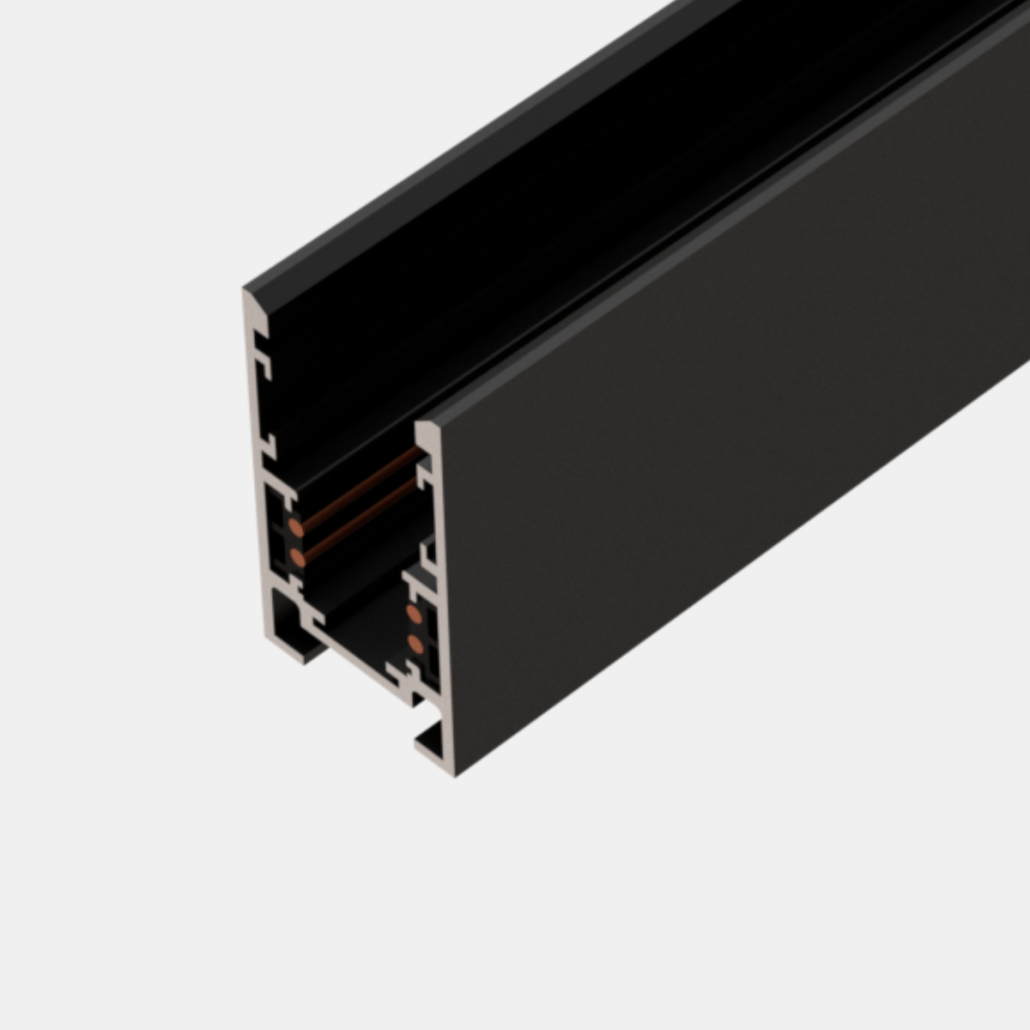

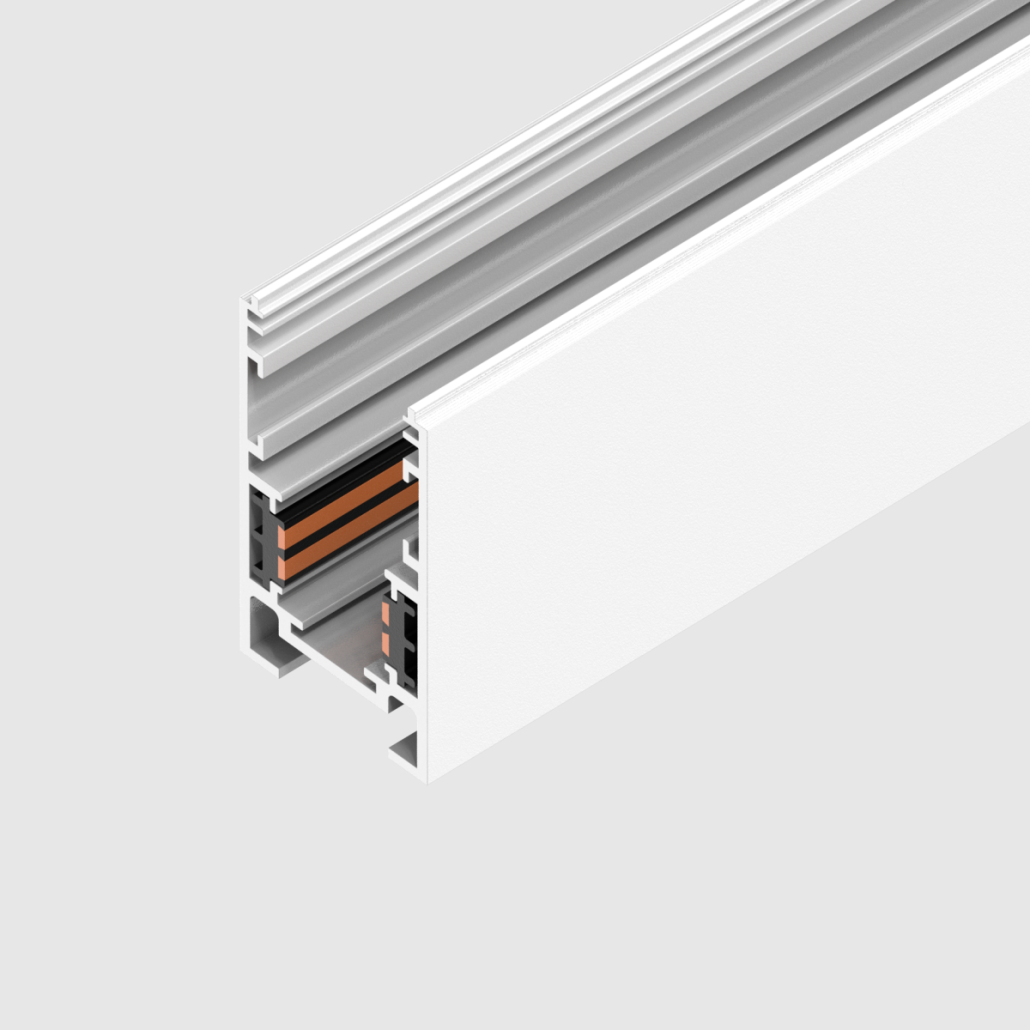

Premium Brushed Copper and Sand Finish Options: Available in sand white, sand black, and a sophisticated brushed copper finish, this track provides architects with premium aesthetic choices to seamlessly match various luxury interior color palettes and decorative styles.
Reliable 768W High-Power System Load: The SSP-D maintains the same industry-leading 768W maximum power capacity on a 24/48V platform, allowing it to confidently power an extensive array of high-wattage magnetic modules without risking performance degradation or voltage drops.
Modular Connectivity for Advanced Grid Layouts: Accompanied by a comprehensive suite of STC3001-3005 connectors, the suspended rail can be easily configured into complex T-shaped, L-shaped, or cross-shaped grids, offering lighting designers ultimate freedom to craft bespoke, multi-directional lighting installations for luxury commercial projects.
Contact us for project pricing or OEM samples.
| SSM-D 54x31mm Surface Mount Magnetic Track Rail | |||
| Product code | SSM-D | ||
| Input Voltage | DC24V, DC48V | ||
| Size | L500mm/1000mm/1500mm/2000mm/3000mm*W31*H54mm (Customizable) | ||
| Materials | Die cast Aluminum | ||
| Finish | Black/White/Brushed copper (Customizable) | ||
| Installation | Surface Mounted/Pendant | ||
| Warranty | 3 years | ||
